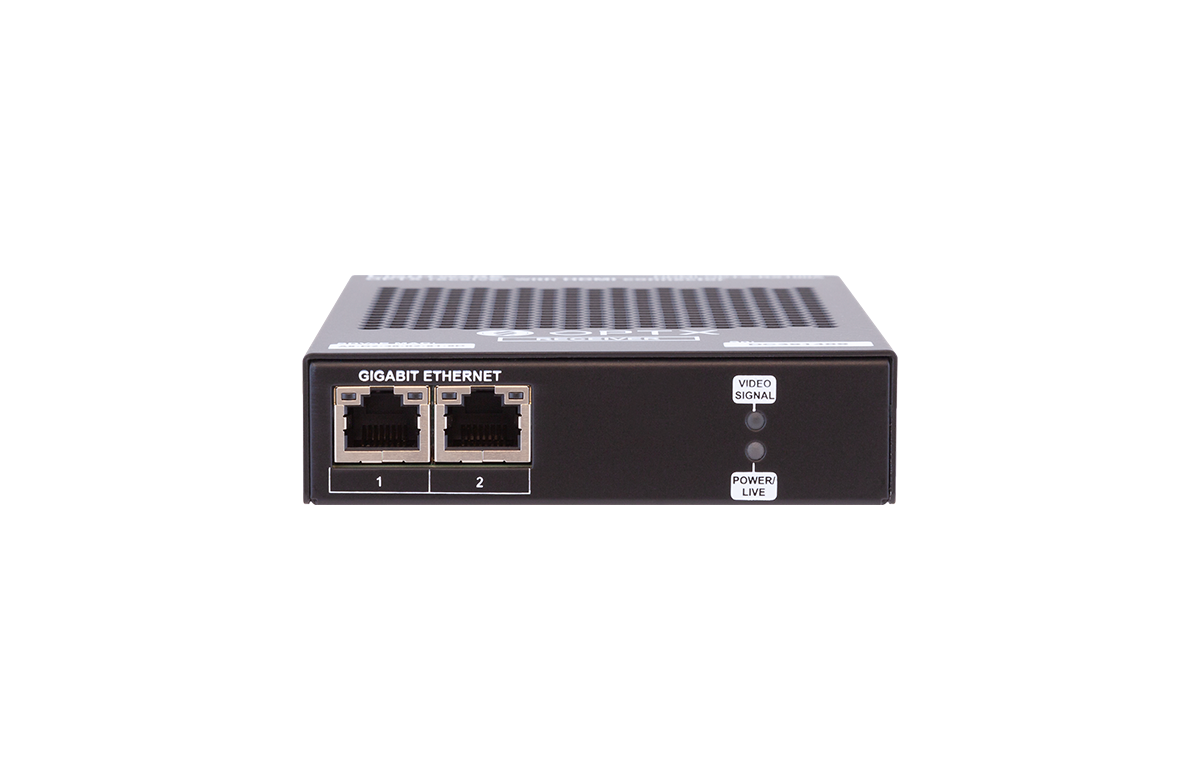

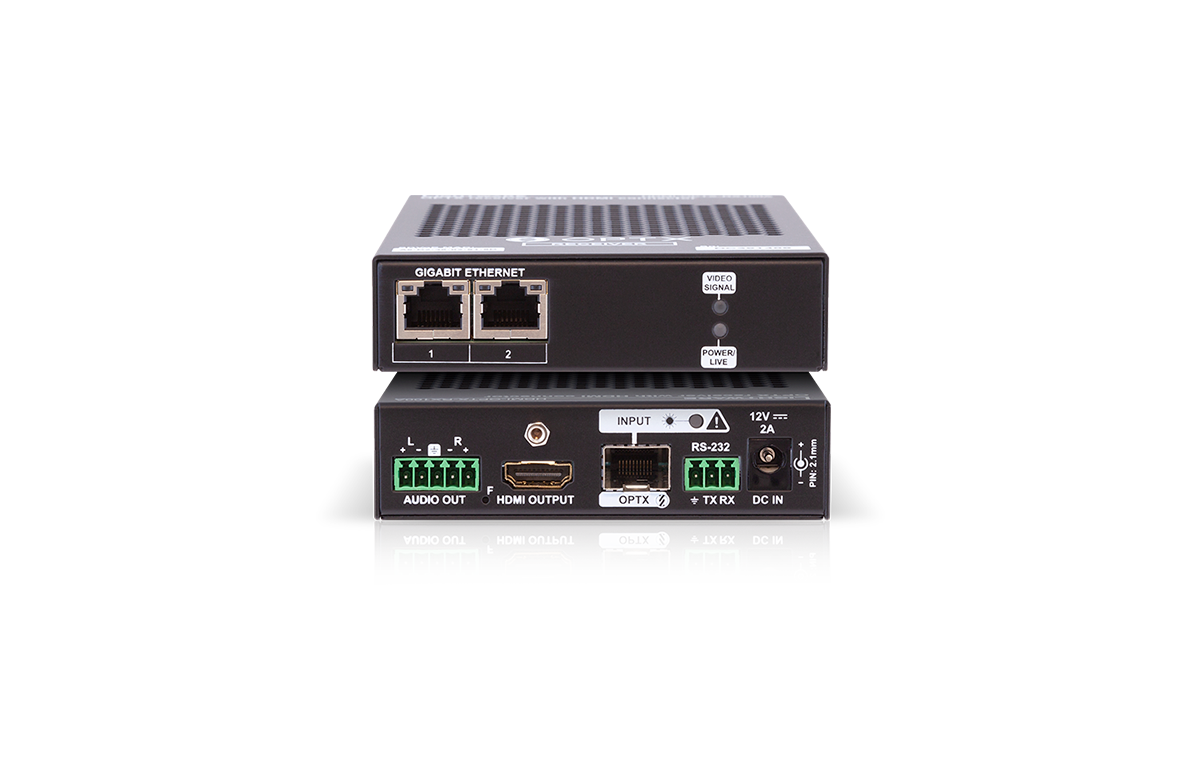

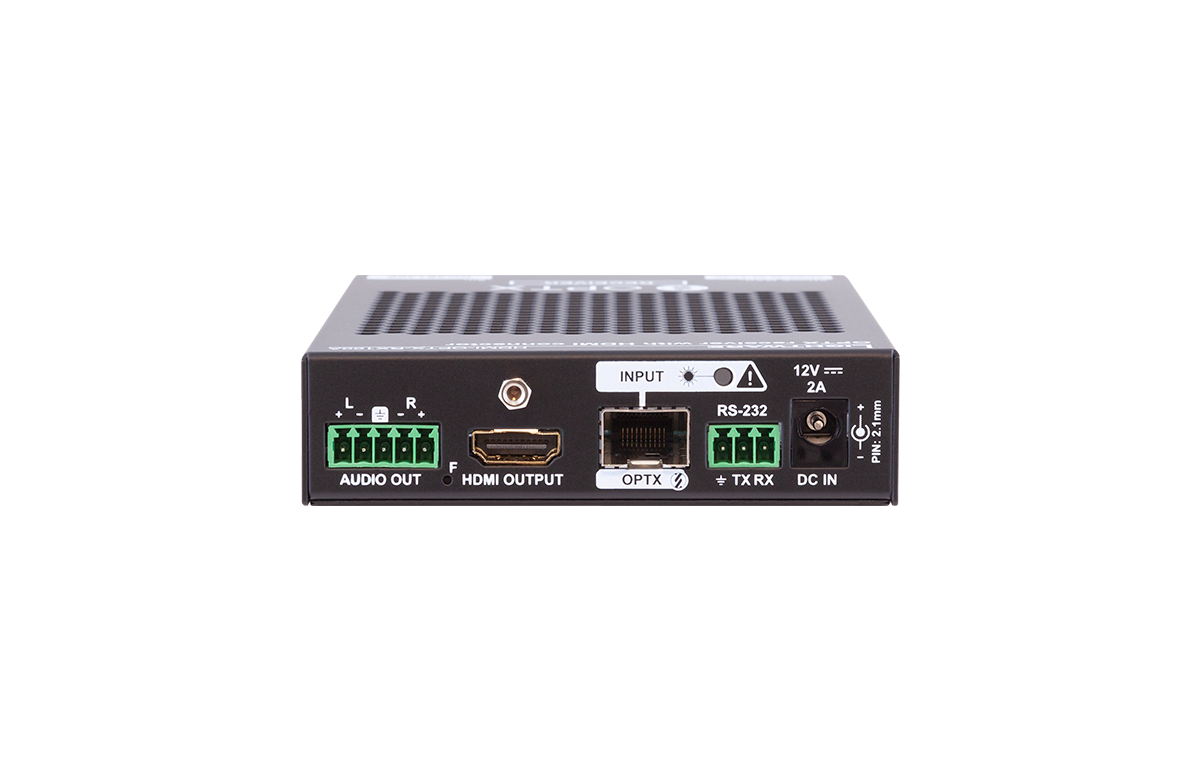

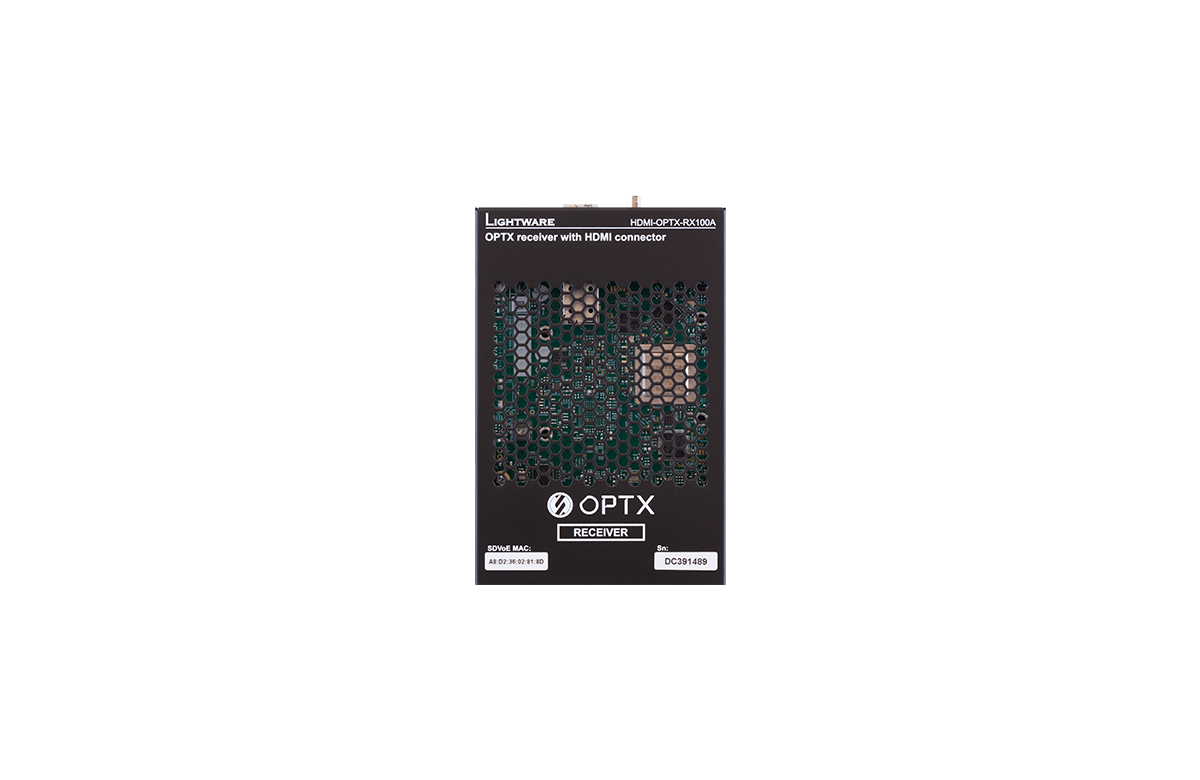

Lightware HDMI-OPTX-RX100A Optical HDMI 2.0 receiver with analog audio output Full 4K HDMI 2.0 and HDCP 2.2 compliant (SFP+ module not included) - 91535002

List $1,963.50

Fiber Optical Extender for HDMI 2.0 Signals

The HDMI-OPTX-RX100A successfully passed and got certified for the Tempest SDIP27 Level B standard, making it suitable for defense and intelligence projects where high levels of reliability is critical.

The HDMI-OPTX-TX100A and HDMI-OPTX-RX100A transmitter and receiver devices are fiber extenders based on SDVoE technology and allow users to extend HDMI 2.0 compliant video, audio and control signals from a single source to a single destination through a fiber optical link.

Features

  • Transmission distance of up to 10km when SM SFP+ module is used
  • SFP+ cage for single mode or multimode SFP+ modules

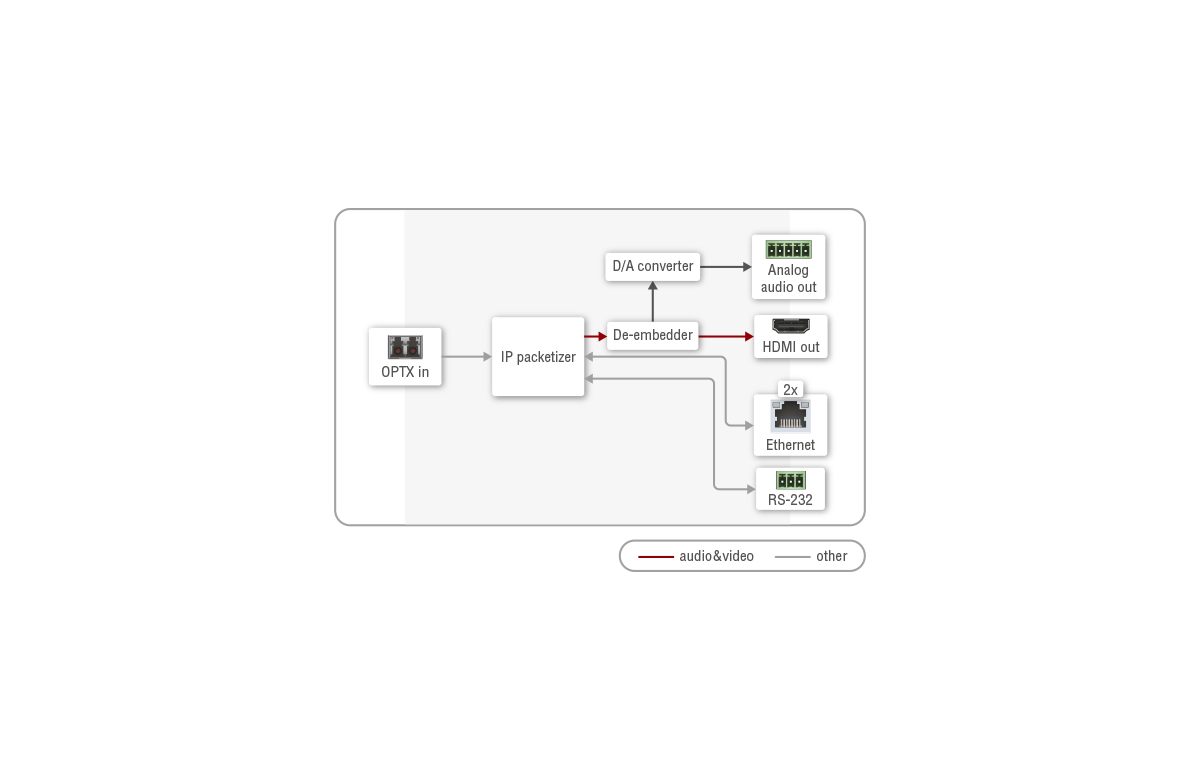

  • Allows for the transmission of HDMI 2.0, embedded audio, Ethernet, and RS-232 data between an extender pair through single mode or multimode fiber
  • Supports HDMI 4K signal formats 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
  • HDR and Low Latency Dolby Vision support

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
HDMI-OPTX-TX100A_RX100A.pdf
