Lightware HDMI-4K De-embedder HDMI 1.4 audio de-embedder with balanced and unbalanced analog audio output. Audio volume control and built-in Advanced EDID Manager with USB control, cable EQ on input, Pixel Accurate Reclocking, HDCP compliant, supporting 3D and 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0). - 91330008

List $948.75

Enhanced Audio and Signal Capabilities

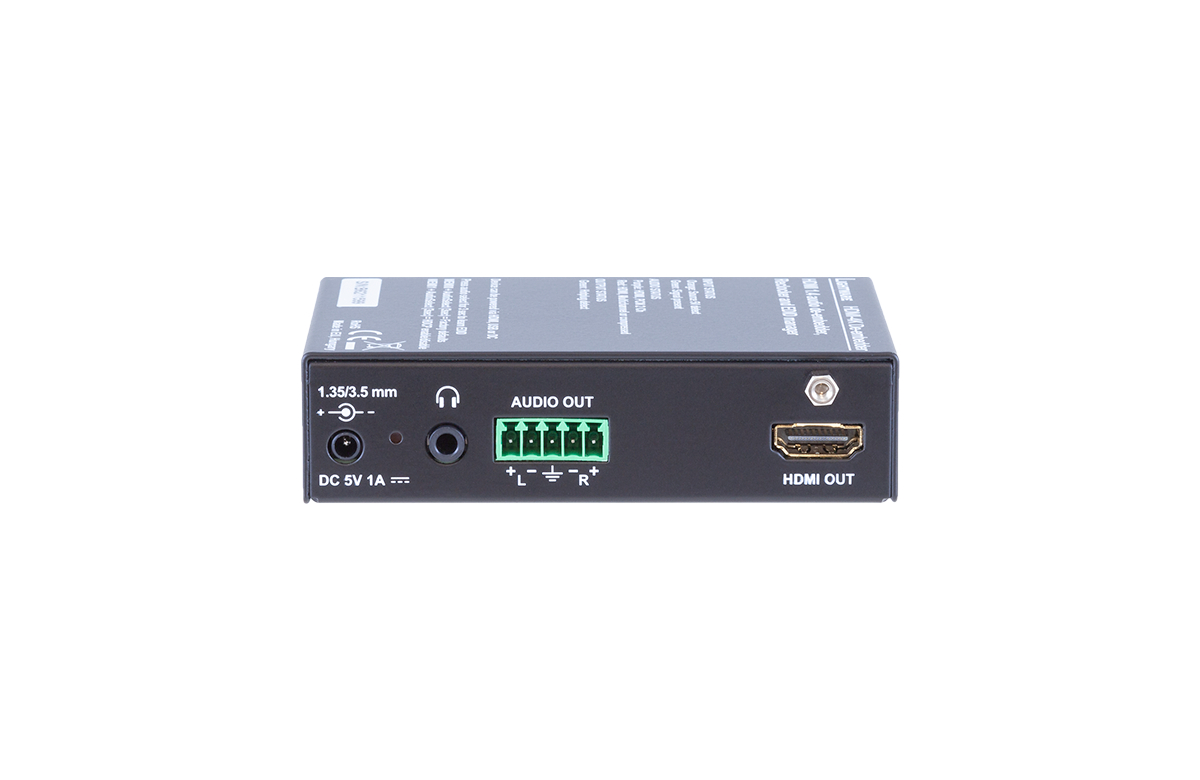

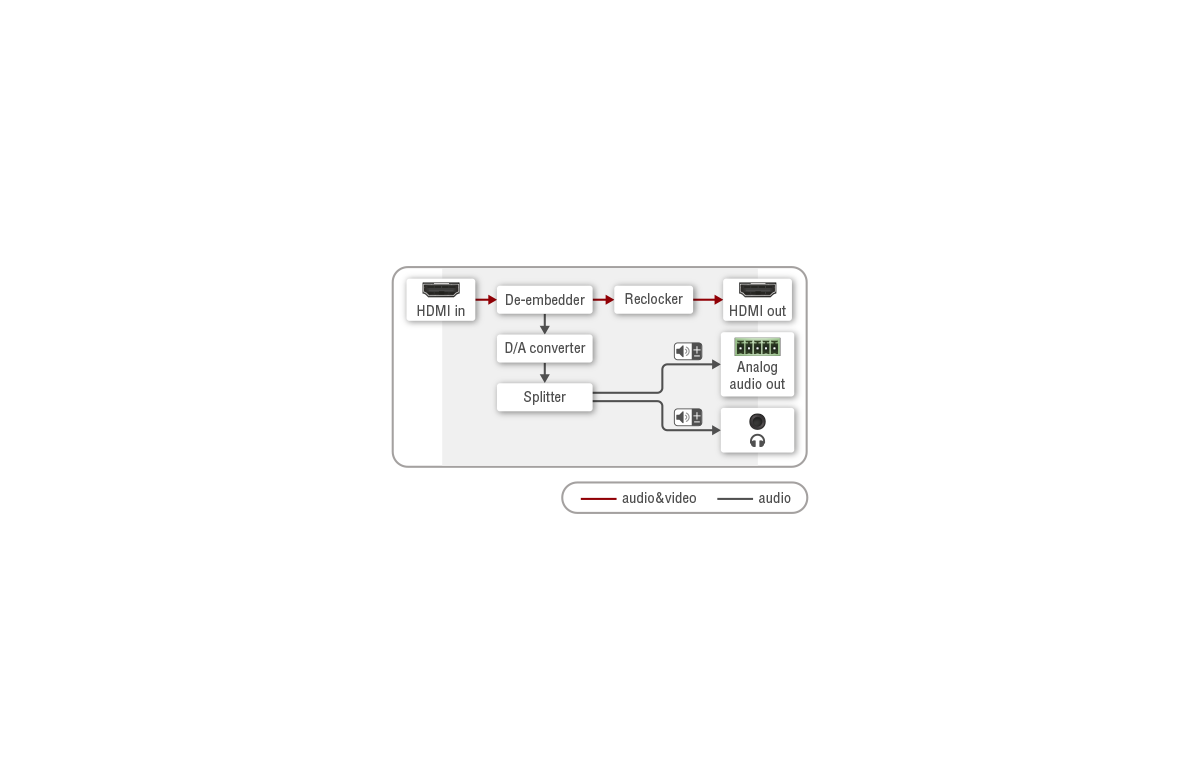

HDMI-4K De-embedder is a multifunctional interface which is capable of de-embedding the PCM audio stream (other HDMI audio formats are passed through). Audio out is a 5‑pole Phoenix socket. The unit also features a 3.5 jack output for headphone monitoring. HDMI-4K De-embedder has abuilt‑in EDID Management and Pixel Accurate Reclocking, supporting DVI and HDMI 1.4 signals with or without HDCP encryption. The output signal is reclocked and stabilized using Lightware Pixel Accurate Reclocking technology to remove jitter caused by long cables or poor quality sources.

Versatile and Reliable Design

HDMI-4K De-embedder can be rack‑mounted or used standalone. The unit is equipped with the highest grade gold plated connectors to ensure reliable connection.

Features

  • Multiple powering options over DC plug
  • Advanced EDID Management
  • Input cable equalization up to 30m at 1080p60Hz (with 24 AWG high quality DVI/HDMI cable)
  • Pixel Accurate Reclocking

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
HDMI-4K_De-embedder_v03.pdf
