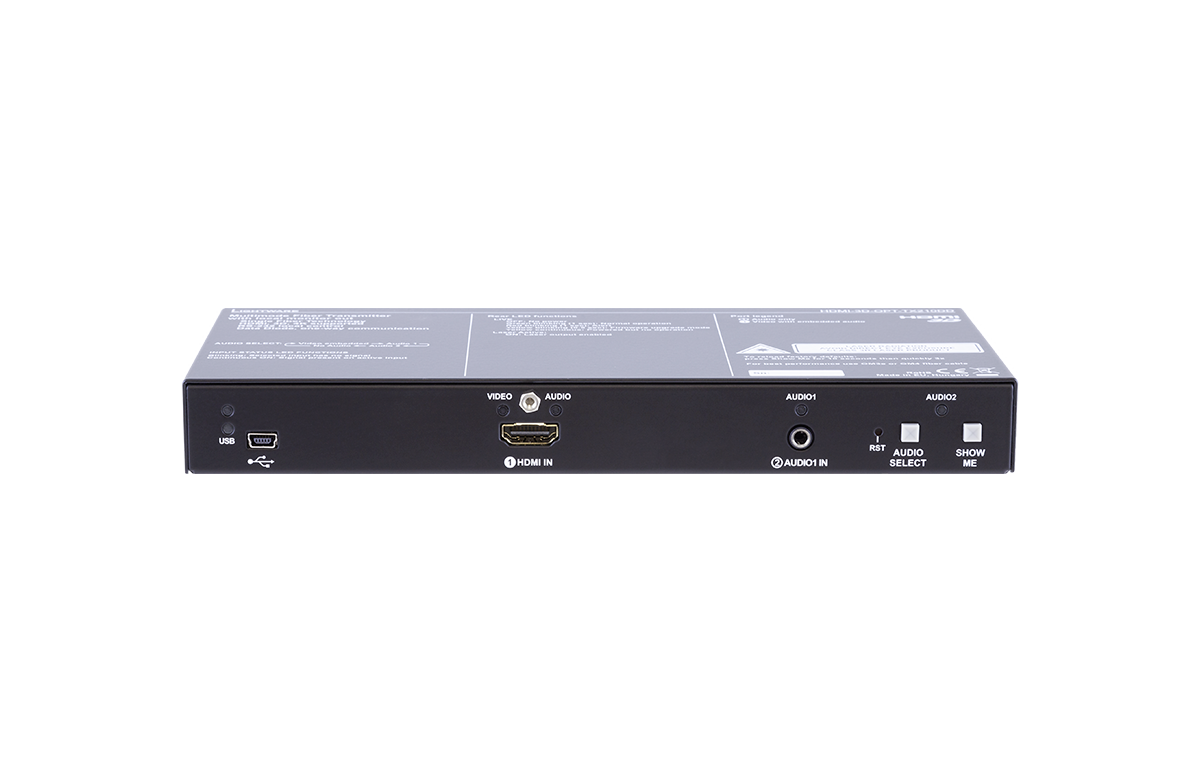

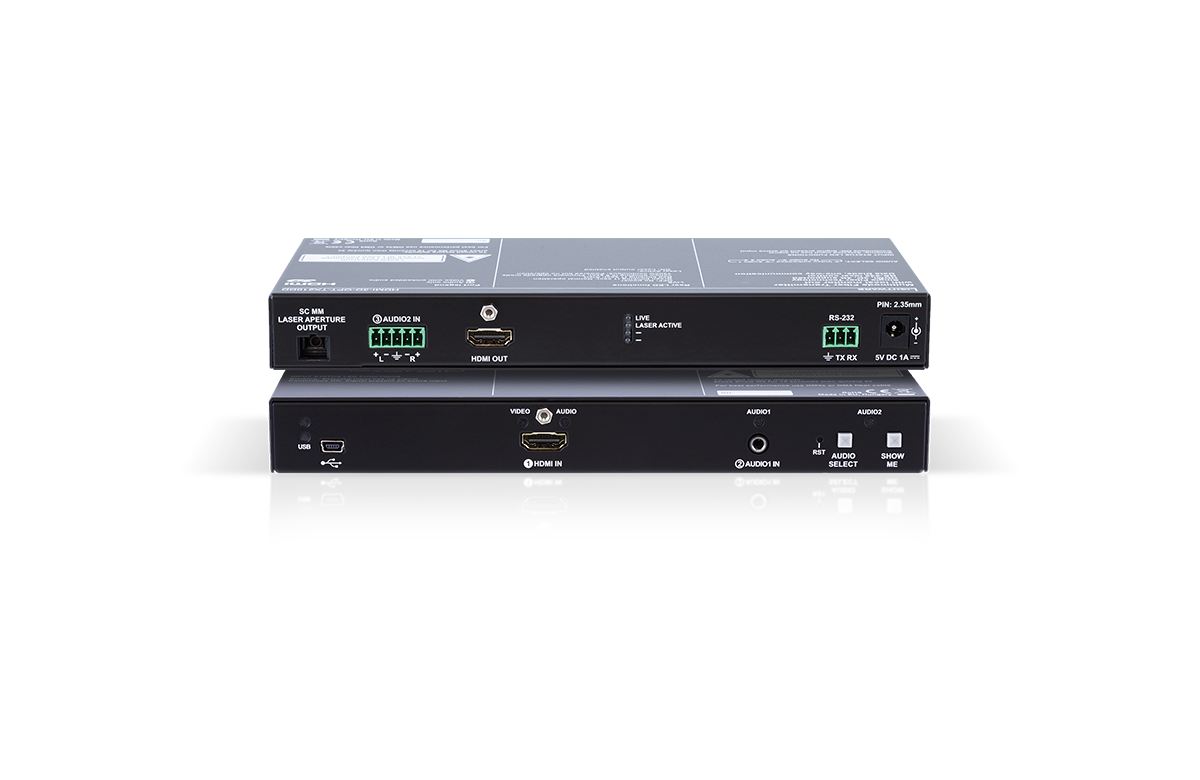

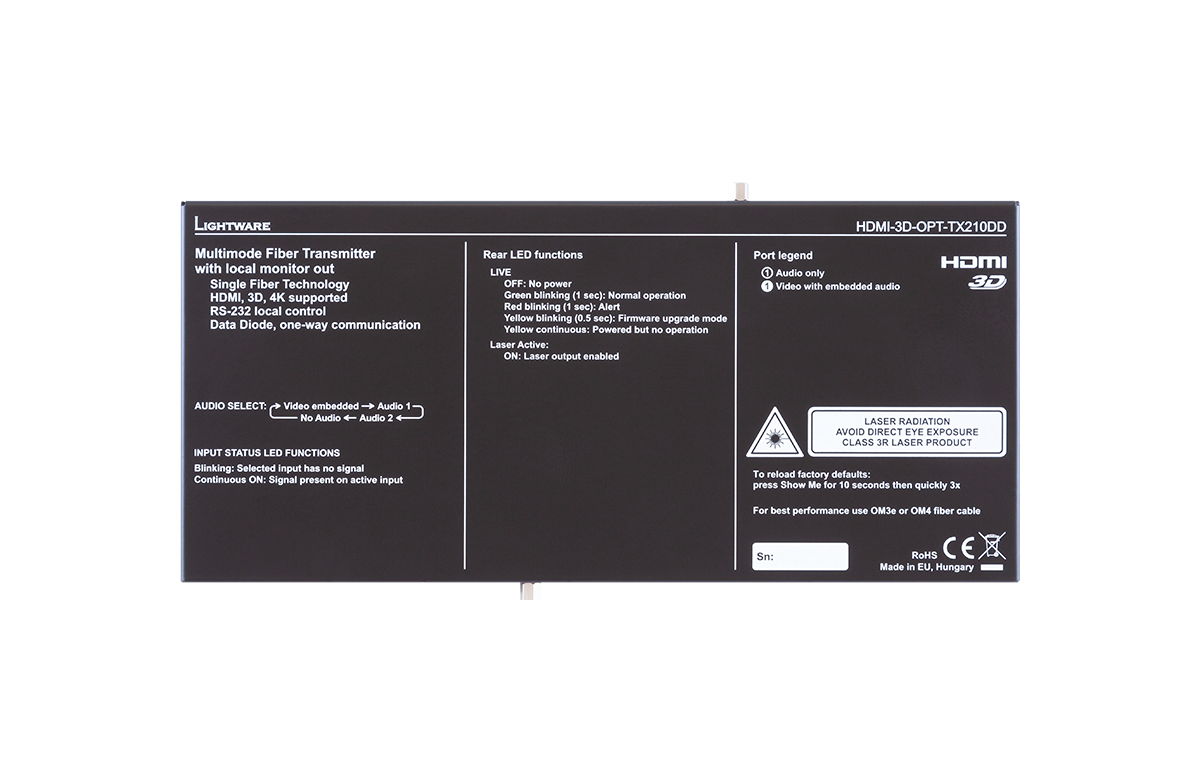

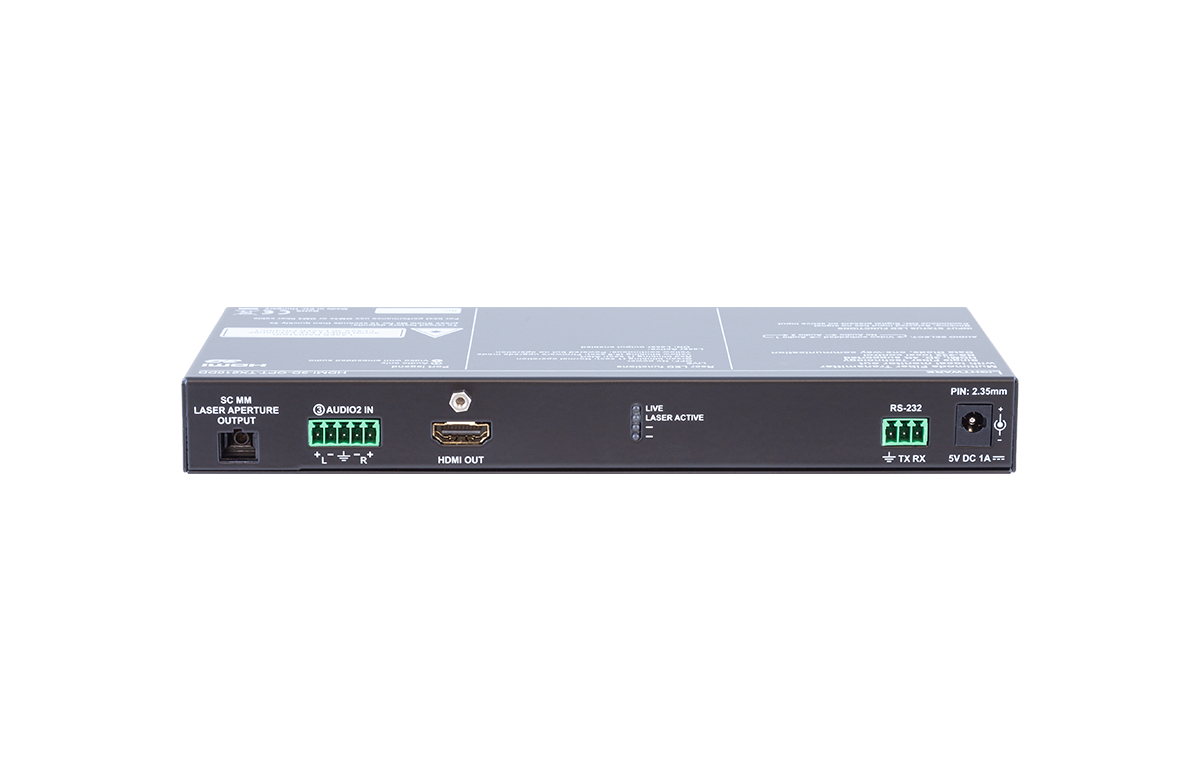

HDMI-3D-OPT-TX210DD extends HDMI 1.4, DVI 1.0 over one multimode fiber and transmits video signal with embedded audio to a distance of up to 2500 meters.

Ensure High-Security AV Transmission

The HDMI-3D-OPT-TX210DD successfully passed and got certified for the Tempest SDIP27 Level B standard, making it suitable for defense and intelligence projects where high levels of reliability is critical.

Extend Signals Over Long Distances

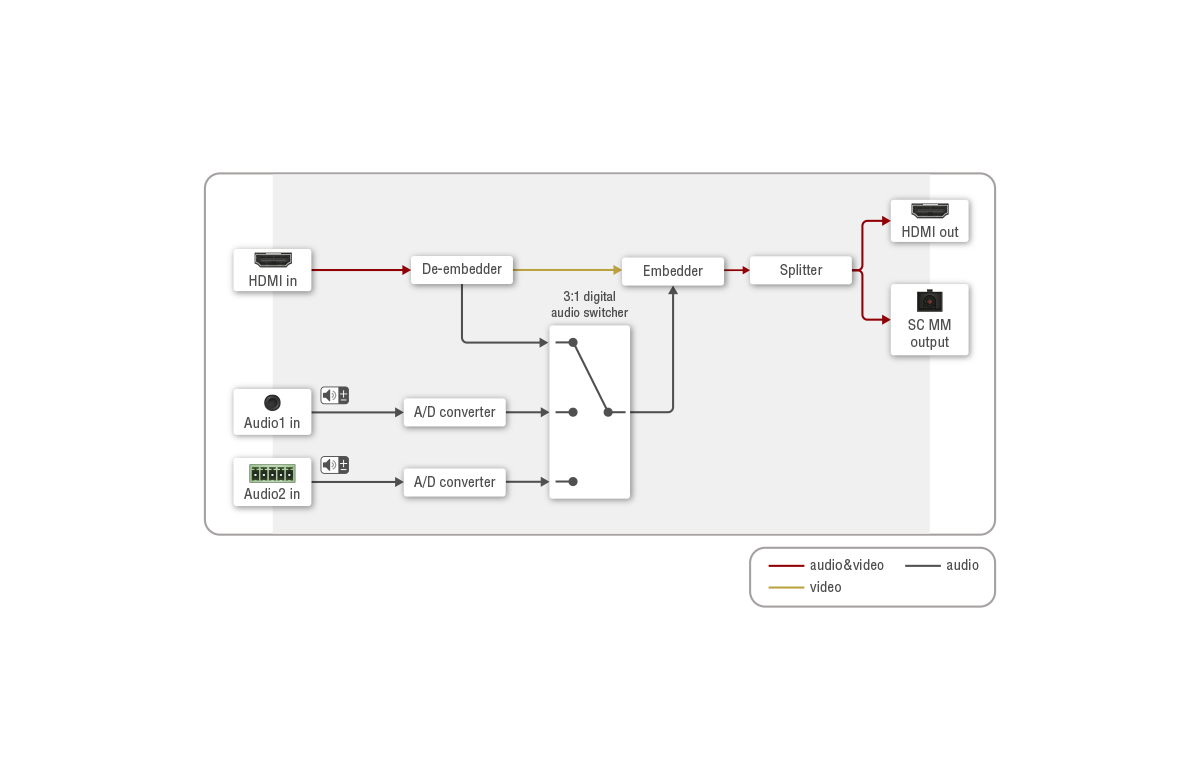

HDMI-3D-OPT-TX210DD transmitter was designed to handle HDMI 1.4 digital video signal and analog stereo audio from local inputs, or HDMI embedded audio from up to eight channel PCM or HBR audio. Analog audio is converted into digital format. The device has a local HDMI video output for monitoring. The video and the embedded audio of the local output is the same as the one transmitted via the OPT link.

Features

• Built-in data diode for enhanced security
• 1920x1080@120Hz/4:4:4 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
• Adjustable analog audio settings (volume, gain, balance)
• Single Fiber Technology
• Audio embedding from 3.5mm jack or 5-pole balanced Phoenix connector
• HDMI 1.4 and DVI 1.0 compliant
• Local monitor output on transmitter
