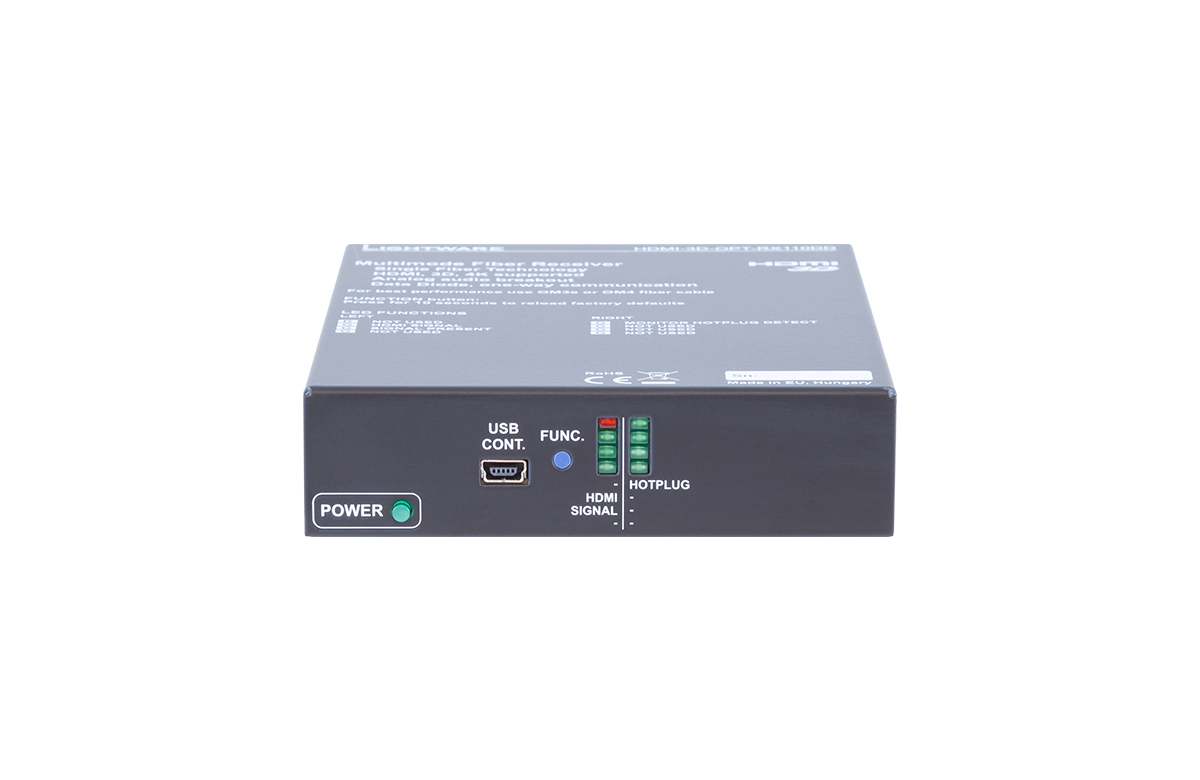

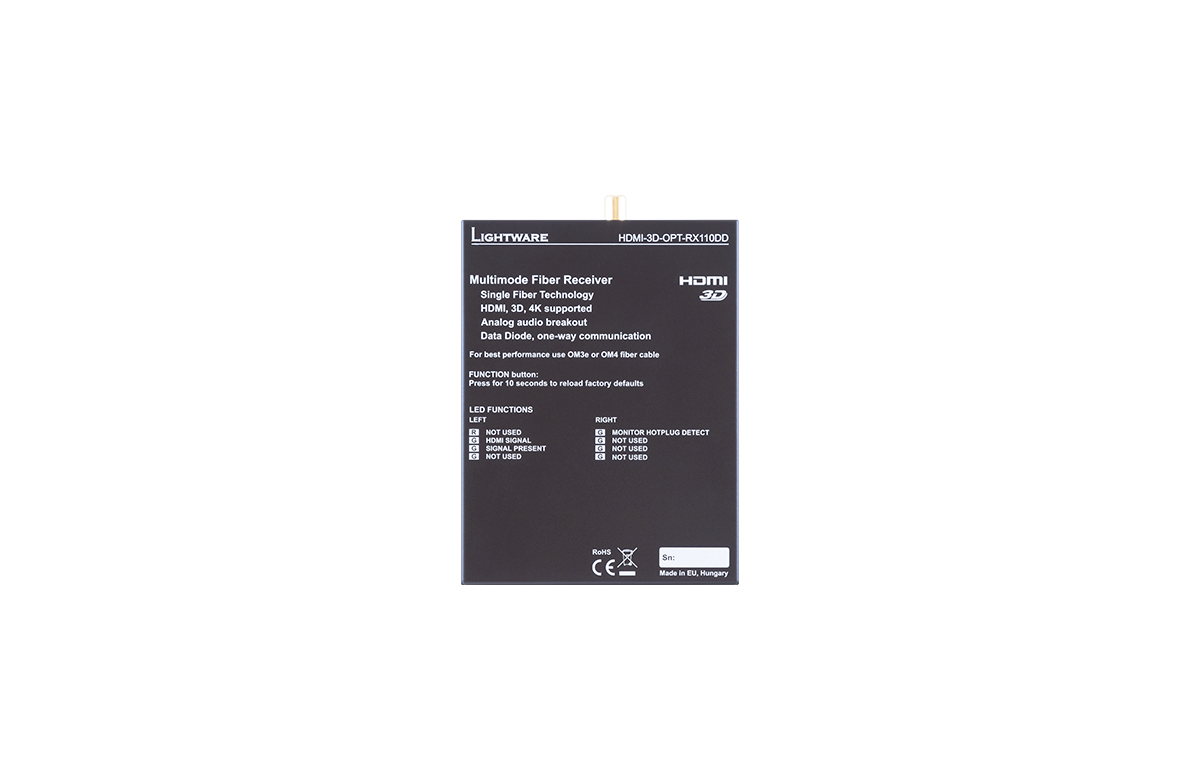

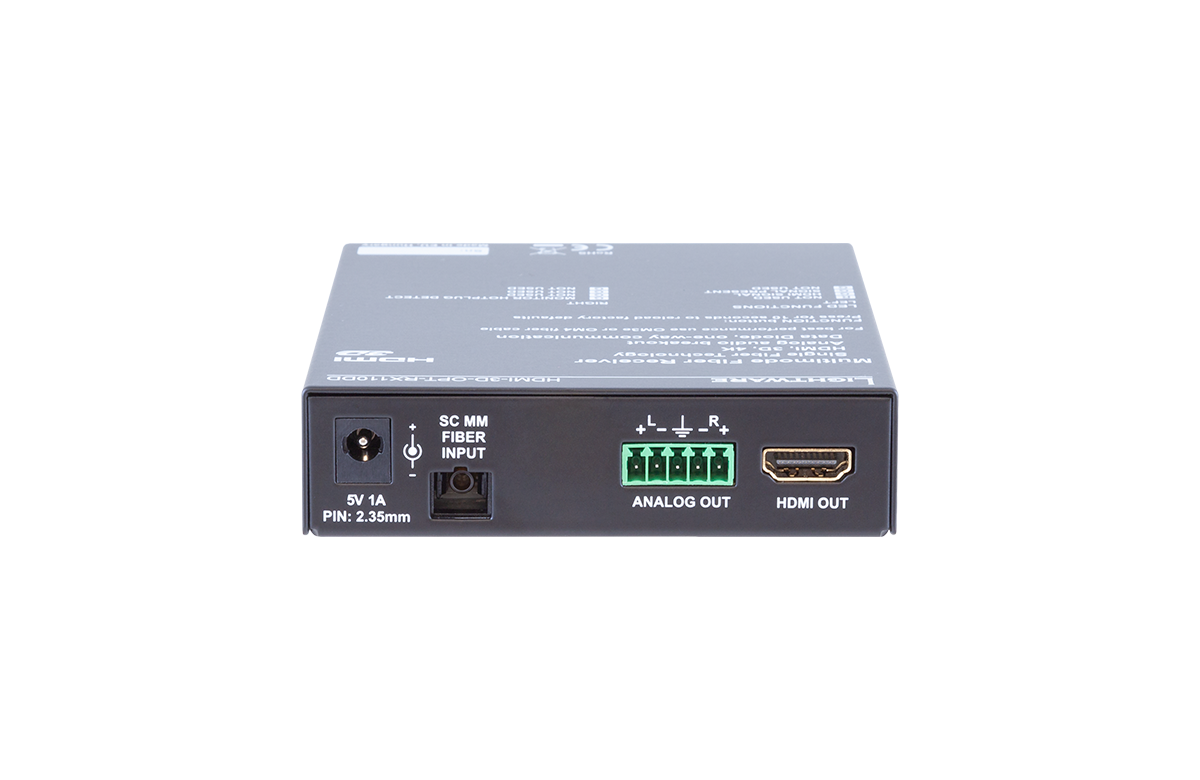

HDMI-3D-OPT-RX110DD HDMI 1.4 and DVI 1.0 compatible optical receiver without return channel for receiving video and embedded audio up to a distance of 2500 meters over one multimode fiber - 91510034

List $3,399.00

Ensure High-Security AV Transmission

The HDMI-3D-OPT-RX110DD successfully passed and got certified for the Tempest SDIP27 Level B standard, making it suitable for defense and intelligence projects where high levels of reliability is critical.

Extend 4K Video

HDMI-3D-OPT-RX110DD optical receiver provides extension of uncompressed 4K@30Hz video and audio over one multimode fiber for up to 2500 m. The unit offers an analog audio output, and works at all standard AV resolutions.

Features

  • Built-in data diode for enhanced security
  • 1920x1080@120Hz 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • Adjustable analog audio settings (volume, gain, balance)
  • Single Fiber Technology
  • Audio embedding from 3.5mm jack or 5-pole balanced Phoenix connector
  • HDMI 1.4 and DVI 1.0 compliant
  • Local monitor output on transmitter

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
HDMI-3D-OPT-RX110DD_1.pdf

Accessories
