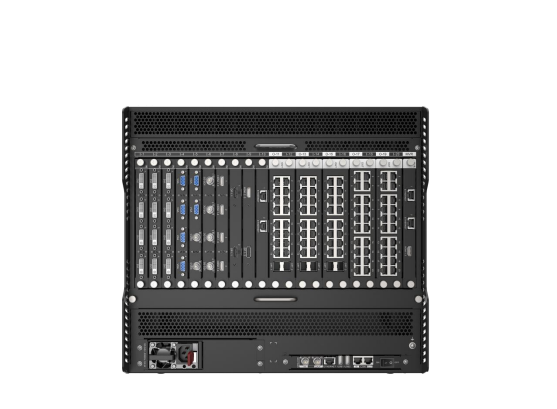

The NovaStar H Series H9 Master Case is the flagship, high-capacity 9U modular video wall splicer and controller chassis. Designed for massive-scale LED installations, the H9 serves as the central processing "brain," offering the highest slot density and pixel loading capacity in the H-Series lineup.

As a Master Case, this unit provides the frame, power, and cross-point processing backplane. It allows system integrators to custom-build a powerhouse controller by populating its numerous slots with a mix of hot-swappable input and output cards tailored for command centers, stadiums, and high-end broadcast environments.

The H9 Master Case is engineered for mission-critical reliability and unmatched visual performance, consolidating multiple processors and sending cards into one streamlined 9U enclosure.

• Massive Slot Density: A 9U rackmount chassis featuring 15 input slots and 5 output slots (or up to 10 output slots depending on configuration), offering the ultimate in signal flexibility.
• Extreme Loading Capacity: Supports 65 million pixels (standard) or up to 130 million pixels (with maximum fiber output card configurations).
• True All-in-One Solution: Combines professional video splicing, scaling, and LED control into a single unit, significantly reducing rack space and cabling complexity.
• Superior Layering Capabilities: Supports up to 16 layers per output card (up to 80–160 layers total depending on card setup), enabling complex multi-window layouts and intricate visual overlays.
• Cross-Platform Web Control: Utilizes a Browser/Server (B/S) architecture, allowing for full system configuration via any web browser on Windows, Mac, iOS, or Android—no software installation required.
• High-Fidelity Visuals: Fully supports 4K input/output, 10-bit color depth, HDR10/HLG, and high-frame-rate processing for smooth, cinematic quality on fine-pitch LEDs.
• Mission-Critical Reliability: Features a hot-swappable design for all cards and supports dual redundant power supplies to ensure 24/7 continuous operation without downtime.
• Advanced Monitoring: Built-in real-time hardware status tracking for fans, temperature, and voltage, with automatic fault alarms.

Technical Specifications

Chassis Size: 9U Rackmount Chassis
Input Slots: 15 Slots (Cards sold separately)
Output Slots: 5 to 10 Slots (Configuration dependent)
Max Pixel Capacity: 65M (Standard) / 130M (Max)
Max Layers: 16 per card / 80+ Total
Control Connectivity: Dual RJ45 (Control & Preview), USB, Genlock
Power Supply: 100–240V AC (Redundant Optional)

Note: The H9 Master Case is the chassis and processing engine only. Input and output cards must be purchased separately to facilitate video signals.
