Switch Audio, Video, and USB with Ease

Lightware's revolutionary GEMINI GVN 1Gb AV-over-IP extender family, where scalability, flexibility, and rapid deployment take center stage. Designed to meet the demands of modern audiovisual environments, the GEMINI GVN is a virtual matrix system that seamlessly switches audio, video, and USB transmission with unparalleled ease.

Optimize Performance

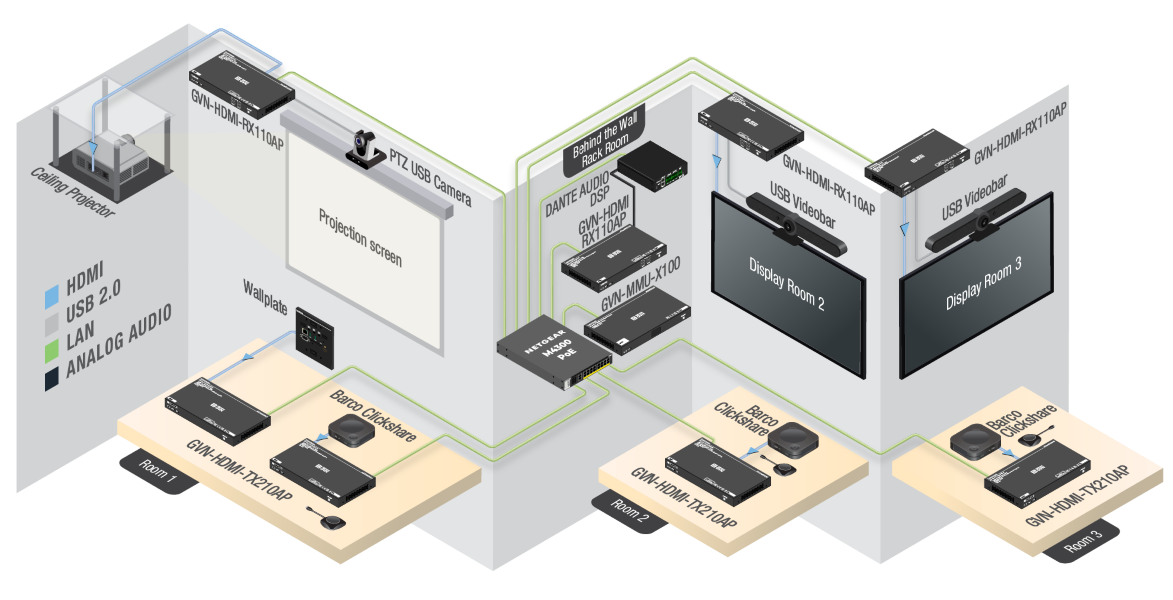

At the heart of the GEMINI GVN system is the Matrix Management Unit (MMU) device, providing full functionality from a centralized control point, eliminating the need for individual endpoint configurations. With seamless switching capabilities, users can effortlessly manage their audiovisual setup for optimal performance.

Extend Video for Maximum Flexibility

Equipped with Lightware's Advanced EDID Management system, the GEMINI GVN ensures that the decoders are capable of scaling HDMI 2.0 video signals up to a maximum resolution of 4K UHD @ 60 Hz either on CAT (up to 100m) or on fiber optics (single mode up to 80km, multimode up to 550m) with HDR, HDR+, and Dolby Vision support.

Boost Connectivity

Supporting RS-232 control channel, the GEMINI GVN offers enhanced control options for a seamless user experience. The built-in USB ports support K+M functionality and can handle USB 2.0 touch screen, webcam, mass storage, further enhancing connectivity and versatility.

Ensure Secure Content Transmission

Compliant with HDCP standards, the GEMINI GVN guarantees secure content transmission. With support for the DHCP network management protocol, configuration and management become effortless, simplifying system integration.

Features

• Supports PoE PD (IEEE 802.3af)
• HDMI 2.0 input up to 4K@60Hz 4:4:4 resolution
• HDCP 2.2 support
• Visually Lossless Video Codec (proprietary codec based on JPEG2000)
• Local HDMI 2.0 output up to 4K@60Hz 4:4:4 resolution
• All audio formats supported by the HDMI 2.0 standard are supported up to 7.1-channels, LPCM, compressed audio and High-Bitrate audio (e.g. DTS-X, Dolby Digital, Dolby Atmos)
• Analog audio support (LPCM stereo) with selectable direction (input or output)
• Offers a RS-232 port
• Support the distance up to 100m (328ft) between the transmitter endpoint and Network Switch (Cat5e)
• Fiber connection supported with standard SFP connector (the optical module is not part of the product)
• Supports full USB2.0 over IP
• Supports USB K+M (keyboard and mouse) over IP

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]
