Professional And Efficient 4K All-In-One Decoding Card

FD-360 Multi-functional Decoding Card is an all-in-one video processing solution that integrates decoding, previewing, processing, and output capabilities. It supports a wide range of network video streaming formats, including NDI High Bandwidth, NDI HX2/HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP, delivering synchronized audio and video output via 3G-SDI and HDMI interfaces. The FD-360 can decode up to 12 channels of 1080p60 video simultaneously, supporting flexible multi-screen layout with real-time preview, switching, and output. FD-360 seamlessly integrates with the RF02, enabling unified management through RF02 for easy operation and efficient maintenance.

Outstanding AV Decoding Performance

Advanced Video Decoding

The FD-360 delivers exceptional decoding capabilities for IP video streams, supporting mainstream encoding formats such as ​HEVC (H.265)​, ​AVC (H.264)​, and ​SpeedHQ (NDI High Bandwidth)​. It seamlessly handles ​4K Ultra HD video decoding​ and enables ​multi-stream simultaneous decoding and output, ensuring smooth and efficient processing of high-resolution content .

Versatile Audio Decoding

FD-360 offers a wide range of audio output options, supporting embedded SDI/HDMI or Type-A expanded analog audio interface output. It is also compatible with various mainstream audio formats, including AAC, MPEG-4, MPEG-2, G.711, Opus, and LPC.

With powerful multi-channel audio mixing and gain adjustment, users can easily switch between sources, mix multiple audio channels, and fine-tune output gain levels—ensuring accurate, high-quality audio for any production environment.

Comprehensive Streaming Protocol Support

FD-360 is fully compatible with a wide range of streaming protocols, such as NDI High Bandwidth/NDI HX2/NDI HX3/ SRT/ RTMP/ RTMPS/ HLS/ TS over UDP/ RTP/ RTSP, ensuring seamless integration into any video production environment. This extensive protocol support provides maximum flexibility for live streaming, broadcasting, and IP-based video workflows.

Flexible Layout and Overlay Features for Easy Custom Output

Fully Customizable Display Layouts

FD-360 offers complete flexibility in output screen configurations. Users can choose from single-screen, split-screen, or picture-in-picture modes and customize layouts with anywhere from 1 to 16 video windows with fully adjustable parameters—including position, size, and dimensions. Custom layouts can be saved as templates, allowing you to easily recall and reuse specific multi-screen configurations for future sessions.

Personalized Overlay Templates for Unique Visuals

With the overlay editor, FD-360 lets you create rich, personalized output screens. Design custom overlays using images, text, colours, and graphical elements such as logos, borders, or combined image-text layers. These templates can be applied directly to your video output, delivering a more dynamic, branded, and engaging visual experience.

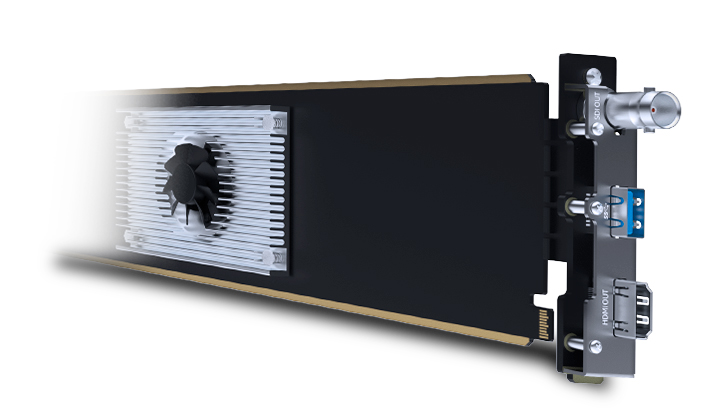

Multiple Interfaces For Flexible AV Outputs

FD-360 supports synchronous decoding and output of identical or distinct video feeds via both 3G-SDI and HDMI interfaces. The HDMI output delivers resolutions up to 3840×2160@60Hz, while the SDI output reaches up to 1920×1080@60Hz. Parameters such as output resolution, progressive/interlaced scanning, and frame rate are fully adjustable to accommodate your specific requirements.

Moreover, the FD-360 is equipped with a TYPE-A interface, enabling expandable analog audio interfaces for audio de-embedding output.
