EXT3-UE-R USB 2.0 and Ethernet PoC Receiver - Product - Midwich

4K60 4:2:0 USB-C Transmitter over Long-Reach HDBT 1.0

• 4–port remote USB devices
• Ethernet and audio extension
• Up to 100m (330ft) CAT extension reach
• Two–way PoC powering

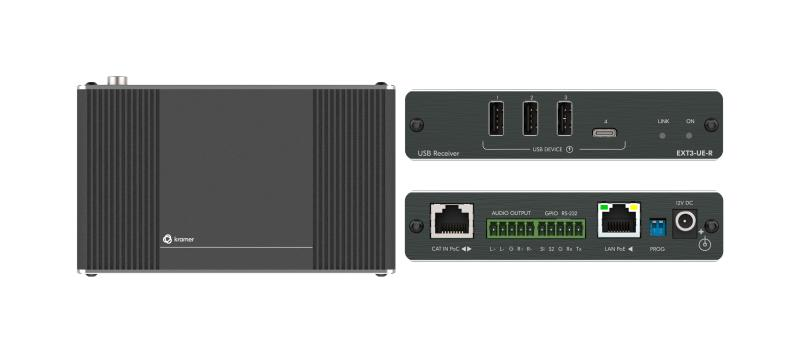

EXT3−UE−R is a comprehensive 2−way powering USB 2.0 receiver over extended−reach twisted pair CAT cable. The receiver converts the transmitted CAT signal into USB 2.0, Ethernet, RS−232 and audio signals.

•  Comprehensive USB Extension — Plug & play USB over CAT receiver for connecting a remote USB host is to the locally connected USB peripherals, employing either interrupt, bulk or isochronous USB 2.0 standard data transfer communication.
•  Simple USB Peripheral Control — Remote IP–driven or serial control, via the CAT–extended control signals of the connected USB peripherals, such as PTZ cameras and soundbars by a remote LAN–connected control system (for example, Kramer Control).
•  Flexible USB Connectivity — Wide Variety of USB peripheral and dual–role devices can be extended including cameras, touch screens, smart boards, hard drives, game controllers, audio devices, printers, scanners, or HID (Human Interface Devices) devices such as a mouse or keyboard.
•  USB Peripherals Charging — Fast USB charging of connected USB peripherals when the receiver is powered by a power supply, and standard USB charging when the receiver is powered by the transmitter via CAT.
•  Bidirectional Ethernet Extension — LAN interface data flows in both directions, allowing network data transmission and connected–devices control.
•  Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
•  Audio Extension — The transmitted analog audio line signal from the remote audio source is connected to the locally connected audio playing device.
•  Comprehensive and Cost–effective Management — Local panel indication LEDs facilitate easy local maintenance and troubleshooting. Remote management of connected triggerable I/O devices (such as sensors), via user–friendly embedded web pages and optional whole site management system, ensure lasting and field proven deployment.
•  Easy Installation — Single twisted–pair cable for carrying signal and power wiring. Compact TOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
