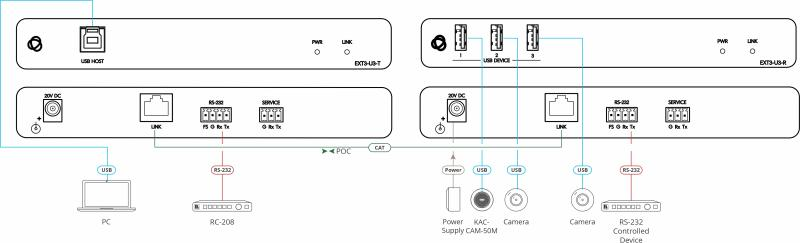

EXT3−U3−T/EXT3−U3−R is a comprehensive, extended−reach CAT extender solution for USB 3.2 Gen1 (5 GBps) communication. The extender supports both USB3.2 Gen1 devices and legacy USB2.0/1.1 devices. In addition to USB3, RS232 signals and FSYNC video signal (for camera frame synchronization) are extended.

The EXT3−U3−T transmitter unit converts the USB3 host side signal into a CATx signal format based on HDBaseT USB.

The EXT3−U3−R receiver unit converts the CATx signal back into a USB3 device side signal and functions as a USB hub for up to 3 devices.

The extender operates seamlessly as a plug & play device with no need for any prior configuration. It supports a wide Variety of USB peripheral devices supporting all USB transaction modes including interrupt, bulk and isochronous and is especially suitable for high throughput video streaming USB devices such as cameras and capture devices.

EXT3−U3−T/R uses power delivery over the CATx cable requiring only one side to facilitate a power source.

These devices may be sold together as an extender bundle or separately (paired with other HDBaseT USB3 (VS6320 based) products)
