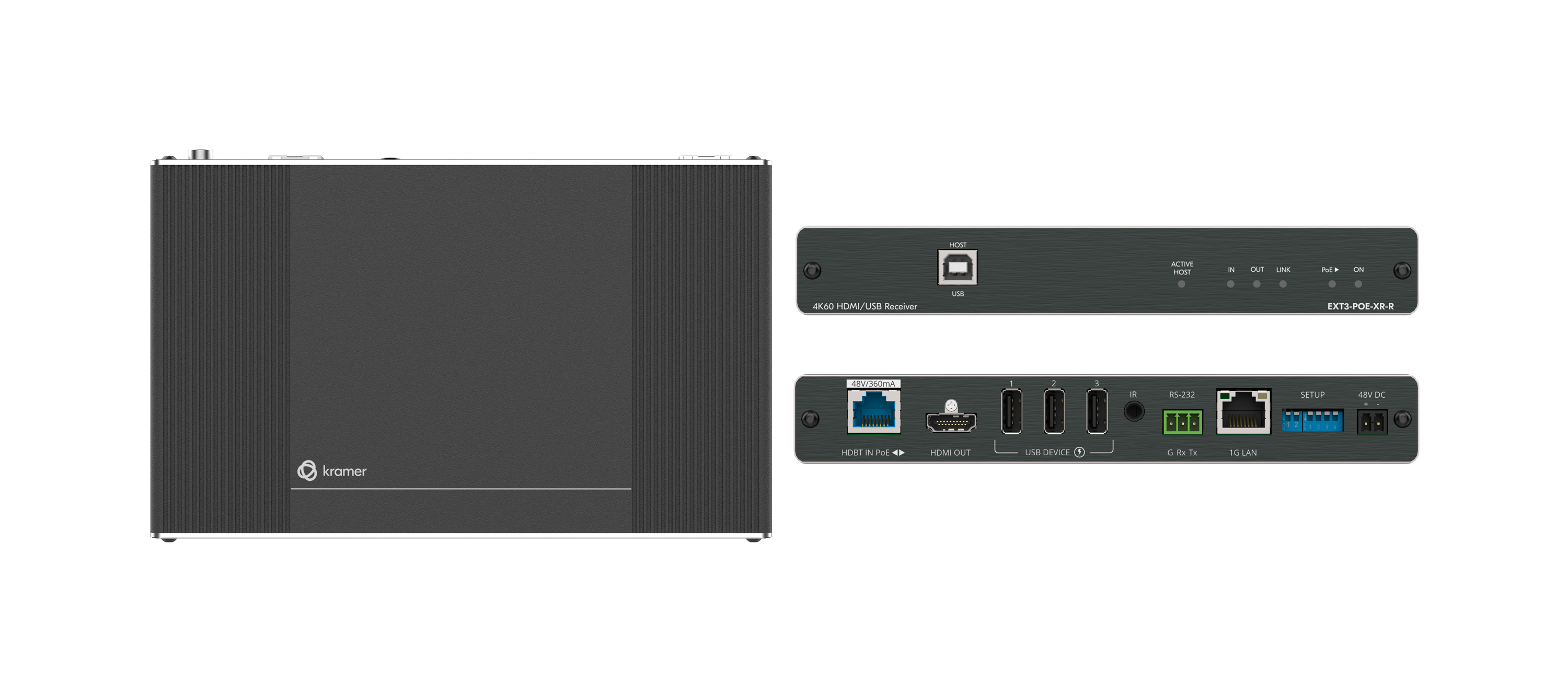

EXT3-POE-XR-R 4K60 4:4:4 Receiver with Bidirectional PoE, USB, Ethernet, RS–232, & IR over Extended–Reach HDBaseT 3.0 - Product - Midwich

EXT3−POE−XR−R is a high−performance, extended−reach HDBaseT 3.0 receiver for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS−232, and IR signals and 2−way powering over twisted pair. EXT3−POE−XR−R receiver receives the HDBaseT 3.0 signal and converts it back into the original input signals. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution. This receiver either provides power over the copper extension cable to a POE (Power over Ethernet) acceptor device, or accepts PoE through the extension cable from a PoE provider remote device, as auto−sensed by the receiver.

• Uncompressed 4K@60Hz (4:4:4) HDMI extension

• Bidirectional PoE (Power over Ethernet/HDBaseT)

• Flexible USB 2.0 host & devices extension

• 1Gbps Ethernet extension

• Up to 100m (330ft) reach
