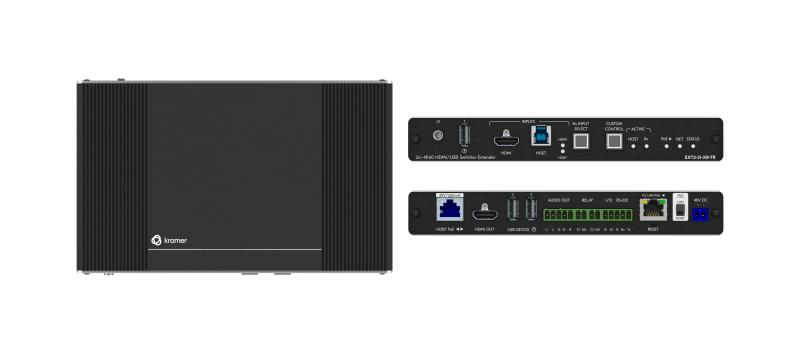

EXT3-21-XR-TR HDMI Extender - Product - Midwich

HDMI AV + USB + GE 100m 2-way PoE Smart Tx & 2x1 Switcher Rx

• 4K60 4:4:4 AV and USB coupled–signals switching and extension
• Flexible — transmitter or Switcher Receiver
• 2–way PoE powering
• Built–in intelligent control gateway
• Secured remote control and management

EXT3−21−XR−TR is a high−performance, extended−reach HDBaseT 3.0 extender for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS−232, and IR signals over twisted pair, flexibly set as transmitter−side or receiver−side device.

EXT3−21−XR−TR transmitter−side converts all input signals into the transmitted HDBaseT 3.0 signal, and extends uncompressed video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution.

EXT3−21−XR−TR receiver−side is an auto−switcher with HDMI and HDBaseT inputs that receives the HDBaseT 3.0 signal and converts it back into the original input signals. The connected USB 3.1 peripherals, such as a room camera and microphone, are switchable for use of the active USB host, for convenient hybrid meeting operation with both room and online participants.
