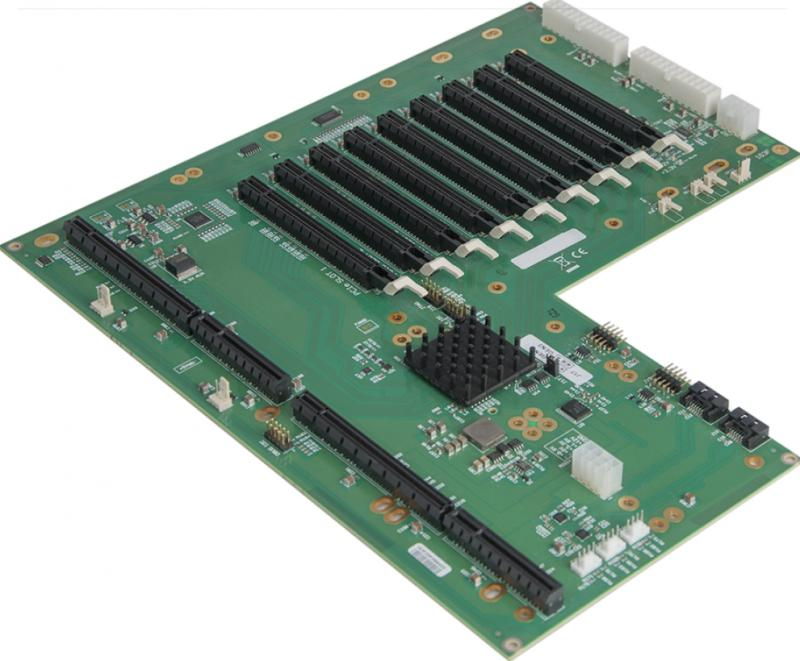

The Datapath Express9-G3 uses PCIe 3.0 (Gen3) switches to boost the data bandwidths to 4 GB/s and 8 GB/s respectively. Even when the Express9-G3 is expected to be used with plug in cards that are only Gen1 or Gen2 rated, the additional bandwidth can still be used to provide a peak bidirectional bandwidth between backplanes of 8 GB/s (using the HLink-G3 and SLink-G3 board pair). When used in this way as part of a multi-chassis data wall system, for example, this link bandwidth eliminates the bottleneck between capture cards in one chassis and display cards in another chassis. As a guide, the 8GB/s bandwidth can handle approximately 14 full HD streams at 60 Hz and 32 bits per pixel in either direction.
