5 slot PCIe Gen3 backplane (5 X 8) - Express5-G3 5Yr

List $2,311.25
MAP $2,311.25

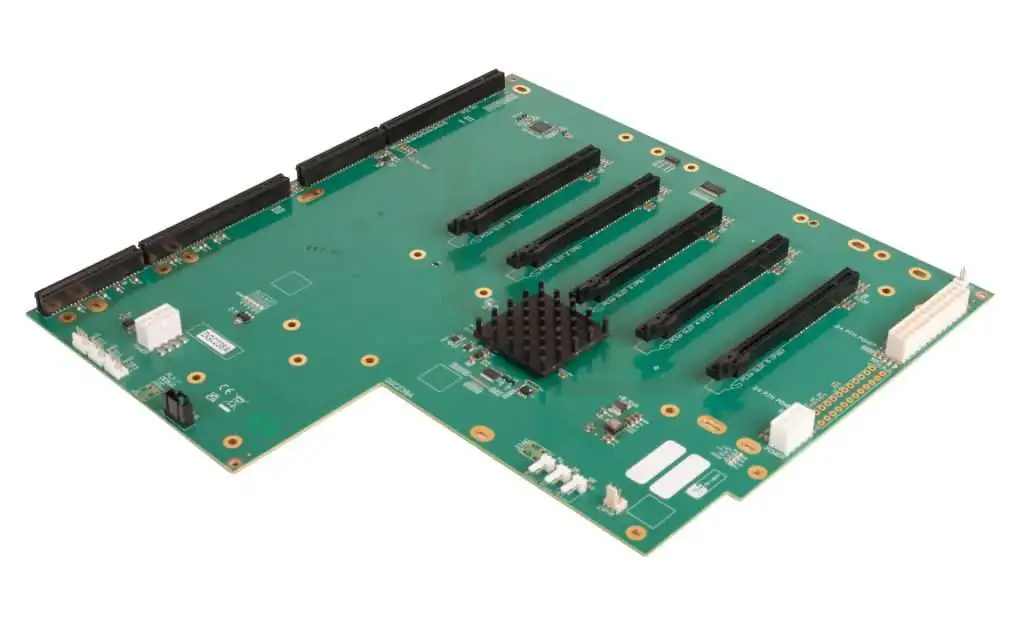

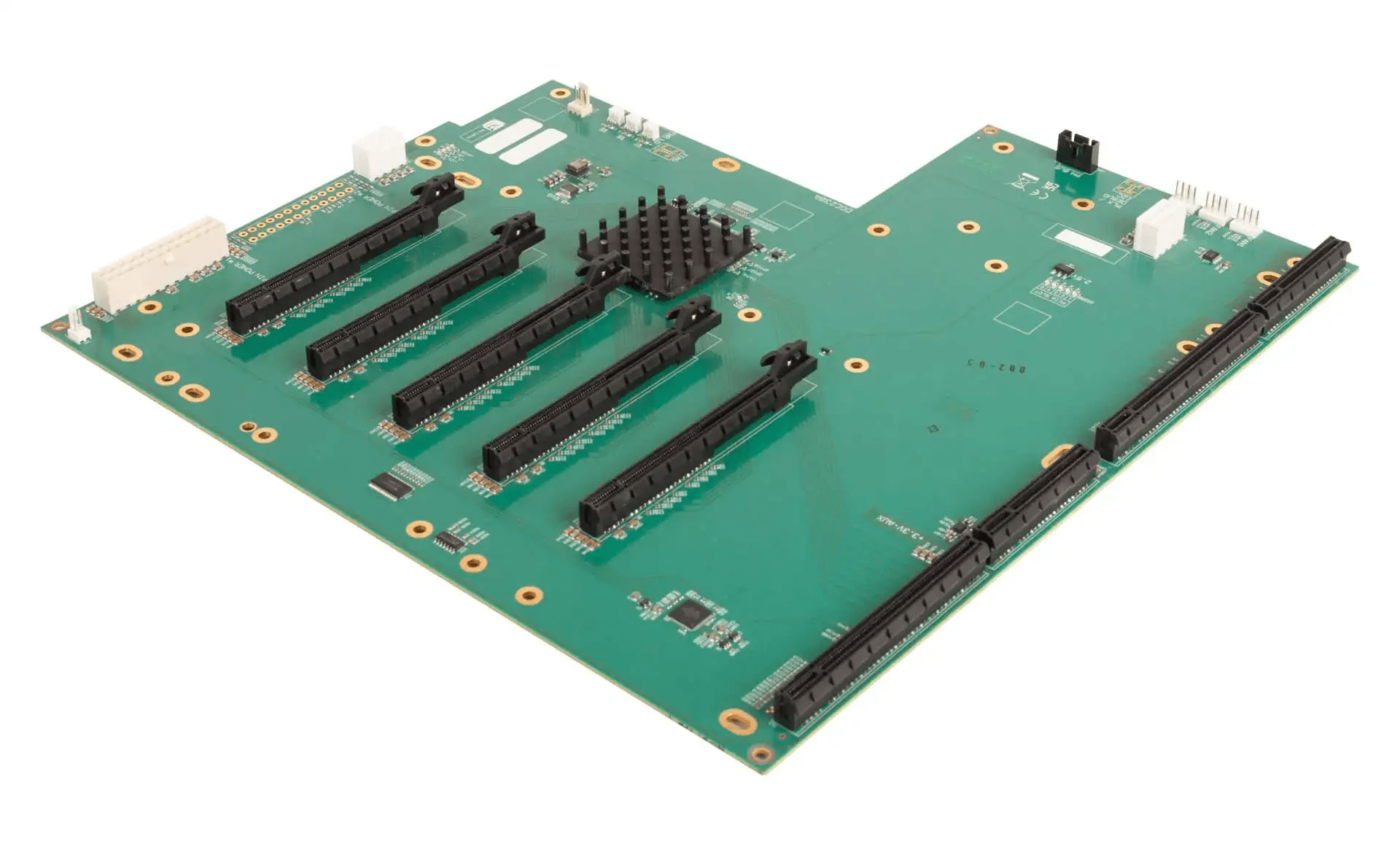

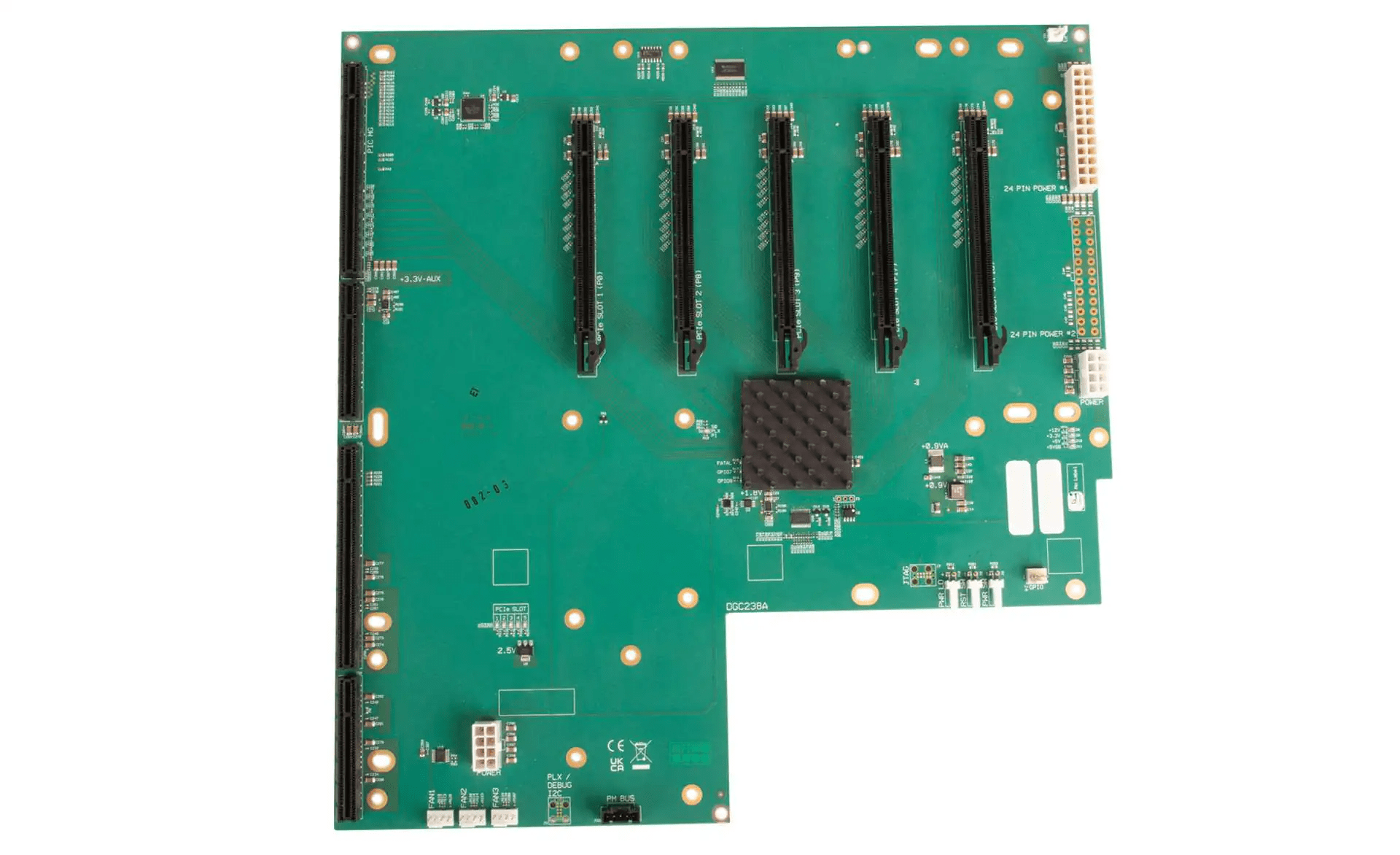

The Datapath Express5-G3 backplane provides 5 x8 lane PCI Express slots, all implemented as x16 physical connectors. For high density and high performance display controller systems. The Express5-G3 can be used with a standard PICMG 1.3 SBC as a stand alone system or in combination with multiple backplanes to provide a PCI Express expansion system for a standard PC

  • 5 slot, Gen.3 PCI Express backplane
  • 1 x PICMG 1.3 SBC slot
  • Standard ATX form factor
  • Support for multiple backplanes for large systems
  • Supports 8GB/s full duplex links per slot
  • 96 lane PCI Express 3.0 switch
  • Provides headers for 3 fans

TAA Compliant

Certifications and Compliances
TAA Compliant Yes
