Two-way 8" coaxial ceiling speaker with white bezel-less magnetic grille, complete with back can enclosure, tile rails, and mounting ring. 30W transformer for 70/100V or 8-ohm bypass. (Priced individually, packaged in pairs) - EVID-EC8.2

List $311.00
MAP $259.00

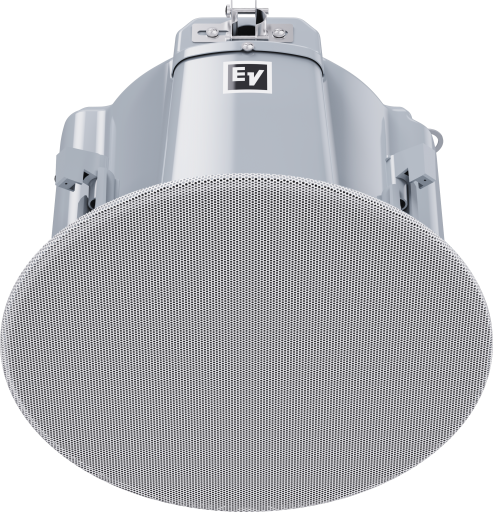

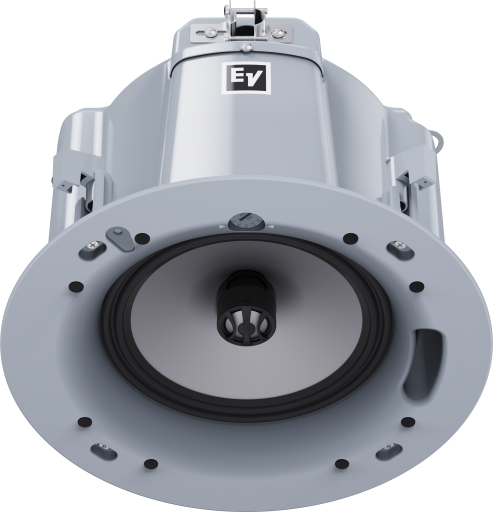

The Electro-Voice EVID-EC8.2 is a complete 8-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with firstclass aesthetics.

The EVID-EC8.2 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces.

A mounting ring and a tile bridge are included for safe suspension of the EVID-EC8.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.

  • Bezel-less design with easy-attach grille
  • Front baffle wattage tap adjustment
  • Includes tile bridge and C-ring for easy installation
  • UL 1480A, UL 2043, CSA 22.2 205 and IEC 62368-1 certified

Shipping
Master product height 14.96
Shipping height (in.) 10.55
Master product width 14.57
Master carton quantity 1.0
Harmonize code 8518210000
Master product length 10.16
Quantity unit of measure PR
Shipping width 14.96
UPC code 800549394406
Shipping depth 10.16
Shipping weight 29.13
Master product weight 13.78
Country of origin CN
