Full-range 3" ceiling speaker w/white bezel-less magnetic grille, complete w/back can enclosure, tile rails & mounting ring.15W transformer for 70/100V or 8-ohm bypass. IP45 rated for high-humidity environments.(Priced individ., PKG in pairs) - EVID-EC3.1

List $128.00
MAP $109.00

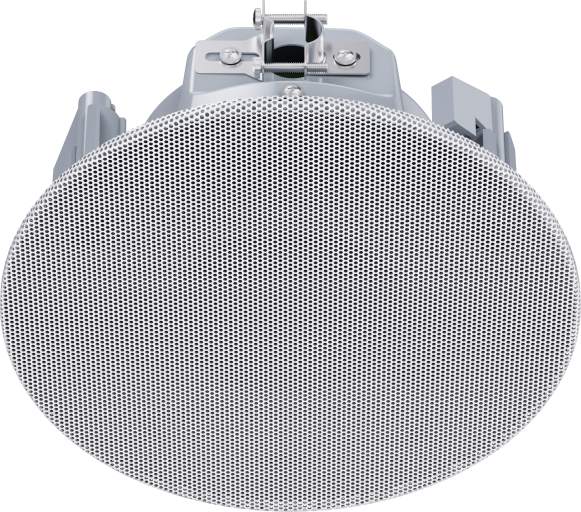

The Electro-Voice EVID-EC3.1 is a complete 3-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with firstclass aesthetics. The EVID-EC3.1 utilizes a transformer that offers a selection of 0.9 (70-V only), 1.88, 3.75, 7.5 or 15 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces.

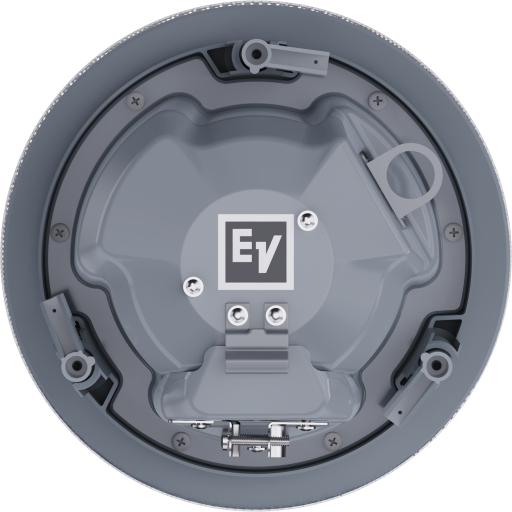

A mounting ring and a tile bridge are included for safe suspension of the EVID-EC3.1 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.

  • Bezel-less design with easy-attach grille

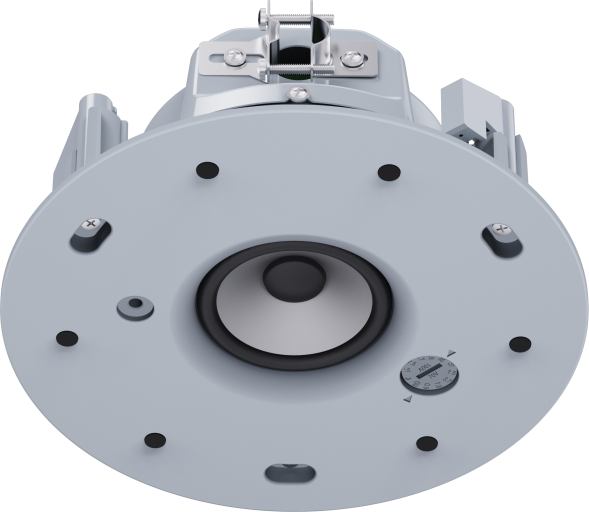

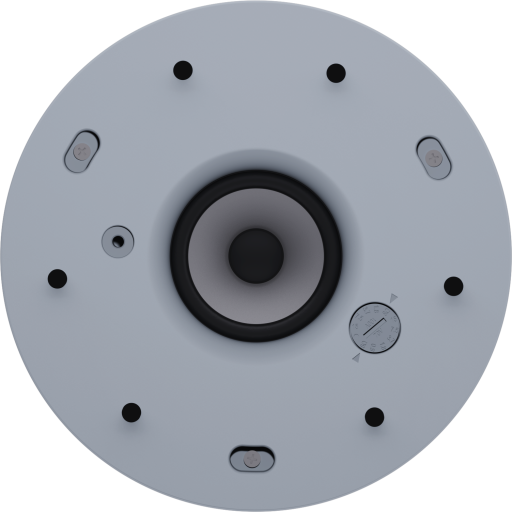

  • Front baffle wattage tap adjustment
  • Includes tile bridge and C-ring for easy installation
  • UL 1480A, UL 2043, CSA 22.2 205 and IEC 62368-1 certified

Shipping
Master product height 11.02
Shipping height (in.) 6.61
Master product width 13.39
Master carton quantity 1.0
Harmonize code 8518210000
Master product length 6.22
Quantity unit of measure PR
Shipping width 11.02
UPC code 800549394369
Shipping depth 6.22
Shipping weight 26.77
Master product weight 6.61
EVID-EC3.1_Ceiling_speaker_3__70_100V_white_Datasheet_51_en_103719032459.pdf
