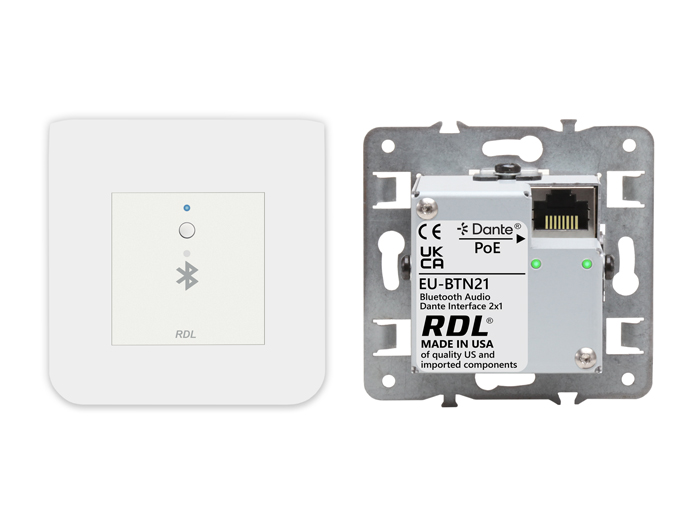

EU-BTN21 Bluetooth(R) Audio Dante Network Interface - Product - Midwich

The EU-BTN21 modules are Dante or AES67 networked, wall-mounted audio interfaces that provide bidirectional Bluetooth audio.

• Bluetooth Audio Input for Dante or AES67 Networked System
• Bluetooth Stereo or Mono Sum Feeds Two Network Channels
• Return Audio Talk Channel from Dante Network to Bluetooth-Connected Device
• Intuitive Single Button Bluetooth Pairing with LED Status Indication
• Bluetooth Functions are Controllable in RDL CONSOLE Software
• Q-SYS Plug-In Available for Configuring in Q-SYS Environment
• Controllable Functions Include Pairing/Un-pairing, Media Source Track Selection and Level
• Bluetooth Track Title and Artist Data are Multicast on the Network to Compatible Devices
• Customize the Module ID Name, Settings and Mono/Stereo Mode using RDL CONSOLE Software
• White Faceplate Laminate is Installed, Field-Replaceable Black Laminate Included
• European 45 mm x 45 mm Chassis Fits in a Standard 60 mm Deep EU Junction Box
• Module is PoE Powered

APPLICATION: The EU-BTN21 modules are Dante or AES67 networked, wall-mounted audio interfaces that provide bidirectional Bluetooth audio. The modules are configurable using RDL CONSOLE software. The module multicasts Bluetooth media data and module function status for use with RDL CONSOLE software and other compatible software. Stereo or summed mono audio is available to users through two Dante network channels. Stereo or mono audio may be selected using RDL CONSOLE software or by remote control commands. One Dante channel may be routed back to a connected device through the Bluetooth interface enabling full duplex communication

The installer can customize the module Bluetooth name using RDL CONSOLE software. The default module name is EU_BTN21_G2. Additional settings include the LED dim intensity and the timeout to dim the LEDs. The default timeout is 30 seconds.
