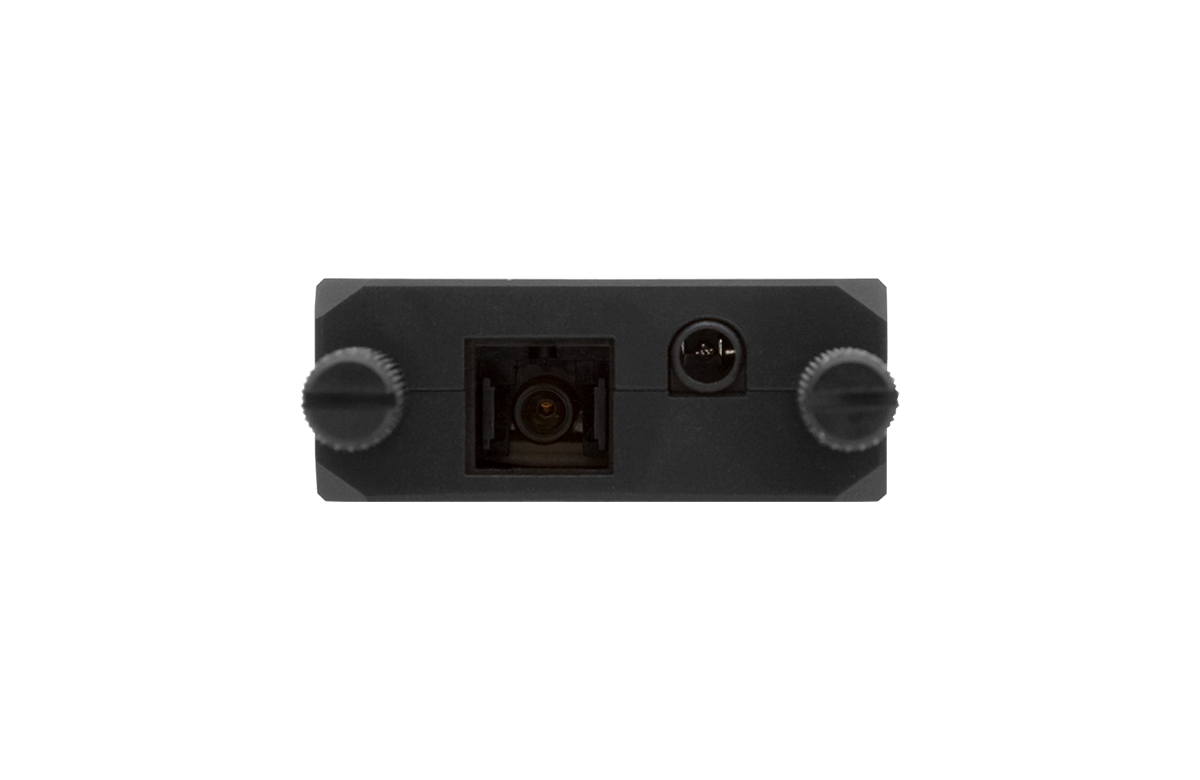

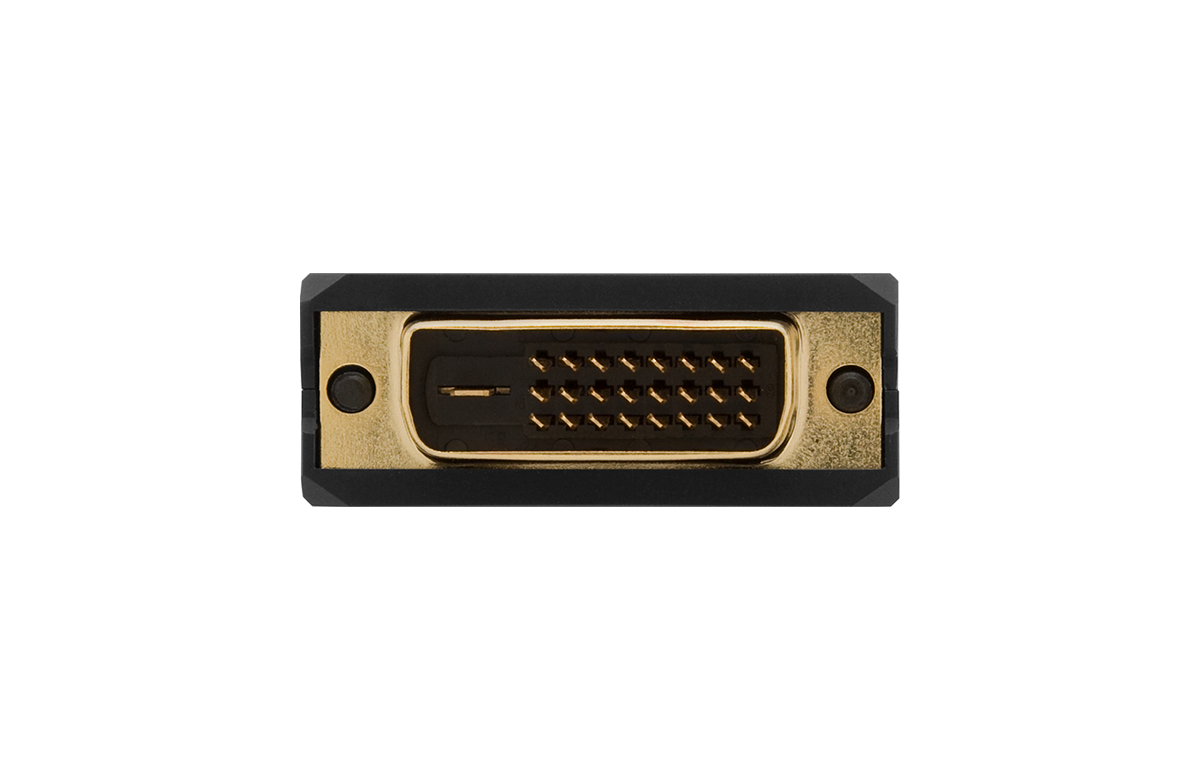

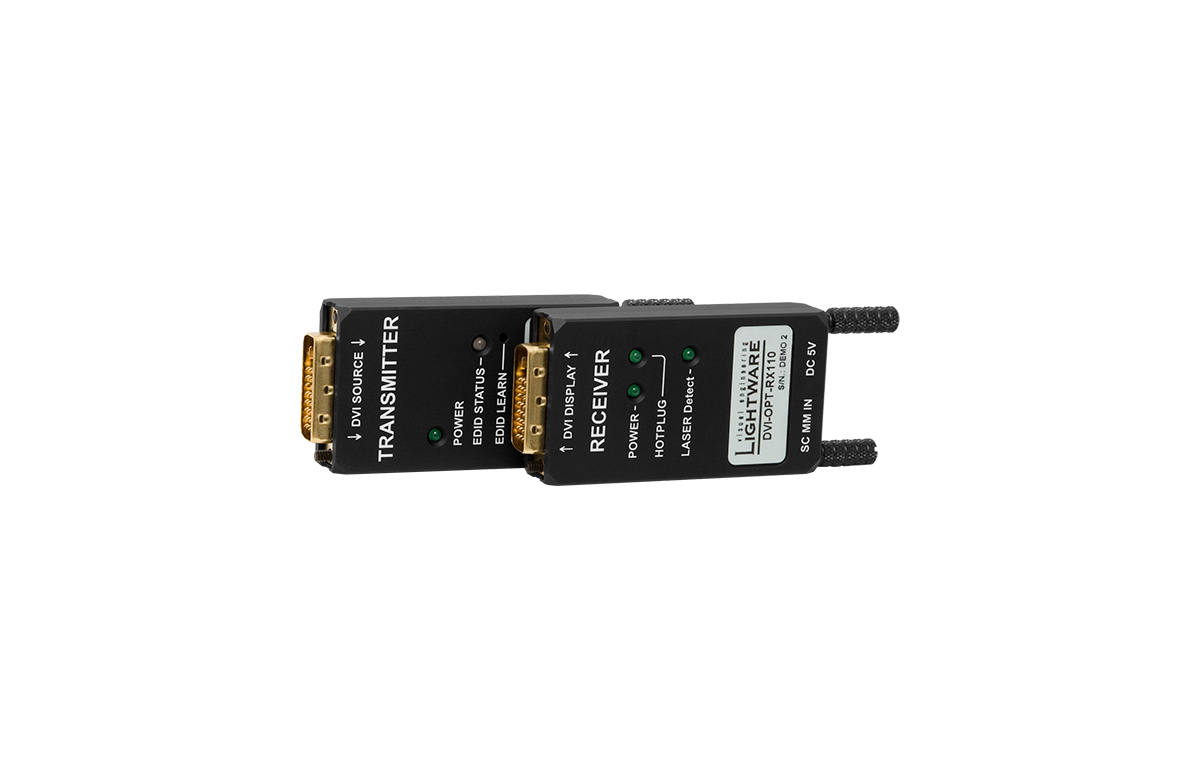

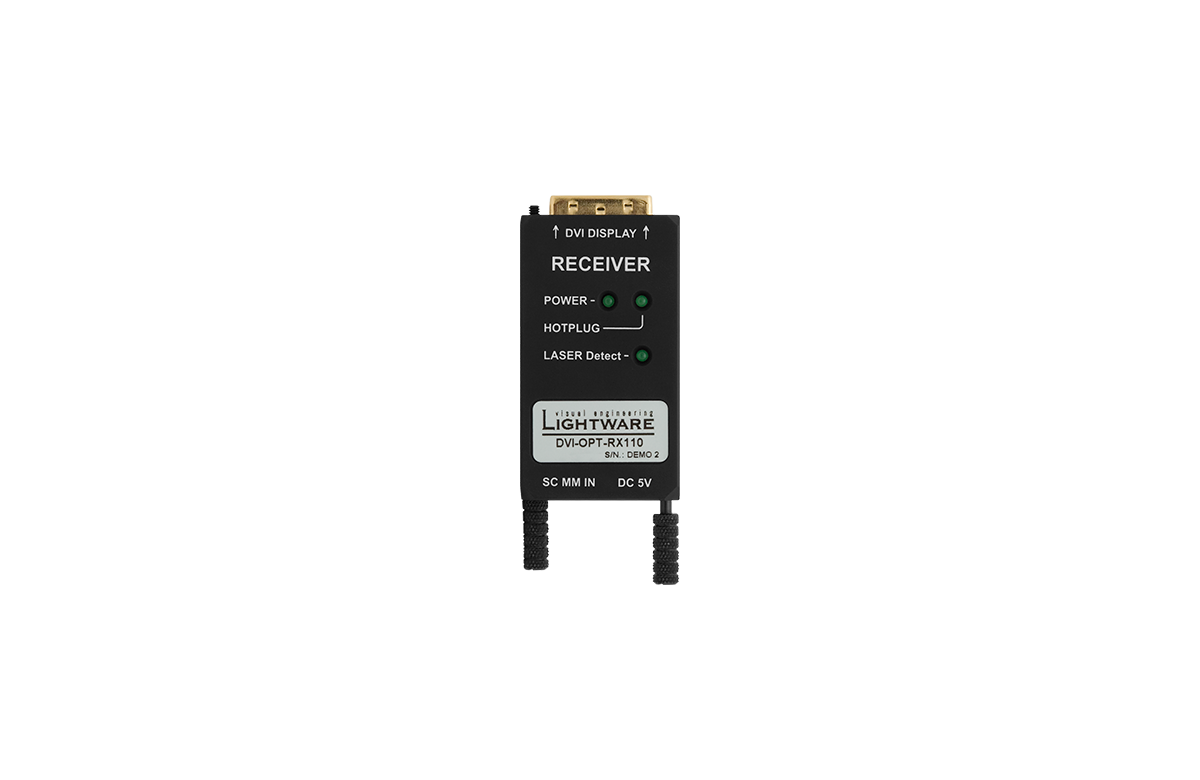

DVI-OPT-RX110 Small DVI Fiber Optical Extender - Product - Midwich

The DVI‑OPT‑RX110 is a DVI to fiber extender pair transmitting up to a range of 2500 m. The new, redesigned housing and ports of these units further enhances operation safety and security. Using Single Fiber Technology the DVI-D signal is transmitted over only one multimode 50/125 fiber core. Sources and display devices are galvanically isolated against ground loops and hum effects. No delay occurs in the signal, the video image is transferred without frame latency.

Simple Integration with Modular Matrices

With Lightware's hybrid modular matrix concept, it is possible to connect these extender units directly to the MX modular matrix router using an MX-DVI-OPT series input or output board.

Simplified Power and Installation

Powered from the DVI source, the DVI-OPT-TX/RX110 transmitters do not need external power adaptor simplifying system installation.

User-Friendly and Robust Design

Recessed thumbscrews allow easy mounting directly to DVI receptacle by hand, or by using a flat-blade screwdriver. This is most useful in space constraint applications, where the connectors are too close, and can be reached only from the rear side. Massive solid aluminum casing provides excellent cooling and maximum reliability.

Features

• Extends DVI signals over one multimode fiber cable
• Single Fiber Technology
• DVI connector sized form factor

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]
