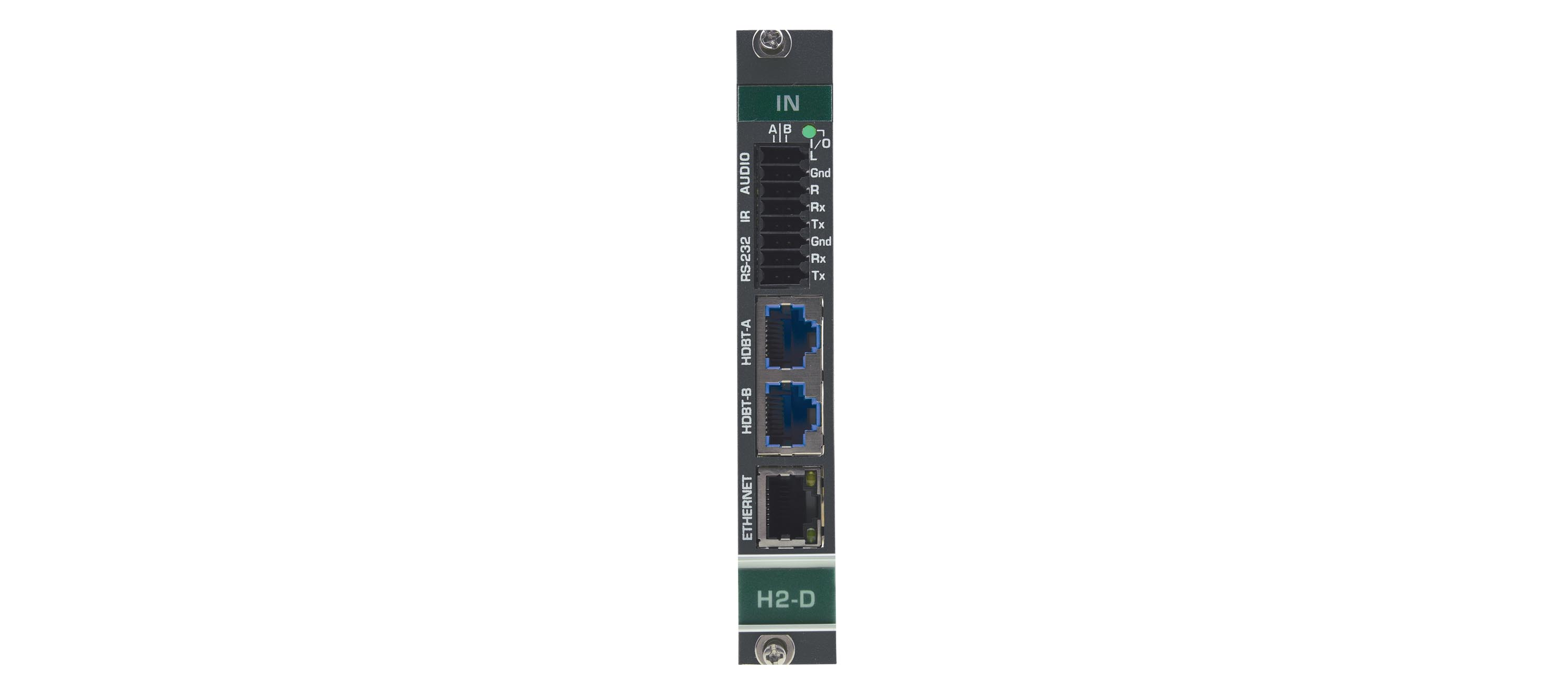

DTAxrD2−IN2−F34 is a 2−channel, 4K@60Hz (4:4:4), DSC, HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair receiver card for compatible Kramer Modular Multi−Format Digital Matrix Switchers. DTAxrD2−IN2−F34 inputs two extended−reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, Ethernet, and IR from the line to the chassis.
Max. Data Rate — 18Gbps (6Gbps per graphics channel), 10Gbps DSC over CAT cable.
Max. Resolution — 4K@60Hz (4:4:4).
Analog Audio Embedding/De–embedding — On the same jack.
System Range — Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
