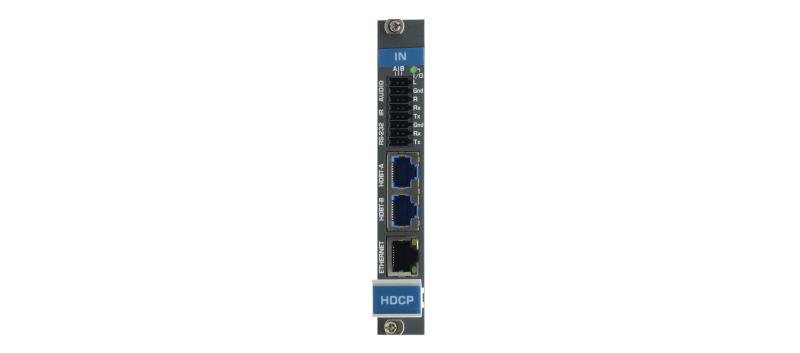

DTAxr-IN2-F16 2-Input 4K HDMI + Analog Audio over HDBaseT Card (F-16) - Product - Midwich

DTAxr−IN2−F16 is a 2−channel 4K60 4:2:0 HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair receiver card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. DTAxr−IN2−F16 inputs two extended reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, Ethernet, and IR from the line to the chassis.

•  Max. Data Rate — 10.2Gbps (3.4Gbps per graphics channel).
•  Max. Resolution — 4K@60Hz (4:2:0).
•  Analog Audio Embedding/De–embedding — On the same jack
•  HDBaseT Technology — HDTV compatible, HDCP compliant.
•  System Range — Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
•  Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
•  Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
•  Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
•  3D Pass–Through.
