DT-IN4-F32 4–Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Input Card - Product - Midwich

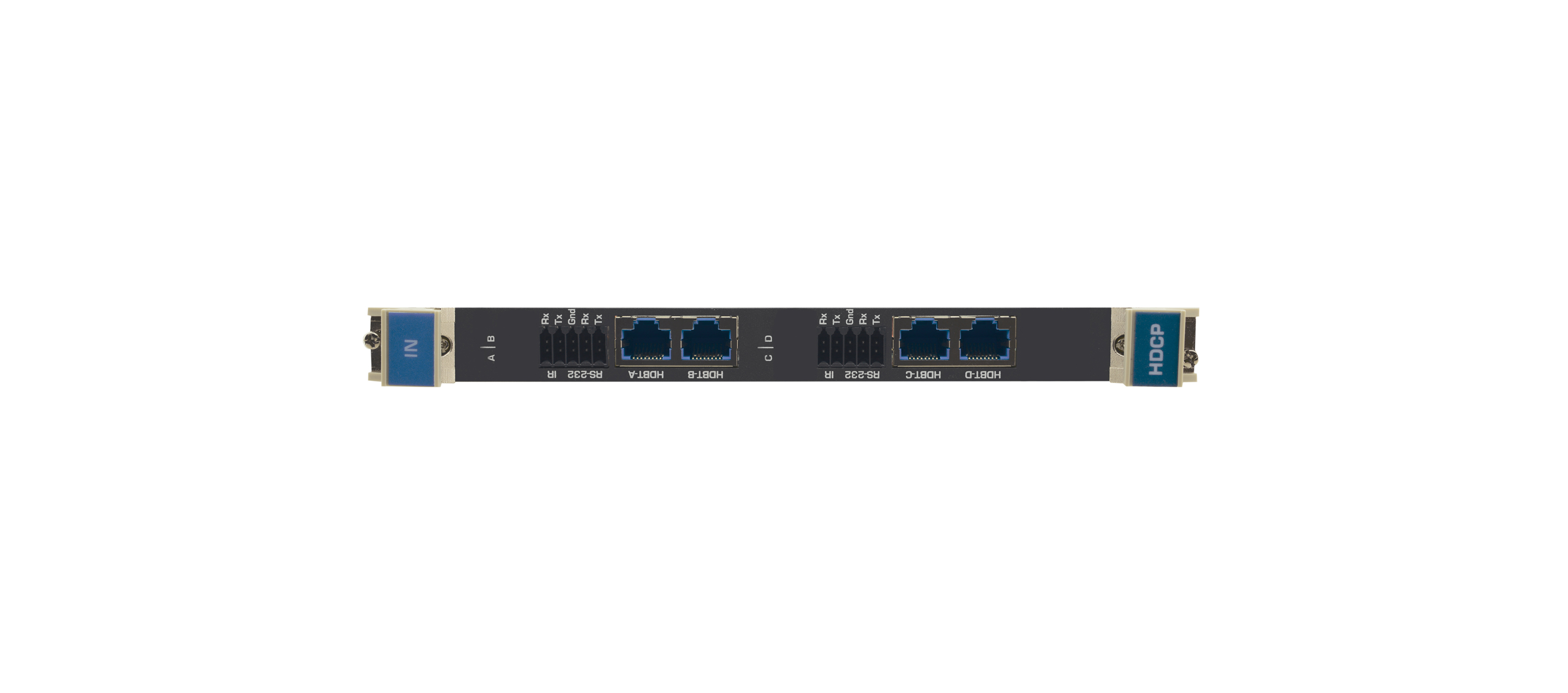

DT−IN4−F32 is a four−channel 4K@60Hz (4:2:0), long reach, HDBaseT input card for the VS−3232 Series Modular Multi−Format Digital Matrix Switchers. DT−IN4−F32 inputs four long reach HDBaseT signals with bidirectional RS−232 and IR from the line to the chassis.

Features

•  Max. Data Rate — 10.2 Gbps (3.4Gbps per graphic channel).
•  System Range — 40m (130ft) — 4K60 4:2:0 or 4K30 4:4:4; 70m (230ft) — 1080p 12bit (deep color). Note: When using Kramer HDBaseT cables.
•  HDTV Compatible.
•  HDCP Compliant.
•  3D Pass–Through.
•  Bidirectional RS–232 and IR per Port.
•  Kramer Equalization and re–Klocking Technology.
