Dante AVIO Install Dante 2-Ch In/2-Ch Out Analog Adapter - Product - Midwich

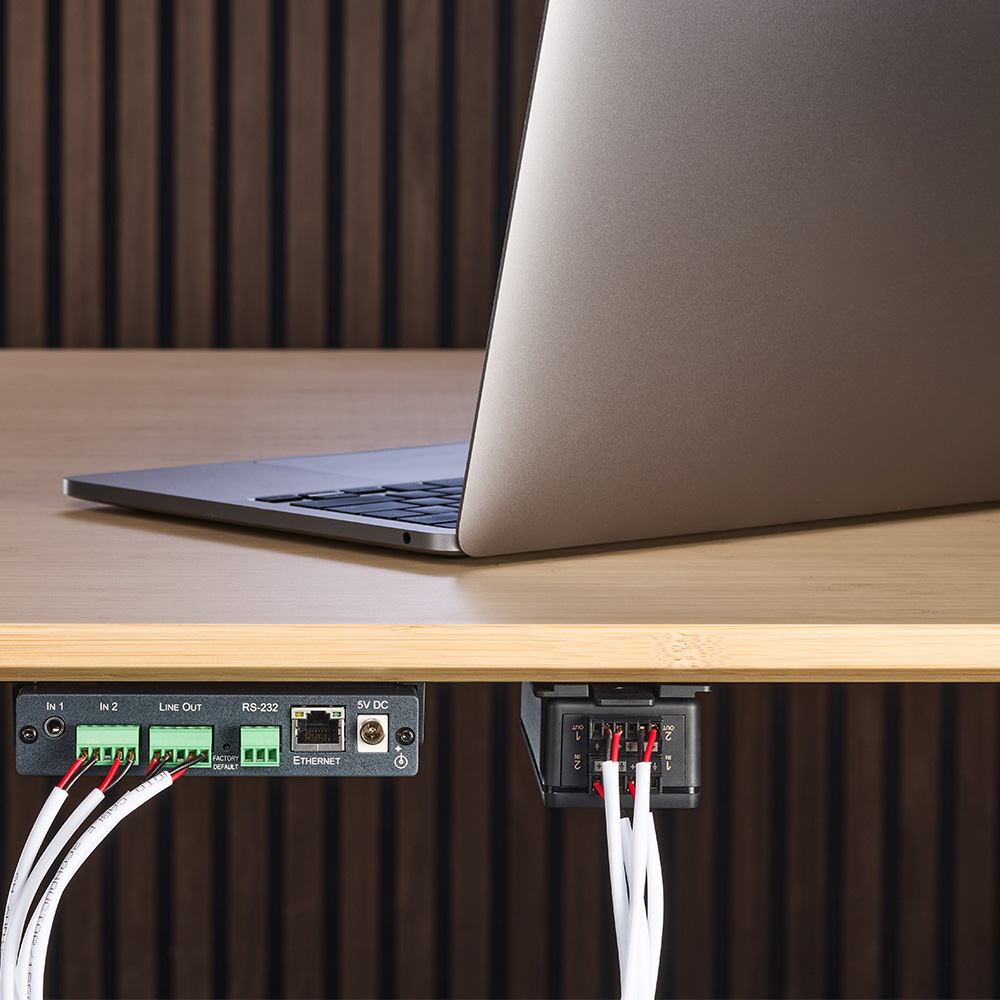

The Dante AVIO Install 2-Ch In/2-Ch Out Analog Adapter provides bidirectional analog connectivity between Dante and installed AV equipment such as audio processors and line mixers. Euroblock terminal connections support permanent installation wiring, and dual switched Ethernet ports allow PoE power and network connectivity to be passed to up to four adapters from a single switch port.

• Convert 2 channels of line-level analog audio to Dante and 2 channels of Dante audio to analog
• Supports uncompressed digital audio up to 96 kHz, 32-bit

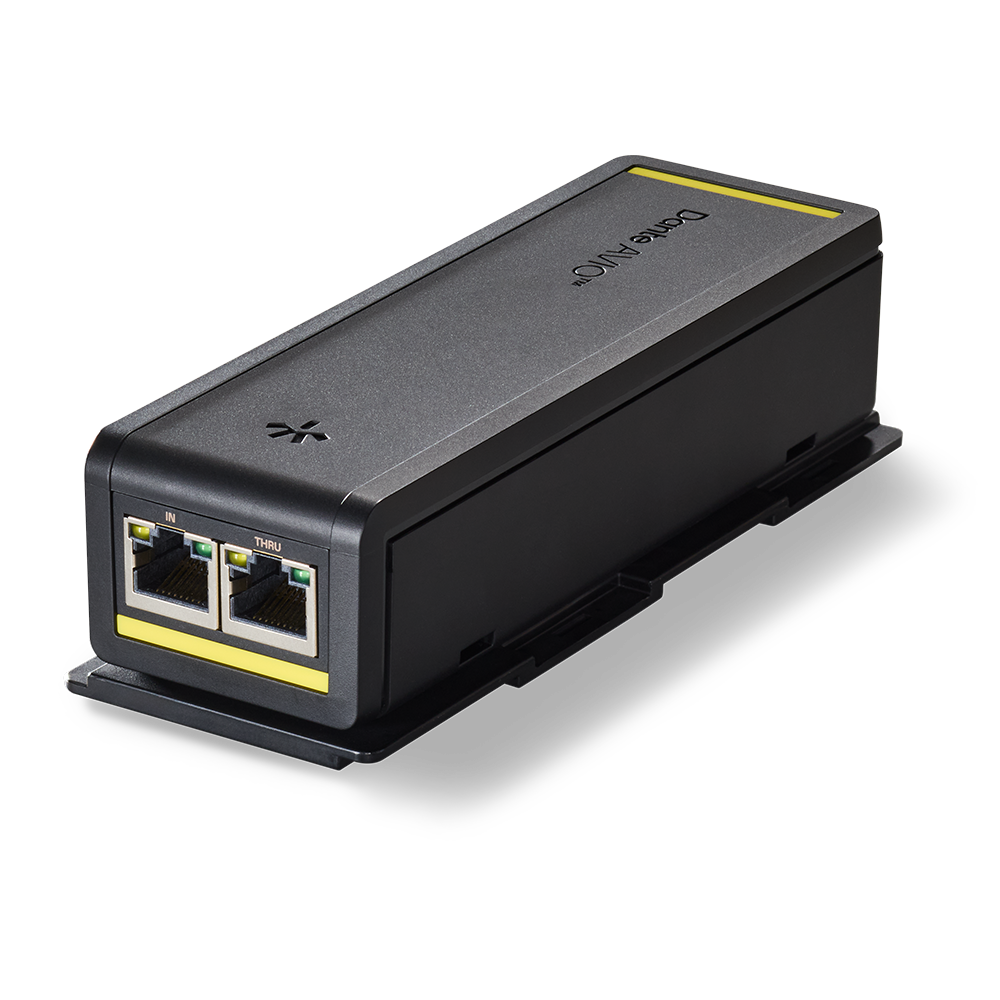

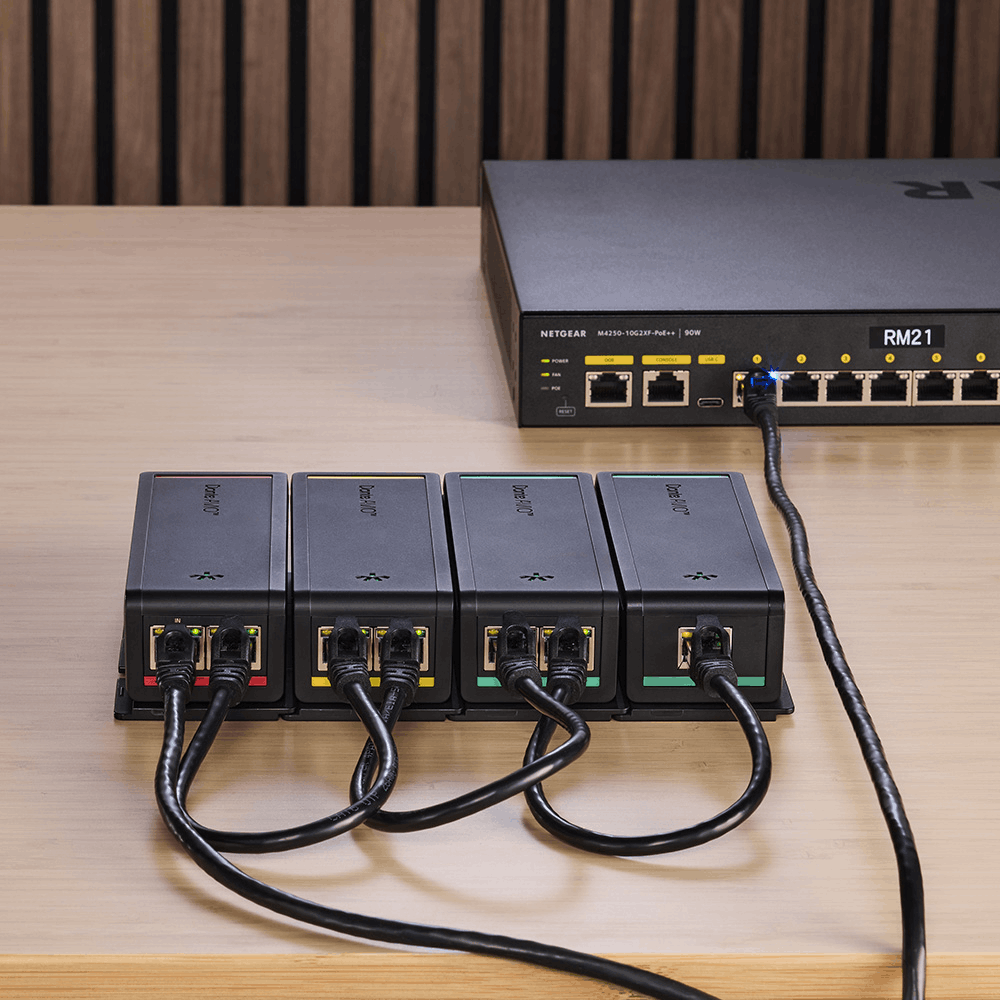

• Dual 100 Mbps switched Ethernet ports for daisy-chain connection (up to 4 adapters)
• PoE powered; no external power supply required
• Euroblock terminal connections for permanent installation wiring

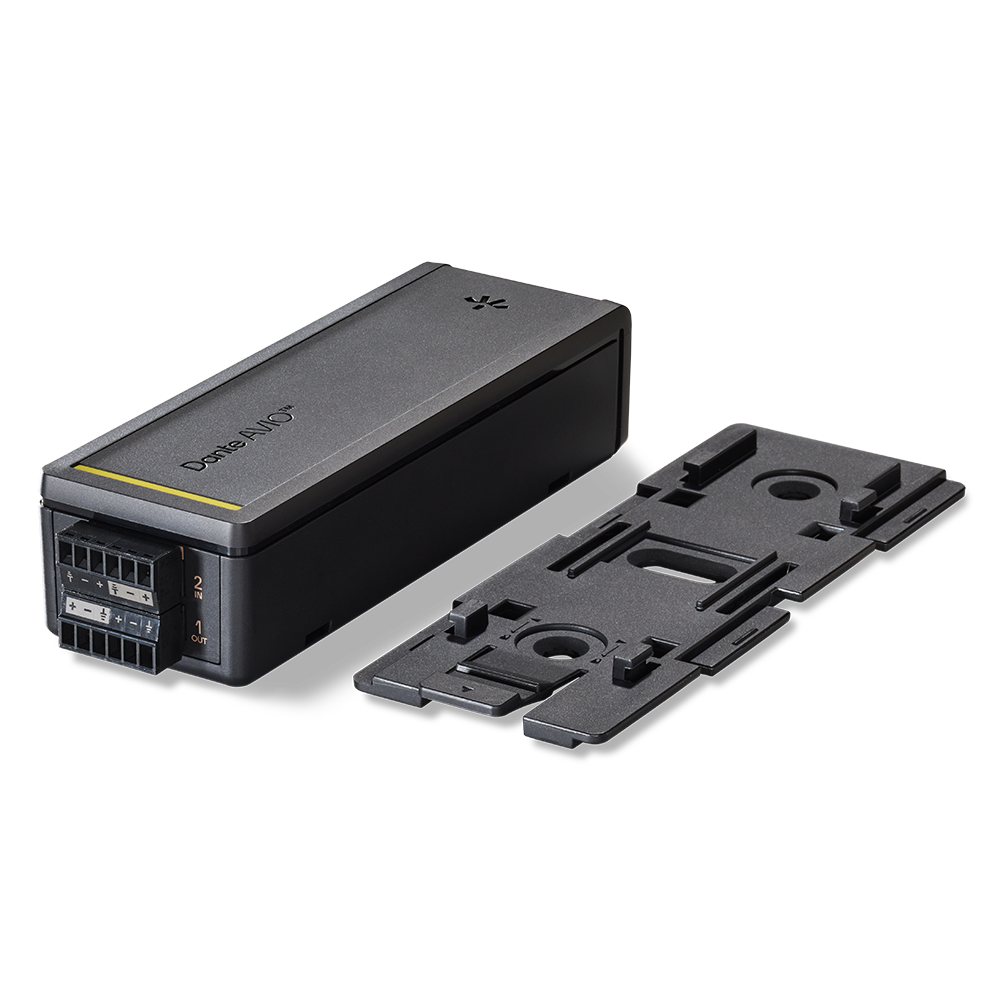

• Includes Dante AVIO ClickGrid mounting bracket for flexible installation
• Configured and routed using Dante Controller

AVIO-A-2IN2OUT-EB Specifications

• Mounting options: Mounting Bracket (included)

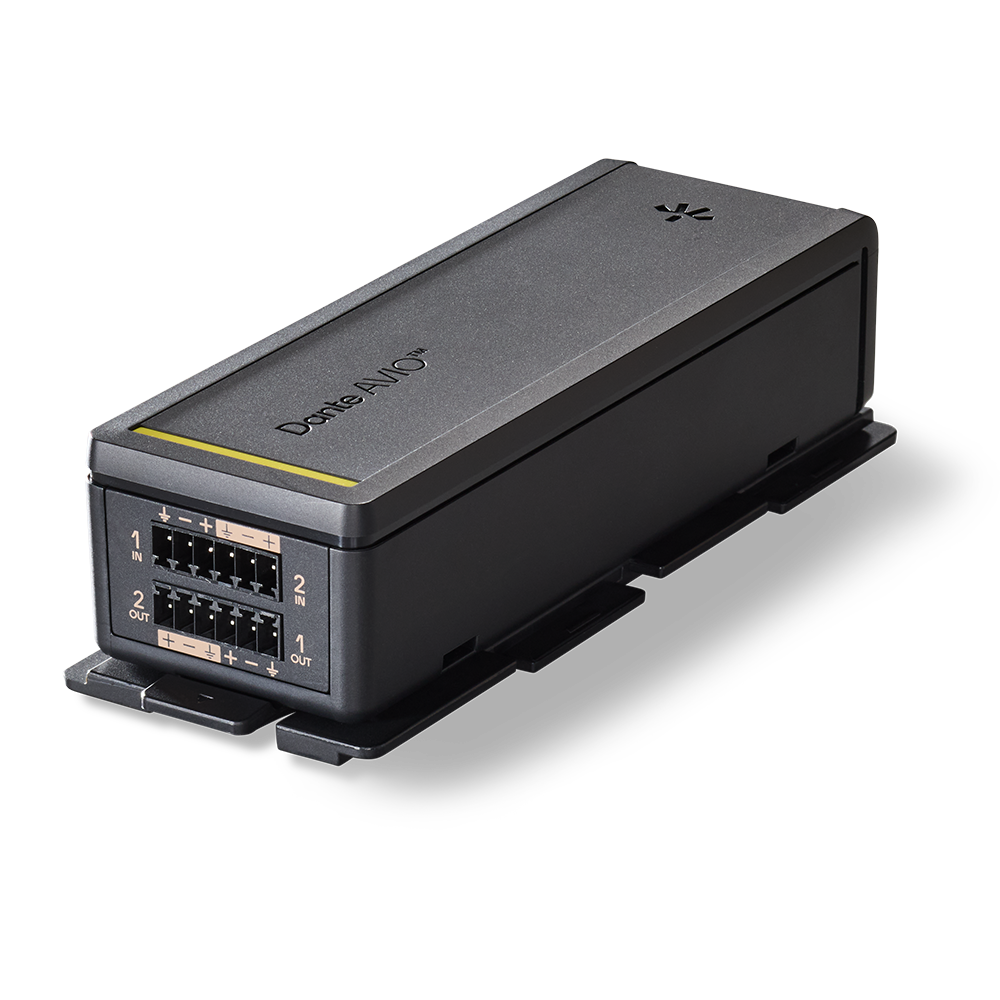

• Connector type: 2 x 6-pin Euroblock terminal, 3.5mm pitch
• Power: Class1 802.3af PoE
• Power Consumption: Standalone: 2 watts
• Operating Temp: -10 to +45C
• Storage Temp: -15 to +60C
• Max signal level (balanced): +4dBu / 0dBu / 0dBV / -10dBV
• Frequency Response: 20Hz to 20kHz (-/+0.2dB)
