Q-SYS Single gang US Dante/AES67 Wall Plate with 2 Mic/Line Inputs on XLR and 1/4" TRS combo connectors, PoE (includes white and black faceplates, Axiom bus expansion capable) - D2i

List $1,230.00
MAP $1,230.00

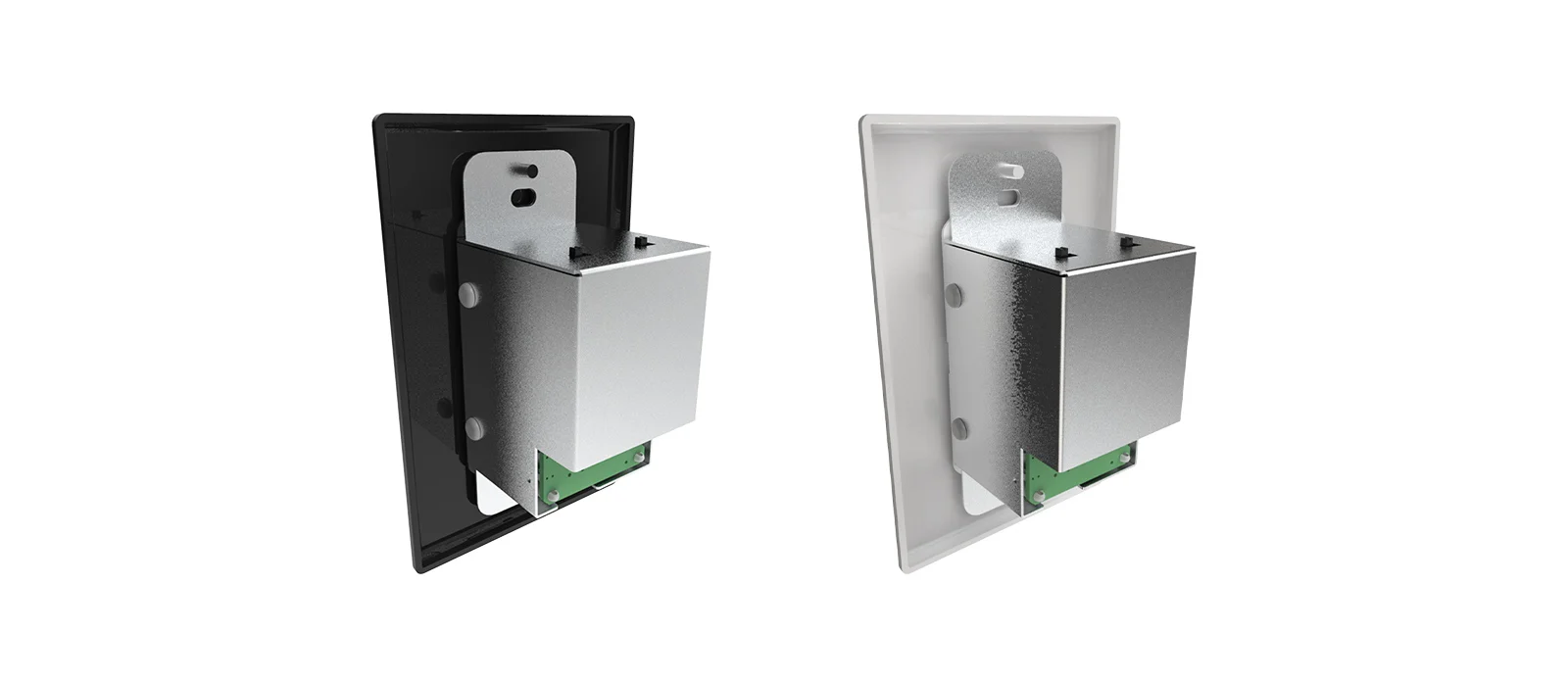

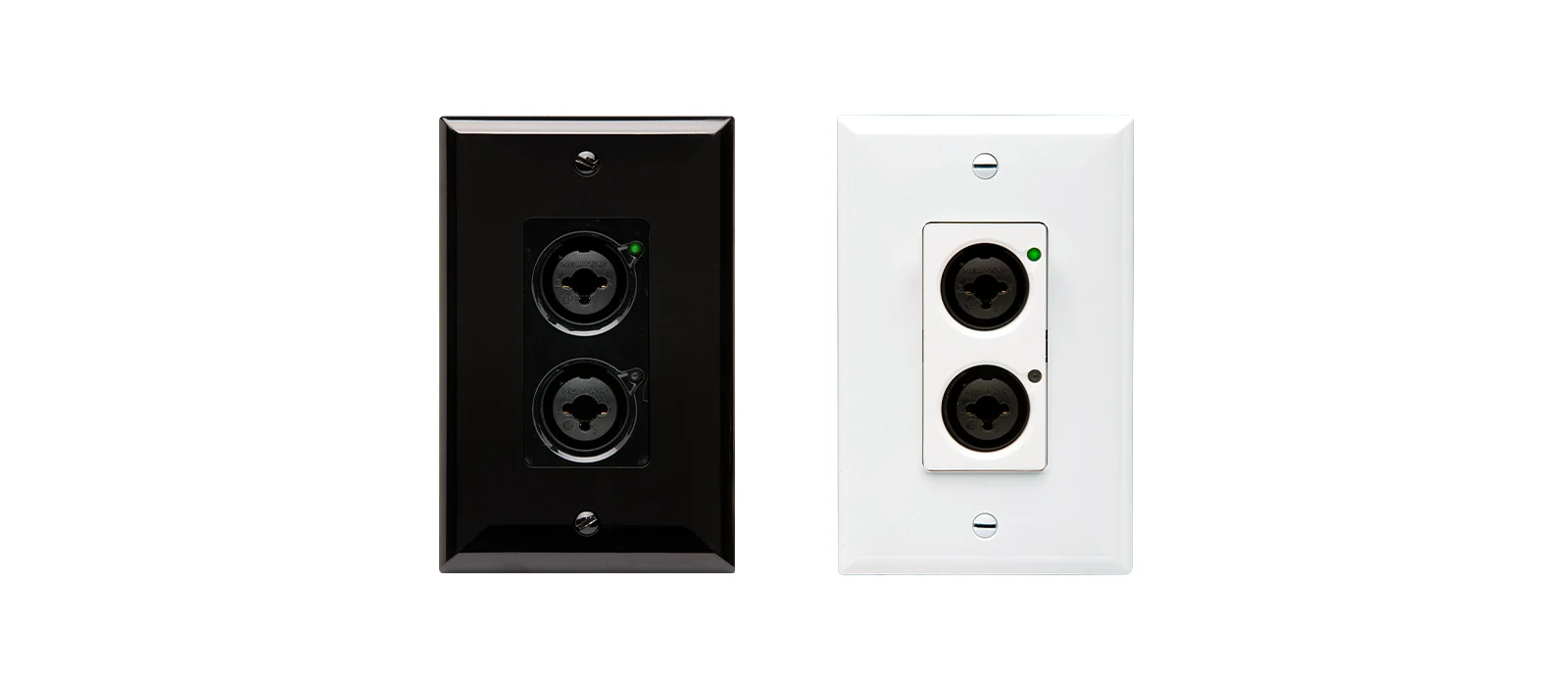

The Attero Tech Axon D2i is a single-gang, Dante/AES67 network audio I/O wallplate for network AV systems, including Q-SYS. With two balanced mic/line inputs in a cost-effective form-factor, it provides easy integration of analog devices into a wide range of network audio applications. A Q-SYS Extension further simplifies integration, letting integrators quickly add the Axon D2i to Q-SYS installations without the need for any programming.

Features and Benefits:

  • Two (2) balanced mic/line inputs ona 3-pin XLR (mic level) with combination ¼" TRS connector (line level)
  • +48 V phantom power
  • Integrated Axiom port enables integration of Attero Tech by Axiom wallplates into network AV systems (includes RS-232 control pass-through)
  • PoE (802.3af)
  • Available Q-SYS Extension
  • Dante Domain Manager ready
  • Ships with both black and white Decora faceplates and fascia inserts

Shipping
Master product height 0.0
Shipping height (in.) 4.13
Master product width 0.0
Master carton quantity 1.0
Country of origin US
Master product length 0.0
Quantity unit of measure EA
Shipping width 6.0
Shipping depth 3.75
Shipping weight 0.7
Master product weight 0.0
Harmonize code 8537.10.9170
UPC code 684284085030
q_dn_axon_d2i_specs.pdf
