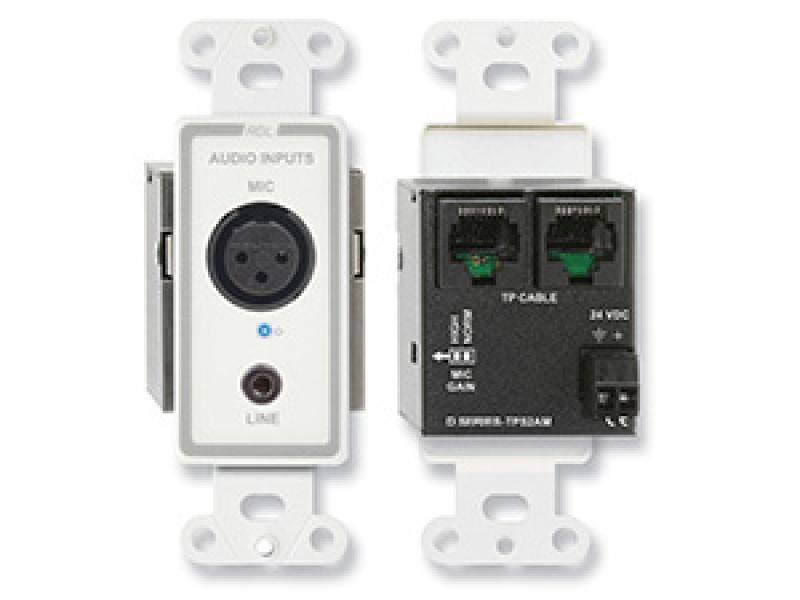

The D SERIES-TPSM2A modules are two-pair audio sending modules compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect audio sources. The -TPSM2A models mount in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. The D-TPSM2A features a white front-panel laminate with gray lettering that matches RDL Decora©-style remote controls. The DB-TPSM2A features a black front-panel laminate. The DS-TPSM2A is constructed of stainless steel to coordinate with RDL Decora-style stainless steel remote controls in commercial/industrial installations.

Features

• Two Balanced Microphone XLR Inputs with P48 Phantom
• Switch-Selectable Mic Gain on Rear Panel
• Gain Selector Provides Fixed 40 dB, 60 dB or Automatic
• Automatic Gain: 60 dB for Dynamic Mics; 40 dB for Condenser Mics
• Output Pair Selector to Feed RJ45 Pair (A, B or C) for Each Preamplifier
• Signal and Power Pairs Pass Through RJ45 Connectors
• Module is Remotely Powered Through RJ45 Connector
• Utilizes Two Format-A Pairs
• Daisy-Chain with a Single-Pair Format-A Sender
• Studio-Quality Precision Active Balanced Circuitry
