CMS492 2' x 2' Above Suspended Ceiling Storage Box - Product - Midwich

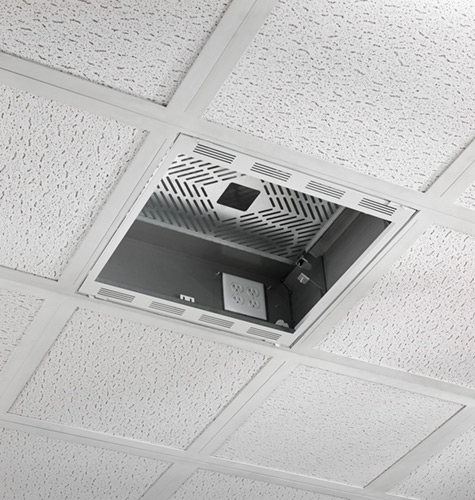

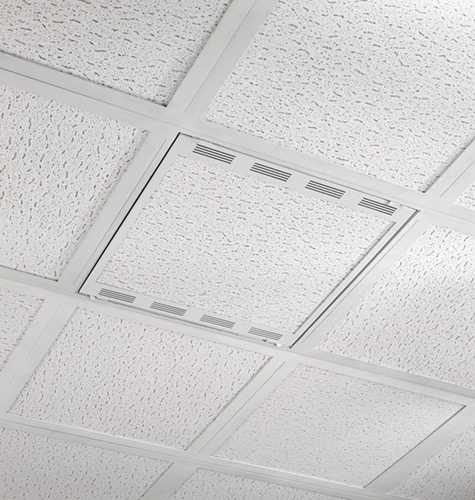

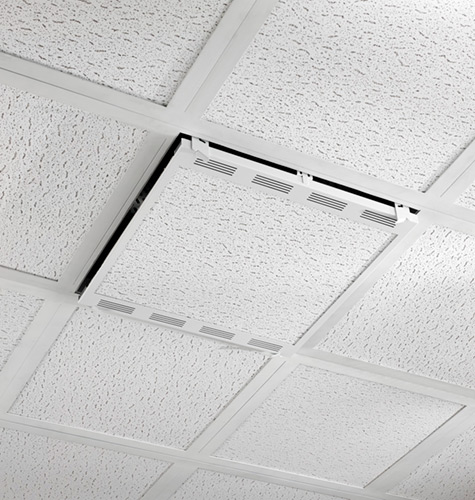

The CMS492 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.

Features

• Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time

• Inside the box or facing the room

  • Up to 2 single gang or 1 dual gang outlet

  • 4 nested knockouts for 1-1/4", 1", & ½" diameter conduit

• Built in ventilation

• AV tray supports a variety of AV components

  • Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2

  • 1 RU rack rail brackets sold separately, see CMS1RU

• Overall weight capacity 100 lbs (45 kg)

  • 50 lbs (22 kg) for projector ceiling plate

  • 25 lbs (11 kg) per shelf location

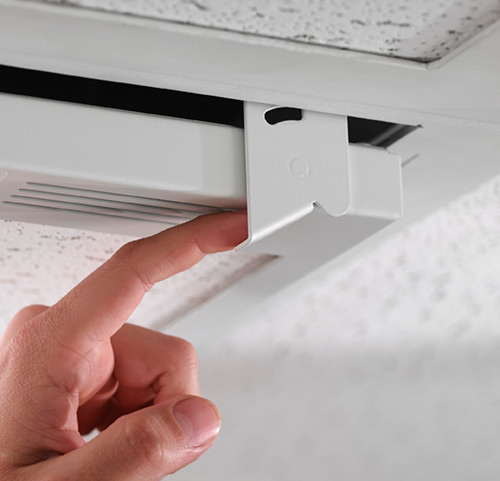

• Ships with speed connect installation hardware

• Lightweight construction, one man installation

• UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC.
