CMS491CP2 1' x 2' Above Suspended Ceiling Storage Box and Column Drop with 2-Gang Filter & Surge - Product - Midwich

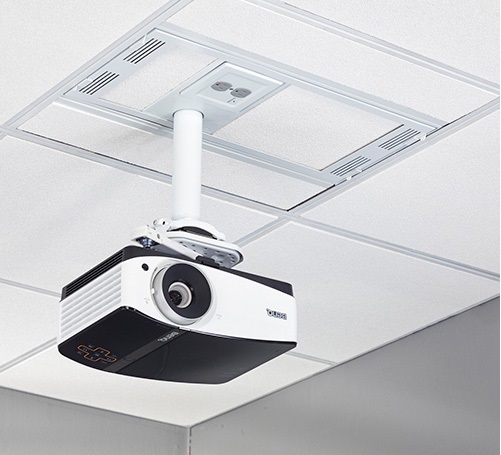

The CMS491CP2 conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.

Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

Column not included, must be purchased separately.

Features

• Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality
• Drop carriage door improves accessibility and serviceability providing full access to equipment
• Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
• Inside the box or facing the room
  • Up to 2 single gang or 1 dual gang outlet
  • 4 nested knockouts for 1-1/4", 1", & ½" diameter conduit
• Built in ventilation
• AV tray supports a variety of AV components
  • Ships with 1 shelf, 2^nd shelf sold separately see CMSUNV1
• Overall weight capacity 100 lbs (45 kg)
  • 50 lbs (22 kg) for projector ceiling plate
  • 25 lbs (11 kg) per shelf location
• Ships with speed connect installation hardware
• Lightweight construction, one man installation
• UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
• TAA Compliant

Surge and Filter Module

• Non-volatile spike protection with LED power indicator
• Non-sacrificial multi-stage technology
• Non-current limiting design passes full power on a regular circuit; redundant protection circuits
• Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
• Line filter reduces common and differential mode noise by up to 40 dB
• Rated for 125V~, 60Hz, 15 A
• 1875 watt maximum
• Ferrite toroid based EMI Filter
• Withstand rating of 240 VAC continuous without damage or loss of protection
