CMS491C 1' x 2' Above Suspended Ceiling Storage Box with Column Drop - Product - Midwich

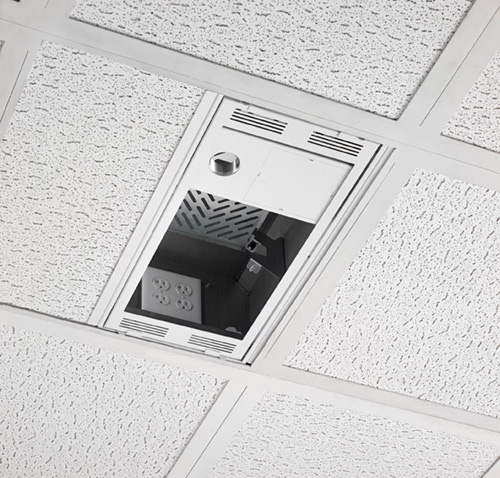

The CMS491C conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.

Column and projector mount not included, must be purchased separately.

Features

• Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality

• Drop carriage door improves accessibility and serviceability providing full access to equipment

• Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time

• Inside the box or facing the room

• Up to 2 single gang or 1 dual gang outlet

• 4 nested knockouts for 1-1/4", 1", & ½" diameter conduit

• Built in ventilation

• AV tray supports a variety of AV components

• Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1

• Overall weight capacity 100 lbs (45 kg)

• 50 lbs (22 kg) for projector ceiling plate

• 25 lbs (11 kg) per shelf location

• Ships with speed connect installation hardware

• Lightweight construction, one man installation

• UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC

• TAA Compliant
