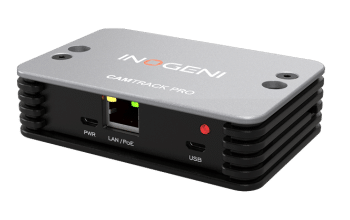

CAMTRACK PRO Multi-camera voice-activated switcher - Product - Midwich

CAMTRACK is a flexible, cost-effective voice-activated multi-camera switcher designed for modern conferencing environments.

How the CAMTRACK Ecosystem works

The CAMTRACK ecosystem brings audio and video together in a seamless, unified workflow, enabling dynamic, professional-grade videoconferencing. By using SHURE microphones to detect active speakers, CAMTRACK intelligently manages PTZ cameras over the IP network and works with INOGENI switchers or the IP2USB converter to ensure the right camera view is delivered to Room PCs or laptops running software CODECs — making every meeting smooth and effortless.

CAMTRACK Applications by Room Type

CAMTRACK accommodates a wide range of needs—from medium corporate meeting rooms and classrooms to large boardrooms, lecture halls, and complex broadcast delegate environments (supporting up to 12 PTZ cameras).

Features

Compatibility

• Fully compatible with SHURE microphones and PTZ cameras.
• The ecosystem has been tested and verified for native compatibility through INOGENI switchers:
  • With major UC systems manufacturers (Room PCs), such as Crestron, Logitech, Lenovo, Poly, MAXHUB, Jabra, and more
  • With Windows, macOS and Linux

Networking and Interfaces

• 10/100 Mbps Ethernet port (LAN/PoE)
• IP protocol support: DHCP, APIPA fallback and manual address configuration

Camera Control

• VISCA over IP (AVer and other)
• Canon XC Protocol
• HDMI/USB and NDI switch triggering

Supported Camera Devices

• Canon, PTZ cameras (XC protocol) – 4K resolution with AI-based auto-tracking and optical zoom options.
  • Models: CR-N100 and CR-N300 for videoconferencing, and the CR-N350, CR-N400, CR-N500 and CR-N700 for large auditorium or broadcast applications)
  • 15x, 20x optical zoom for 4K and 30x (CR-N700) and 40x (CR-N400, CR-N350) Advanced zoom for Full HD
• AVer (VISCA over IP protocol)
• Panasonic PTZ cameras (HTTP protocol)
• Sony PTZ cameras (VISCA over IP protocol)
• Compatible with any PTZ camera implementing the VISCA-over-IP protocol.

Supported SHURE Devices

• CAMTRACK PRO: Up to 8 SHURE ceiling array or conference audio devices
• SHURE Microphones
  • MXA901 Conferencing Ceiling Array Microphone (1 audio zones)
  • MXA920 Ceiling Array Microphone (8 audio zones)
  • MXA910 Ceiling Array Microphone (EOL / predecessor to MXA920)
  • When operated in XYZ mode, the MXA901 and MXA920 allow up to 100 additional individual coverage zones to be configured to match the number of participants or groups to be distinguished.
  • MXA710 Linear Array Microphone up to 4 lobes (2 ft), 8 lobes (4 ft)
  • MXA310 Table Array Microphone up to 4 independent lobes
  • Multiple table microphones
    • Systems such as SHURE MXCW (125 microphones) or MXW neXt (80 microphones) are recognized as a single audio device within CAMTRACK
