C-D9F/OPEN-3 RS–232 to Open End Control Cable - 3' - Product - Midwich

Kramer's C−D9F/OPEN control cables are for RS−232 applications to control devices within a professional AV system. Many Kramer products are RS−232 controllable and equipped with terminal block connector. This RS−232 cable helps to connect them safely to transmit the RS−232 serial commands to a touch−screen system, PC, or other serial controller equipped with D9 connector.

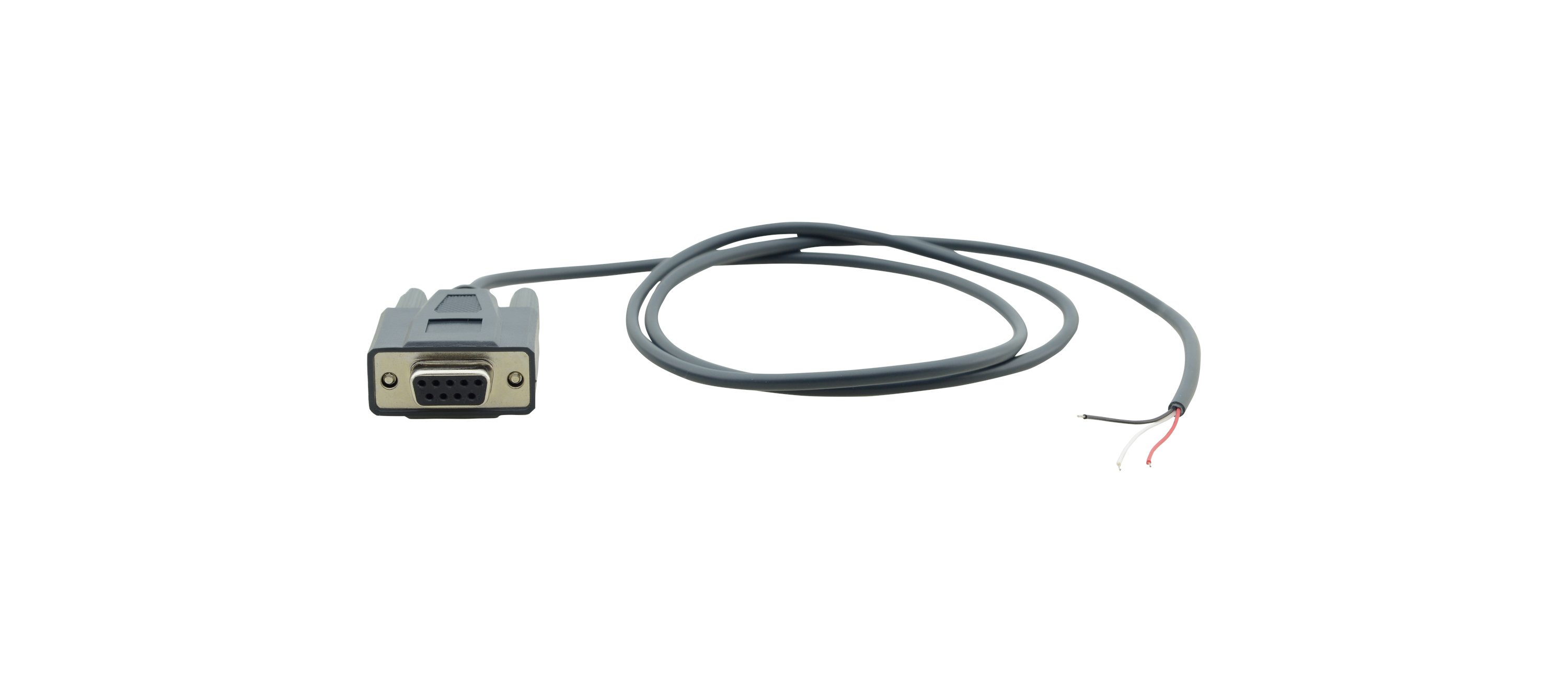

•  Quality Construction — Constructed using three 28AWG isolated conductors, terminated with a molded female 9–pin D–sub connector, nickel plated on one side and open end, non–terminated, on the second side.
•  Pinout — Wired pin to pin on pins 2, 3 & 5.
•  Molded Strain Relief.
•  Stripped & Tinned Wires — At open end.
•  RoHS Compliant.
•  Varied Selection of Lengths — 3 to 50ft (1 to 15m).
