Part of B-Tech's System Xpress range, BTXPS27-W5X5 is a 5x5 wall-mounted solution suitable for any brand of 27" latching dvLED cabinet. Available off-the-shelf, BTXPS27-W5X5 provides a simple to install dvLED mounting solution that can be quoted and shipped at pace, straight from stock.

System Xpress revolutionises dvLED mounting with its innovative, universal design for latching cabinets. Featuring B-Tech’s Patent Pending universal XpressConnect clips instead of cabinet-specific interfaces, this system can be supplied rapidly from stock and quoted like any other stocked solution. The XpressConnect clips effortlessly hook-on and lock into the supplied mounting rails with a quick quarter turn of the twist-lock, enabling fast assembly of wall, floor, or ceiling mounted dvLED installations, making System Xpress the fastest dvLED mounting solution to go from order to install.

Features:

• Patent Pending XpressConnect technology
• Stockable solution - universally compatible with any latching cabinet
• Fast order fulfilment - available off-the-shelf for 5x5 27” cabinet installs
• Fixed pricing - no waiting for a solution to be configured and quoted
• Tool-less twist lock - cabinets ‘hook-on' and lock in with a quarter turn
• Hang cabinets in pairs to speed up the install
• Row height spacer (available separately) to speed up the install
• Close to the wall install
• Additional 4x4, 6x6, and 8x8 mounting kits are available off-the-shelf
• Custom configured kits are also available for other configurations
• Open frame allows panel access for easy servicing and maintenance
• All mounting hardware included and supplied in one box
• 100% plastic free packaging

Specifications:

• Compatible Panels: 27" latching cabinets (Min. width 600 - Max. 610mm)
• Cabinet fixing method: Rear mounted using M6, M8 or M10 fixings
• Height adjustment: +/-5mm
• Depth adjustment: +/-5mm on wall plate (Additional +10mm at cabinet)
• Colour: Black
• For indoor use only

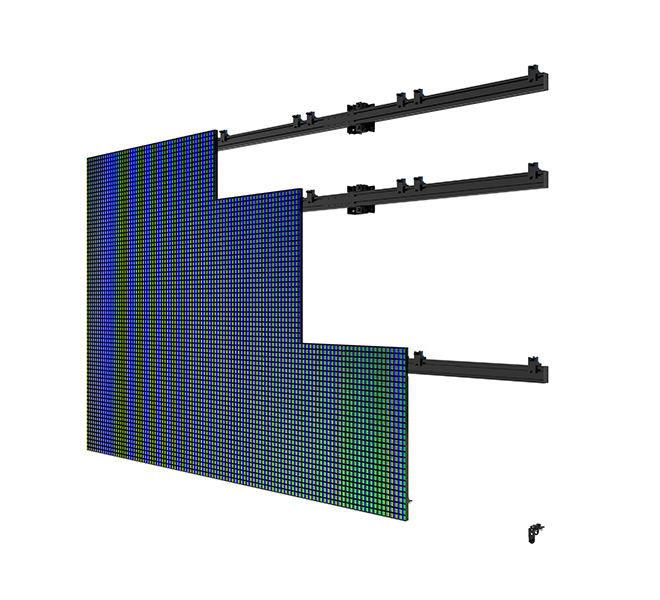

*Product image is indicative of a 5x5 configuration using 27" cabinets
