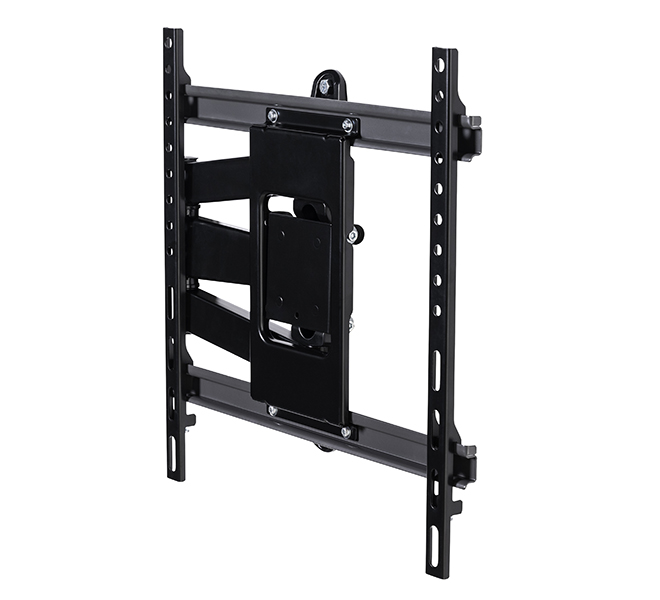

Designed to mount large-sized screens, this ultra-slim wall mount with a double arm features a tilting interface and three swivel points, allowing quick and easy repositioning of the screen, whether folded flat to the wall or at maximum extension. A Cable management clip is included to help route cables along the double arm for a smart installation, ideal for home installations and commercial applications.
Features

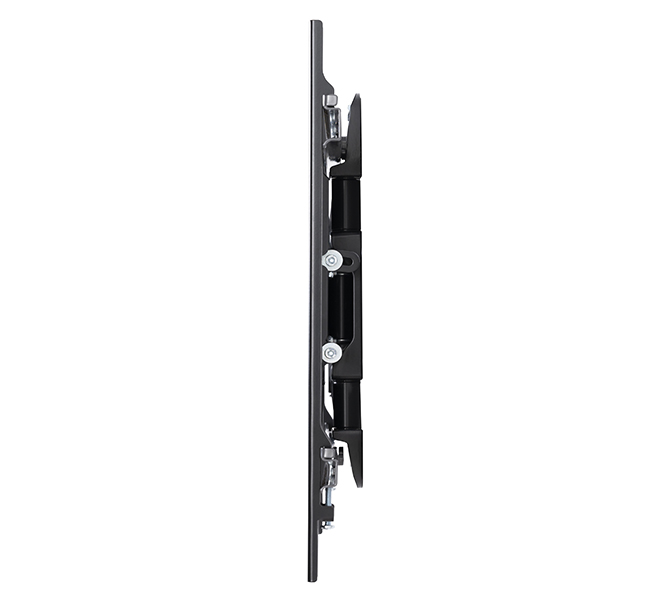

Ultra-slim design allows close to the wall installation when folded flat
Easy tilt and swivel adjustment

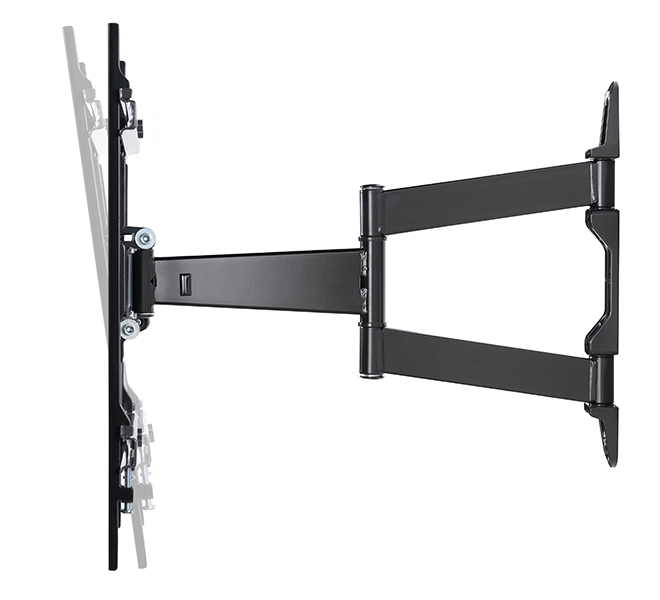

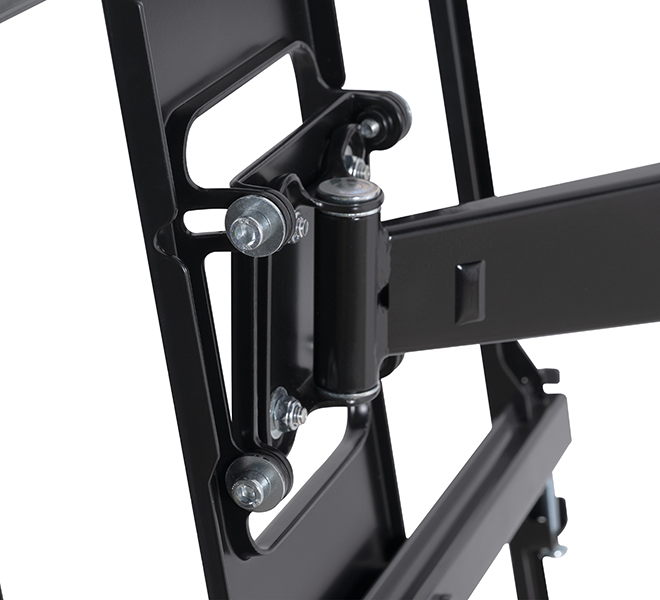

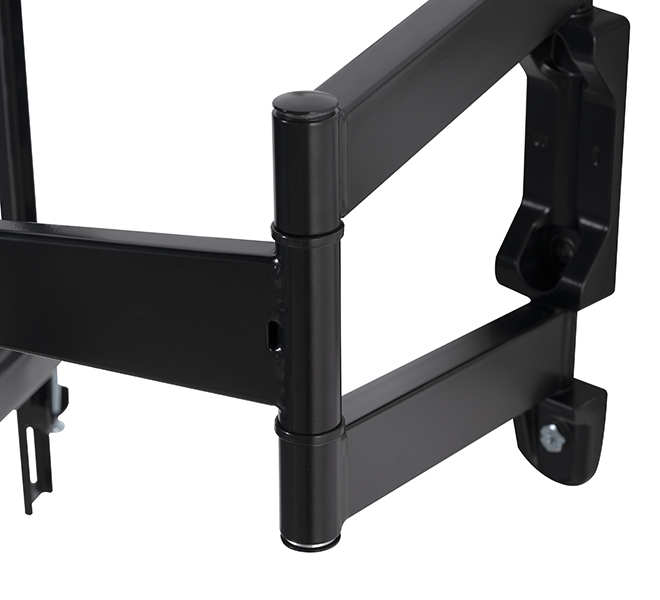

Features three swivel points: 180° at wall, 360° at central pivot and 240° at interface
Lateral adjustment of screen once mounted
Single stud mounting for easy installation
Levelling screws allow adjustment of screen height
Integrated cable management
Simple ‘hook-on’ installation with all mounting hardware included
Specifications
Recommended screen size: up to 55" (140cm)
Max load: 35kg (77lbs)
VESA® & non-VESA fixings: up to 400 x 400mm
Tilt: +10°/-2°
Swivel: 180° (at wall) & 360° (at central pivot)
Distance from wall: Min: 40mm (1.6”) - Max: 450mm (17.7”)
