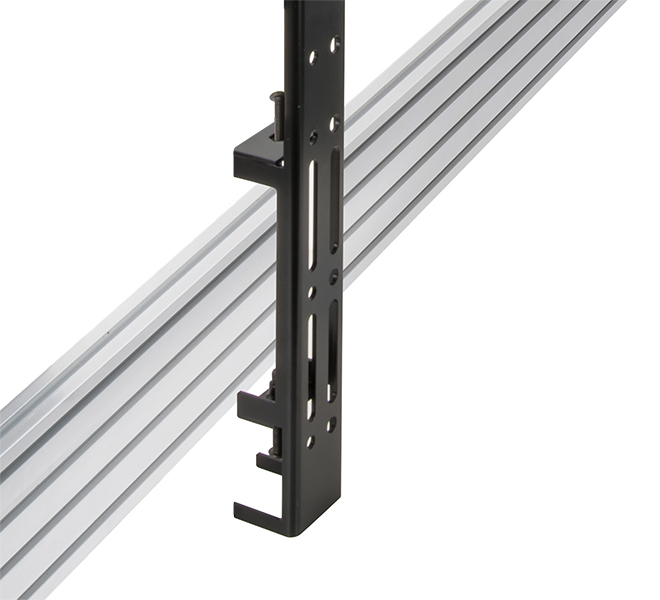

The BT9908 is a dual rail wall mounted solution designed to mount Microsoft's 84" Surface Hub and other large interactive displays over 72". Capable of supporting heavy duty loads, the mount can easily accommodate the weight of extra-large format screens. Levelling screws allow easy height adjustment of the screen once mounted and integrated cable management keeps finished installations neat and tidy. Safety screws also help to prevent un-authorised removal of the screen.

Features

• Designed to mount Microsoft's 84" (213cm) Microsoft Surface Hub display
• Universal design is also ideal for other standard or interactive screens over 72" (183cm) (such as Sahara Clevertouch®)
• High-end aesthetic quality
• Cable management clips (BT8390-CMC) are included to keep the install tidy
• Interface arms include levelling screws to adjust the height of the screen
• Safety screws help prevent unauthorised removal of screens
• Simple 'hook-on' installation
• All mounting hardware included

Specifications

• Recommended screen size: 72" (183cm) up to 120" (305cm)
• Recommended surface hub size: 84" (213cm)
• Max load: 200kg (441lbs)
• Universal fixing compatibility: up to 1400 x 800
• Distance from wall: 52mm (2")
• Colour (mounting rail): Silver
• Colour (interface arms): Black
