BT9240-1X2-500X1000-M10 Universal dvLED Wall Mount - Product - Midwich

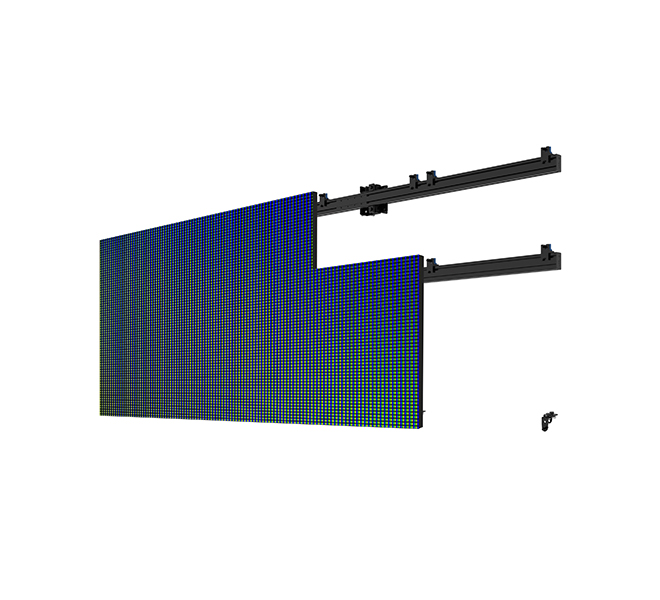

Part of B-Tech's System Xpress range, BT9240 is a universal wall-mounted solution suitable for any latching dvLED cabinet. Quick to quote and available at pace from stock, BT9240 is a simple to install dvLED mounting solution that is available to order in configurations that meet your exact needs.

System Xpress revolutionises dvLED mounting with its innovative, universal design for latching cabinets. Featuring B-Tech’s Patent Pending universal XpressConnect clips instead of cabinet-specific interfaces, this system can be supplied rapidly from stock and quoted like any other stocked solution. The XpressConnect clips effortlessly hook-on and lock into the supplied mounting rails with a quick quarter turn of the twist-lock, enabling fast assembly of wall, floor, or ceiling mounted dvLED installations, making System Xpress the fastest dvLED mounting solution to go from order to install.

Features

• Patent Pending XpressConnect technology
• Tool-less twist lock - cabinets ‘hook-on' and lock in with a quarter turn
• Hang cabinets in pairs to speed up the install
• Row height spacer (available separately) to speed up the install
• Close to the wall install, mounts cabinets 60mm from wall (+/-5mm depth adjustment)
• Open frame allows panel access for easy servicing and maintenance
• All mounting hardware
• 100% plastic free packaging

Specifications

• Compatible Panels: All latching cabinets
• Cabinet fixing method: Rear mounted using M6, M8 or M10 fixings
• Height adjustment: +/-5mm
• Depth adjustment: +/-5mm on wall plate (Additional +10mm at cabinet)
• Colour: Black
• For indoor use only
