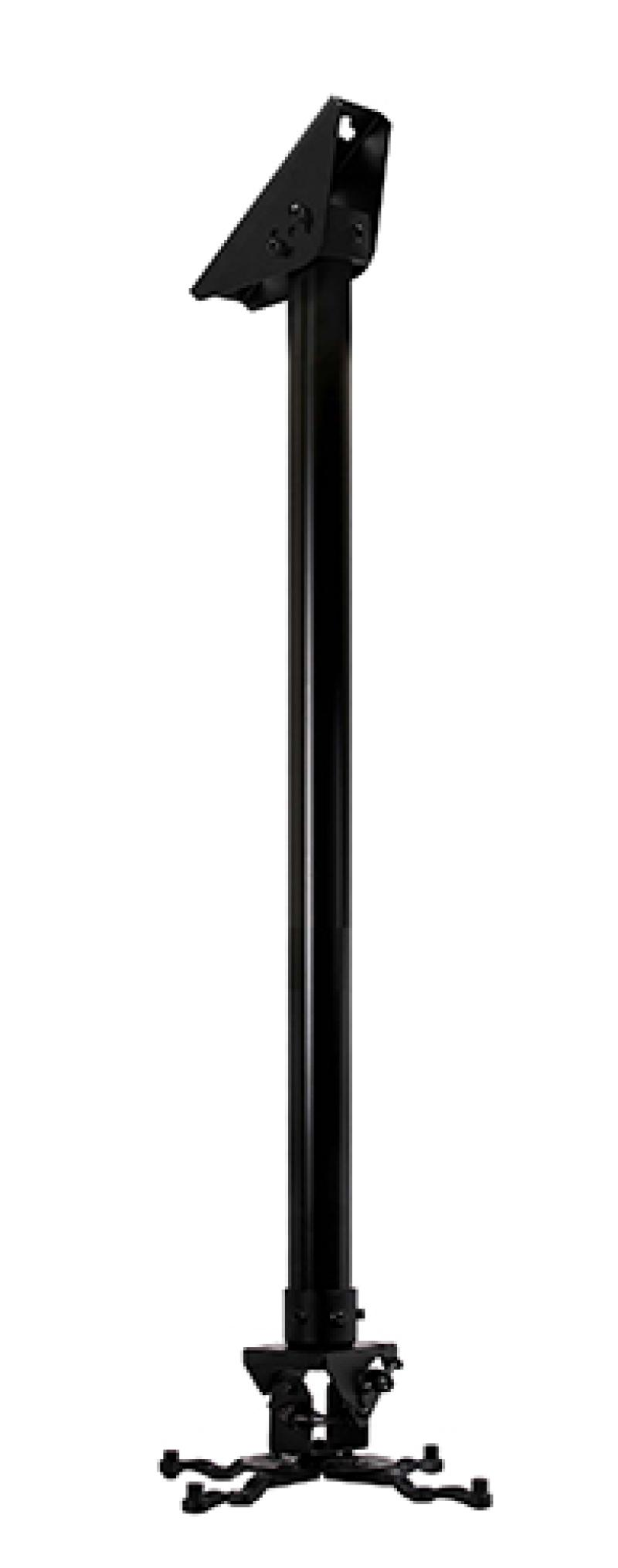

B-Tech SYSTEM 2 - Extra-Large Projector Ceiling Mount with Micro-adjustment - 3m O50mm Pole - BT899XLFD300/BB

List $453.00
MAP $453.00

The BT899XL-FD is a fixed drop ceiling mount which has been designed to mount universal projectors up to 25kg. Available in a choice of 5 pole lengths from just 0.5m up to 3m, this fixed drop mount features an adjustable ceiling plate ideal for mounting to angled ceilings. The BT899XL-FD is designed with easy adjustment of tilt, roll and swivel, with optional micro-adjustment for short throw projectors.

Features

  • Integrated cable management for smart installation
  • Security locking screws and Allen key provided for a secure installation
  • Suitable for angled ceilings
  • Unique ‘Carousel’ mounting plate for universal compatibility
  • Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings

Specifications

  • Max load: 25kg (55lbs)
  • Tilt (pitch): +/-13°
  • Roll: +/-6°
  • Yaw: 360°
  • Ceiling plate tilt: 90°
  • Maximum distance (between fixings: 493mm)
  • Pole length options:
    BT899XL-FD050: 0.50m (19.7") Pole
    BT899XL-FD100: 1m (37.4") Pole
    BT899XL-FD150: 1.5m (59") Pole
    BT899XL-FD200: 2m (78.7") Pole
    BT899XL-FD300: 3m (118.1") Pole

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
BT899XL-FD Specification Sheet.pdf
