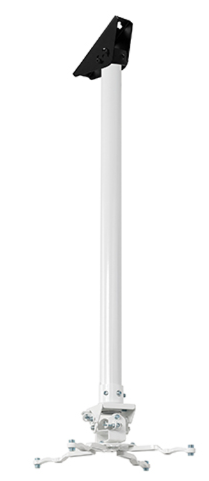

The BT899-FD is a ceiling mounted, universal projector mount designed to mount projectors up to 25kg. Suitable for use with angled ceilings, the BT899-FD features easy adjustment of tilt, yaw & roll plus optional micro-adjustment makes alignment of projections quick & simple. Available in a range of pole lengths to suit your requirements.
Features
Integrated cable management for smart installation
Adjustable ceiling plate suitable for angled ceilings
Security locking screws & Allen key provided for a secure installation
Pole is internally unobstructed for cables to pass through easily
Unique ‘Carousel’ mounting plate for universal compatibility
Optional micro-adjustment ideal for use with short throw projectors
Suitable for projectors using M2.5, M3, M4, M5 & M6 fixings
Quick & easy assembly
All mounting hardware included
Specifications
Maximum load: 25kg (55lbs)
Tilt (pitch): +/-13°
Roll: +/-6°
Yaw: 360°
Ceiling plate tilt: 90°
Maximum distance between fixings: 370mm (14.62)
Pole length options: BT899-FD055: 0.50m (19.7") Pole BT899-FD100: 1m (39.4") Pole BT899-FD150: 1.5m (59") Pole BT899-FD200: 2m (78.7") Pole BT899-FD300: 3m (118.1") Pole
