BT899-FD050/W Fixed Drop Projector Ceiling Mount - 0.5m Pole - Product - Midwich

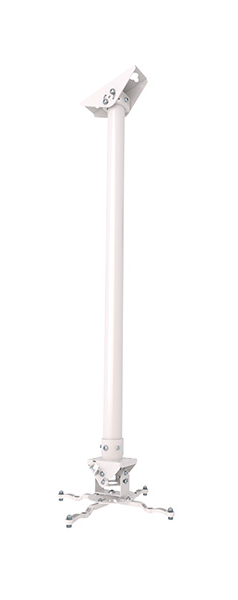

The BT899-FD is a ceiling mounted, universal projector mount designed to mount projectors up to 25kg. Suitable for use with angled ceilings, the BT899-FD features easy adjustment of tilt, yaw & roll plus optional micro-adjustment makes alignment of projections quick & simple. Available in a range of pole lengths to suit your requirements.

Features

• Integrated cable management for smart installation
• Adjustable ceiling plate suitable for angled ceilings
• Security locking screws & Allen key provided for a secure installation
• Pole is internally unobstructed for cables to pass through easily
• Unique ‘Carousel’ mounting plate for universal compatibility
• Optional micro-adjustment ideal for use with short throw projectors
• Suitable for projectors using M2.5, M3, M4, M5 & M6 fixings
• Quick & easy assembly
• All mounting hardware included

Specifications

• Maximum load: 25kg (55lbs)
• Tilt (pitch): +/-13°
• Roll: +/-6°
• Yaw: 360°
• Ceiling plate tilt: 90°
• Maximum distance between fixings: 370mm (14.62)
• Pole length options:
  BT899-FD050: 0.50m (19.7") Pole
  BT899-FD100: 1m (39.4") Pole
  BT899-FD150: 1.5m (59") Pole
  BT899-FD200: 2m (78.7") Pole
  BT899-FD300: 3m (118.1") Pole
