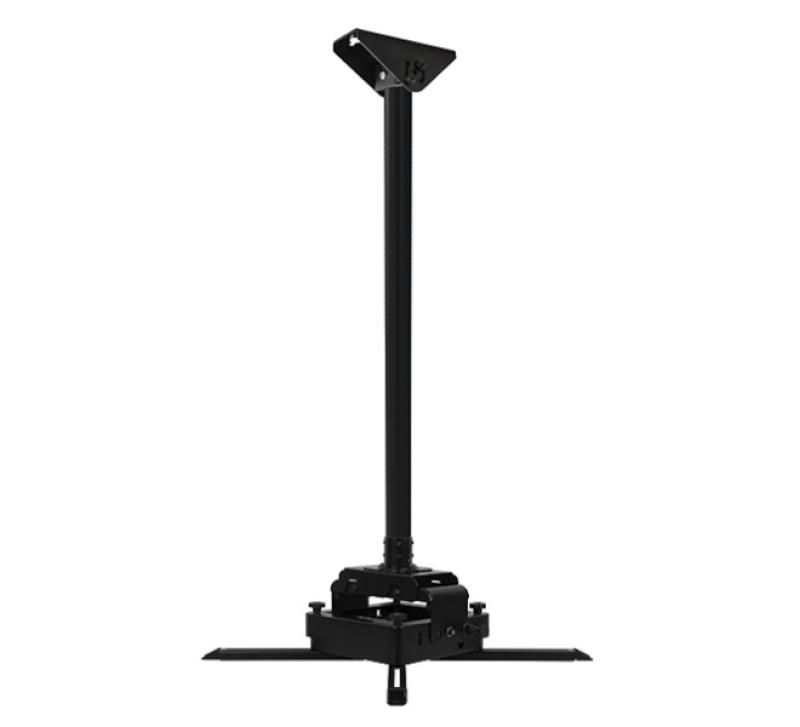

BT893-FD100/B Fixed Drop Heavy Duty Projector Ceiling Mount - 1m Pole - Product - Midwich

Designed to mount projectors up to 70kg from the ceiling, the BT893-FD heavy duty projector is available in a range of fixed ceiling drop lengths and features an adjustable ceiling plate for use with angled ceilings. Easy adjustment of tilt, yaw and roll, with additional micro-adjustment at each corner makes alignment of projections quick and simple. The BT893 ideal for large scale and precision applications such as events and staging or for edge-blending and projection mapping.

Features

• Designed to mount heavy duty projectors from the ceiling
• Features easy, incremented tilt adjustment
• Extendable mounting plate features 4-point micro-adjustment for perfect
  alignment of the projected images
• Micro-adjustment is altered using thumbwheels for better grip and a more
  controlled adjustment
• Quick and easy assembly
• Adjustable ceiling plate suitable for angled ceilings
• Optional extension legs can be used to accommodate larger fixing patterns
• Ø50mm pole is internally unobstructed for cables to pass through easily
• Suitable for projectors using M6, M8, M10 and M12 fixings

Specifications

• Max load: 70kg (155lbs)
• Tilt: +20°/-10° (+/-5° with micro-adjustment)
• Yaw (pole mounted): +/-45°
• Roll: +/-5°
• Ceiling plate tilt: 90°
• Ceiling drop option:
  BT893-FD025: 0.25m (9.82) pole
  BT893-FD050: 0.50m (19.7") pole
  BT893-FD100: 1m (37.4") pole
  BT893-FD150: 1.50m (59") pole
  BT893-FD200: 2m (78.7") pole
  BT893-FD300: 3m (118.1") pole
• Max distance (between fixings): 873mm (34.4")
• Max distance (square fixing pattern): 618mm (24.3")
