Ideal for assembling videowalls and for other multi-screen applications, these interface arms are designed to mount medium to large sized screens on to System X horizontal mounting rails. The universal design is compatible with all videowall screens and the modular design allows an almost endless number of configurations to be assembled, in both landscape or portrait orientations. Tool-less micro-adjustment allows perfect alignment of displays and a mounted depth of just 86.1mm* for a close to the wall installation.
Features
Ideal for videowalls and other multi-screen installations
Universal design compatible with most screens
Suitable for landscape or portrait mounting

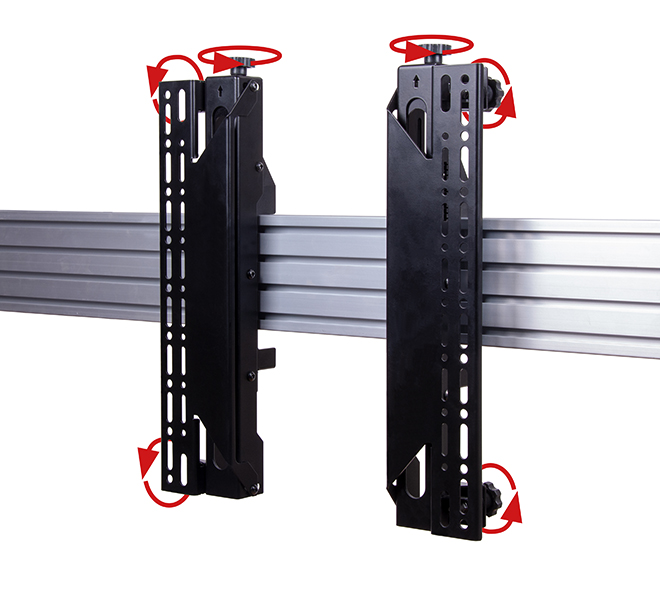

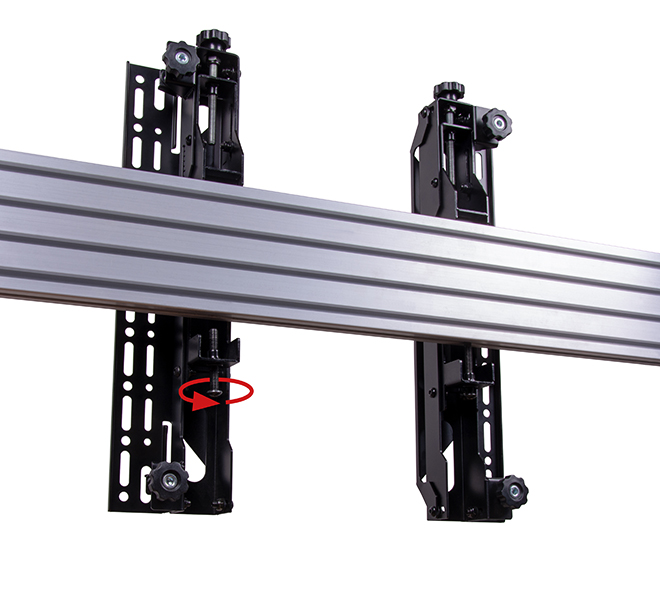

Tool-less micro-adjustment for seamless display alignment
Safety screws help prevent unauthorized removal of screens

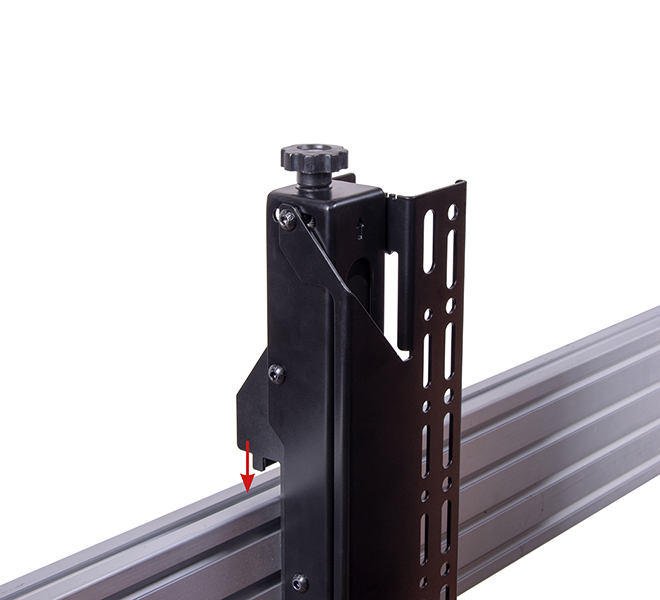

Simple ‘hook-on’ installation
TUV certified
Specifications
Recommended screen size: 39" (99cm) - 75" (190cm)
Max load: 50kg (110lbs)
VESA® & non-VESA fixings: up to 400mm (15.7")* *vertical dimension
* The VESA specification of the BT8390-VESA400MAF refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary. BT7564 Interface Adaptor Arms can be used to increase the maximum vertical fixings to 600mm for larger screens.
