BT8321/B System X Portrait Signage Mount - Product - Midwich

Designed to mount screens in a portrait orientation, the BT8321 is part of the dynamic System X Range and therefore features a contemporary, lightweight yet incredibly strong design with a high-end aesthetic quality, mounting the screen close to the wall whilst leaving enough space for easy access to screen inputs and cabling. Also suitable for mounting screens in landscape style, height adjustment screws allow mounted screens to be levelled perfectly after installation and safety screws feature as standard to help prevent unauthorized screen removal.

Features

• Can also be used for landscape installations

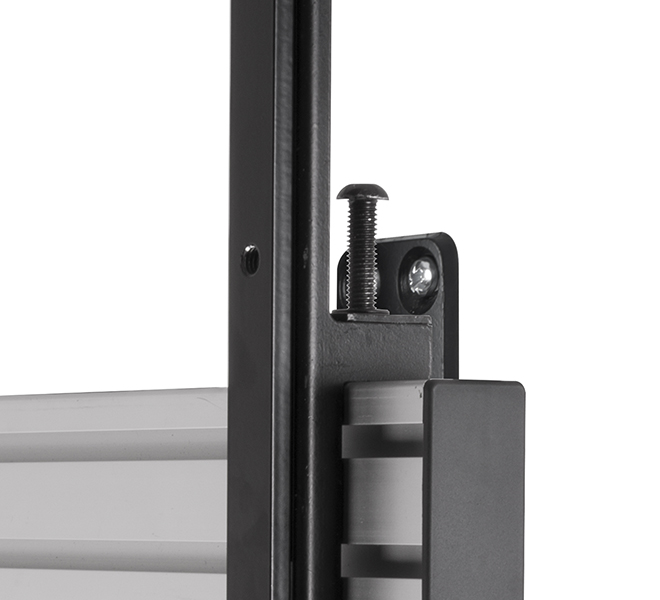

• Arms feature levelling screws to adjust the screen height
• Includes interface adaptor arms as standard for VESA fixings up to 600 x 400
• Pole mounted version for ceiling and floor mounting is available on request

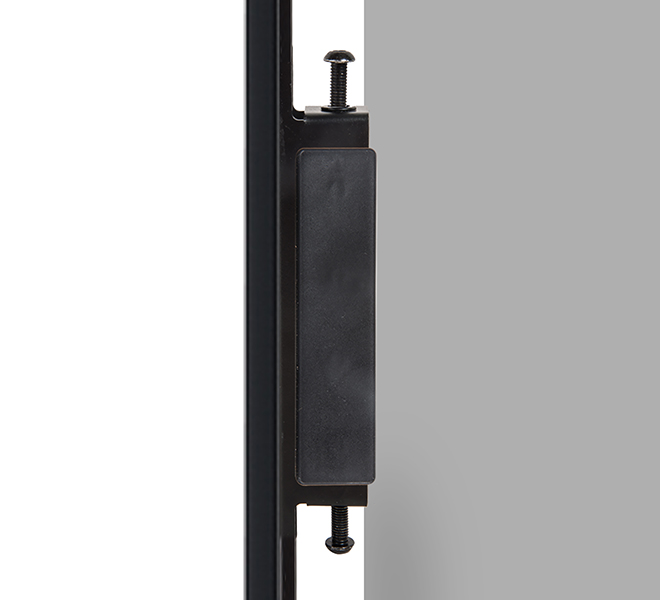

• Safety screws help prevent unauthorized removal of screens
• Suitable for portrait mounting LG's 88BH7D 88" Ultra-Stretch Digital Signage

Specifications

• Recommended screen size: up to 65" (165cm)
• Max load: 70kg (154lba)
• VESA® fixings: 600 x 400
• Distance from wall: 54mm* (2.1")
• Colour (horizontal rail): Black or Silver
• Colour (VESA arms): Black

  *Please note the total dimension includes the interface adaptor arms. If only using
  up to VESA 400 x 400 the depth can be reduced by 6mm by removing the adapter arms.
