Designed to make video wall installations as quick and simple as possible, this modular video wall mount can be used to create unlimited video wall configurations in both landscape and portrait format. The BT8312 low profile design is ideal for mounting into walls with a shallow recess or when space in front of the wall is minimal. 8 points of micro-adjustment makes accurate screen alignment quick and easy and the soft opening features a controlled release enabling access to the rear of the mounted screen for servicing and maintenance.
Features
Slim design ideal for low profile installs on walls or mounting in recesses
Modular mount allows video wall assembly in an unlimited number of configurations
Suitable for landscape or portrait screen mounting
Pop-out system with soft opening provides a safe and easy service access

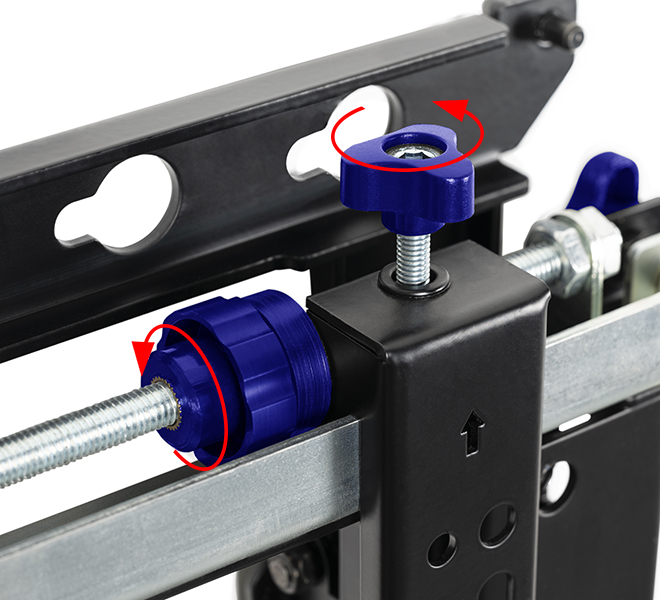

Tool-less micro-adjustment of +/-7.5mm (0.3") at each corner for seamless display alignment

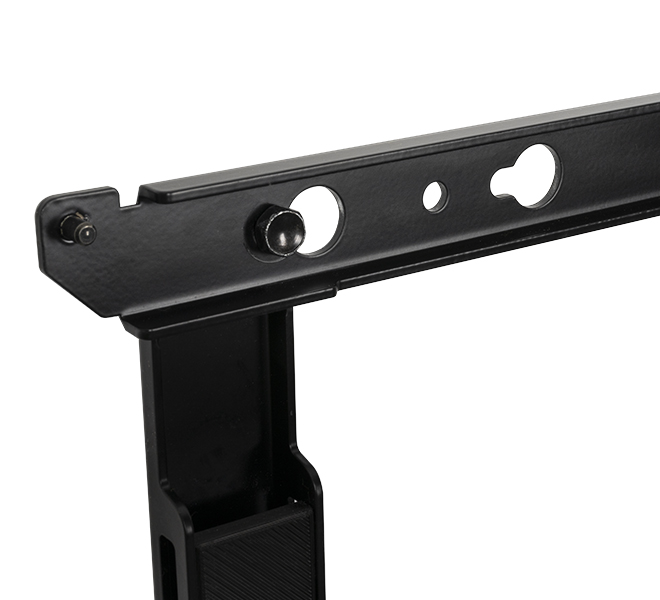

Keyhole mounting for quick and easy installation
Suitable for both wall or pole mounting
Screen specific wall plate spacers kits are available (separately) to speed up installation times

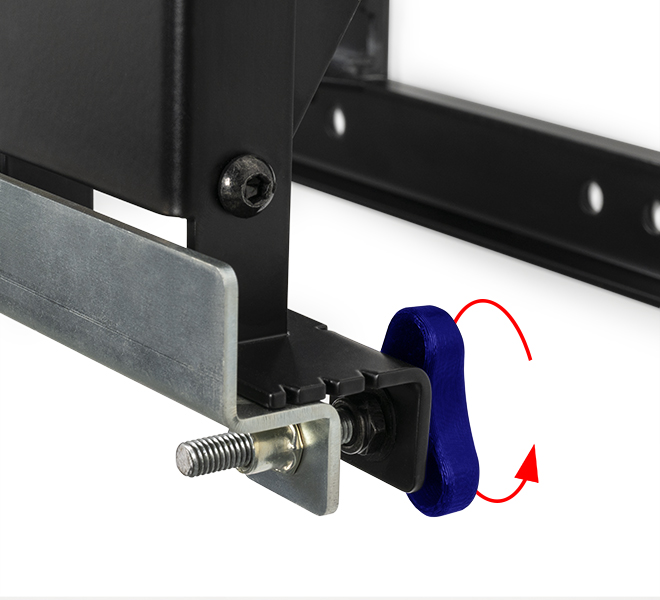

Integrated locking mechanism prevents accidental pop-out of mount
Safety screws help prevent unauthorized removal of screens
Adaptor arms for VESA 800 x 400 fixings (BT7565) available separately
VESA® compatibility (as standard): 200 x 100 to 400 x 400
VESA® compatibility (with included adaptors): up to 600 x 400*

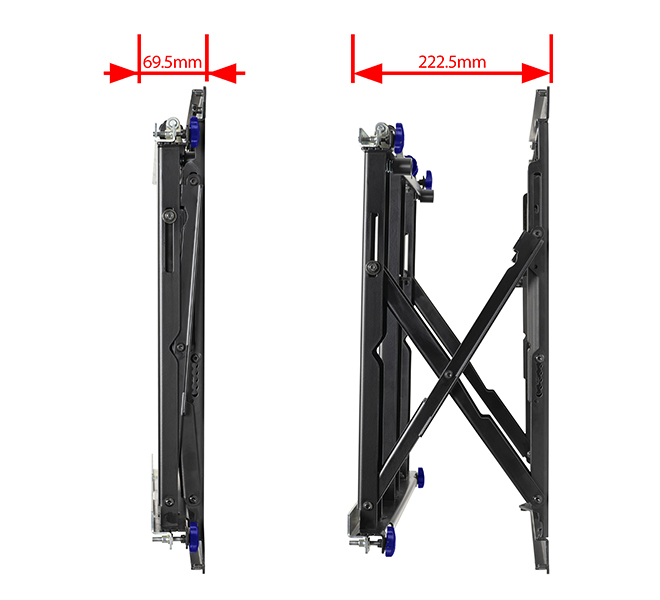

Flat to wall depth: 69.5mm (2.7") (+/-7.5mm (0.3") with micro-adjustment)
Popped out depth: 222.5mm (8.8") (+/-7.5mm (0.3") with micro-adjustment)
Tool less micro-adjustment: +/-7.5mm (0.3") per corner
Screen height adjustment: +15mm (0.6")
*Please note using the included Interface Adaptor Arms to mount VESA 600 x 400 screens will increase the total depth of the product by 6mm (0.2"), for a total depth of: 75.5mm (3") or 228.5mm (9") whilst popped out.
