Designed to mount extra-large screens, the heavy duty BT8310XL is capable of mounting screens up to 125kg in both landscape and portrait orientations. With reinforced scissor arms, this wall mount is ideal for mounting the largest sized screens and features an easy to use pop-out function and 8-point micro-adjustment, making installation and alignment into a recessed wall both quick and simple. Access to the rear or sides of the screen for maintenance or cabling is possible through the pop-out feature, with an additional locking kit accessory available (separately) to prevent unauthorized access if required.

Features

• Perfect solution for mounting large heavy duty screens into a recessed wall
• Suitable for landscape or portrait screen mounting

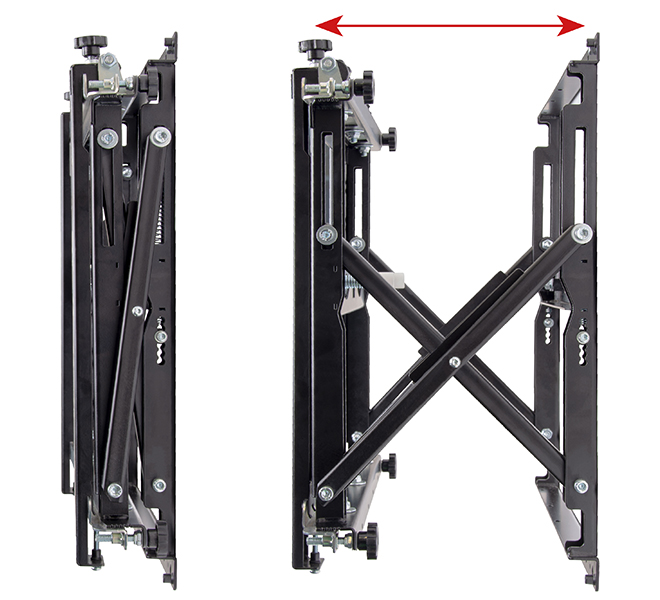

• Push to open / push to close system provides quick and easy service access
• Tool-less micro-adjustments at 8 points for seamless display alignment
• Suitable for both wall or pole mounting
• Integrated cable management
• Locking kit (BT8310-LK) to prevent accidental pop-out of mount is also available (separately)
• Safety screws help prevent unauthorized removal of screens
• Includes Interface Adaptor Arms for use with screens with VESA 600 x 400 fixings (larger interface adaptor arms are available, contact us for more information)
• All mounting hardware included

Specifications

• Recommended screen size: 42" (106") - 120" (305")
• Min / Max Load: 70kg (154lbs) - 125kg (275lbs)
• VESA® compatibility (as standard): 200 x 100 to 400 x 400
• VESA® compatibility (with included Adaptor Arms): up to 600 x 400*
• Flat to wall depth: 101mm* (4") (+/-7mm (0.3") with micro-adjustment)
• Popped out depth: 293mm* (11.5") (+/-7mm (0.3") with micro-adjustment)
• Available in Black

* Please note using the Interface Adaptor Arms to mount VESA 600 x 400 screens will increase the total depth of the product by 6mm (0.2"), for a total depth of 107mm (4.2"), or 299mm (11.8") whilst popped out (+/-7mm (0.3") micro-adjustment).
