Ideal for screens up to 75"

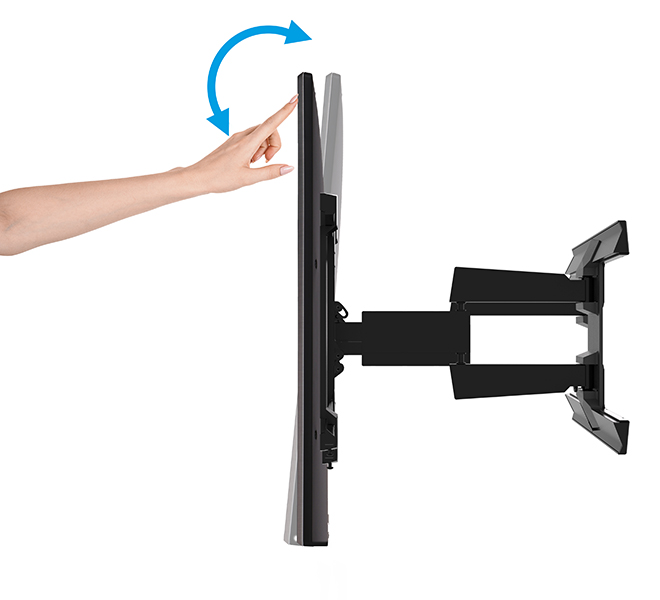

Designed for large screens up to 75", this universal twin-cantilever wall mount combines strength and versatility with effortless usability. B-Tech's UltraGlide Tilt technology allows users to reposition displays up to 50kg with a simple touch, securely holding the tilt in place. Featuring swivel points at the wall and interface, the mount enables quick and smooth screen adjustments, whether folded flat against the wall or fully extended. Compatible with 16" stud walls, brick, and concrete surfaces, this mount is engineered for both commercial and home installations.

Features

• B-Tech's UltraGlide Tilt technology allows easy, secure screen adjustment
• Printed template for wall drilling makes installation quick and easy
• Swivel points enables quick, smooth screen positioning
• Ideal for mounting across 16" stud walls
• Integrated cable management throughout the mount
• Suitable for both landscape and portrait mounting
• Tilt can also be fixed at selected angles of -2˚,0˚& 15˚

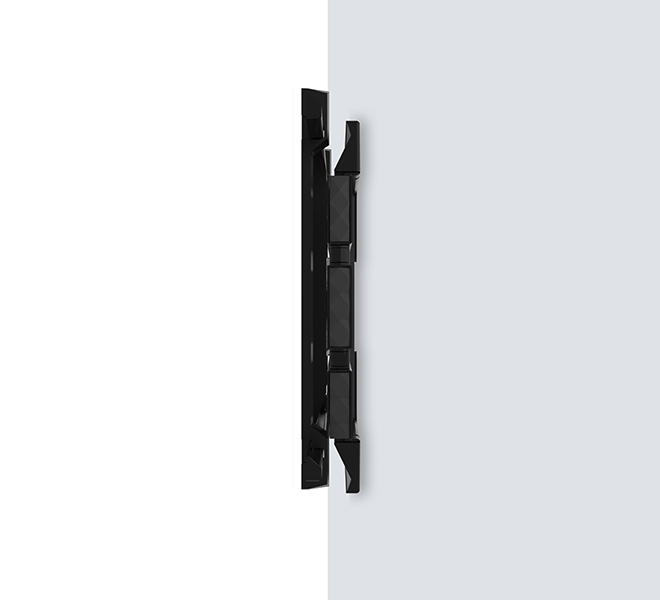

• Slim-line design allows close-to-wall installation when folded flat
• Lateral adjustment of screen after mounting
• Toolless screen levelling
• Safety screws to prevent unauthorised screen removal
• Cover plates included for an attractive finish
• Simple 'hook-on' installation with all mounting hardware included
• 100% plastic free packaging

Specifications

• Recommended screen size: up to 75"
• Max load: 50kg (110lbs)
• VESA® compatibility: up to 600mm (23.6")  x 400mm (15.7")
• Tilt: +14˚/ -3˚
• Screen levelling: + / -3˚
• Swivel: 180° at wall & interface
• Lateral adjustment: + / -20mm
• Distance from wall: Min: 52mm (2") - Max: 577mm (22.7")
• Colour: Black
