B-Tech Pull-Out Flat Screen Wall Mount with In-Wall AV Storage Tray (VESA 600 x 400) - BT7896/B

List $444.45
MAP $444.45

The BT7896 is a versatile pull-out wall mount for medium to large screens, combining service-friendly design with adaptable functionality. Push-to-release arms allow quick rear access without removing the screen, while adjustable depth, tilt, and swivel provide precise positioning. The integrated AV tray can be removed, re-positioned laterally inside the wall bracket, or mounted to the side to avoid mains sockets and cable inputs etc. Its slim profile is ideal for low-profile or recessed installations, and features such as cable management and levelling adjustment ensure a clean, professional finish.

Features

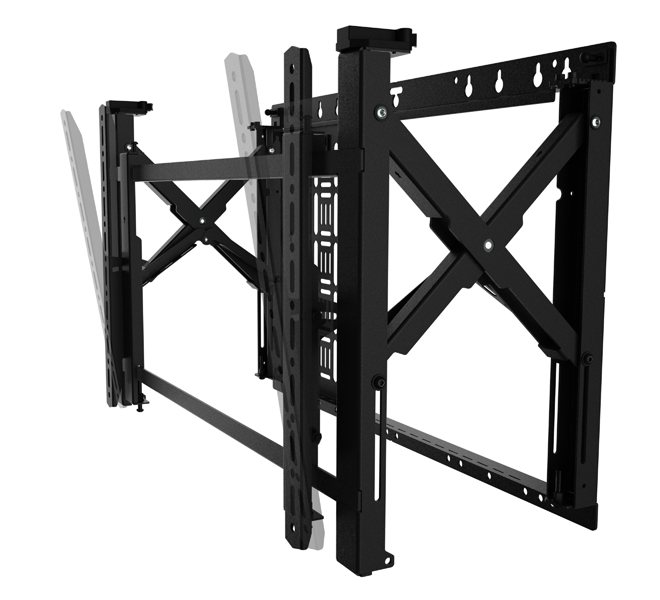

  • Push-to-release arms provide simple service access without screen removal
  • Lockable depth adjustment ensures a precise fit in recesses of different sizes
  • Integrated AV tray can be repositioned to the side to of the mount to avoid obstructions (Max load of tray increases to 10kg)
  • Pull-out function ideal for recess mounting
  • Lockable in the closed position and compatible with a padlock for added security (padlock not included)
  • Quick release AV tray (when mounted inside the wall plate)
  • Additional Storage Tray (BT7896-Tray) available separately
  • Adjustable depth, tilt, and swivel for precise screen positioning
  • Keyhole wall mounting for fast, hook-on installation
  • Includes cable straps and routing for tidy cable management
  • Drilling template included
  • 100% plastic-free packaging

Specifications

  • Max recommended screen size: 75" (190cm)
  • Max screen load: 70kg
  • VESA® & non-VESA fixings: up to 650 x 400mm
  • Tilt: 2° upward / 12° downward
  • Depth adjustment: +73.5mm
  • Distance from wall closed flat: Min: 91mm - Max: 164mm
  • Distance from wall closed with full-tilt: Min: 161mm - Max: 234mm
  • Distance from wall popped out: 301mm flat - 371mm full-tilt
  • Max tray load when fitted into the mount: 5kg
  • Max tray load when wall mounted to the side of mount: 10kg
  • Storage tray dimensions: H: 407mm W: 274mm
  • Colour: Black



Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin CN
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
UPC code 5019318309731
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
BT7896 - Product Specification Sheet - English.pdf
