BT7502/B Interface Adaptor Plate - Product - Midwich

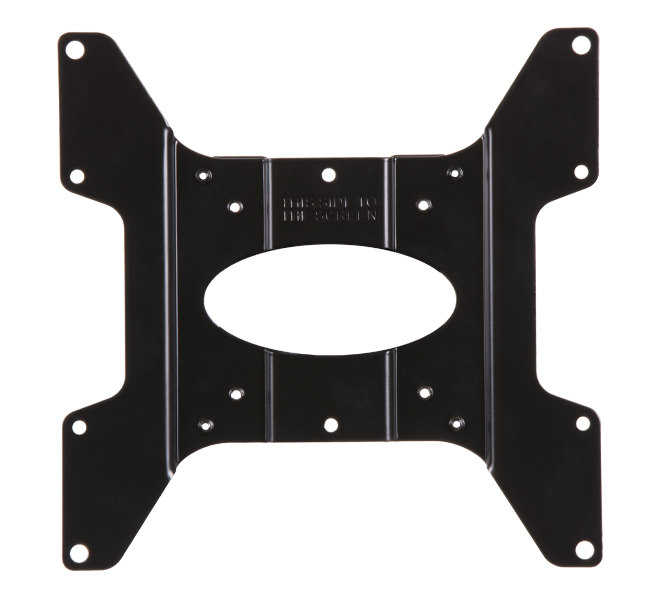

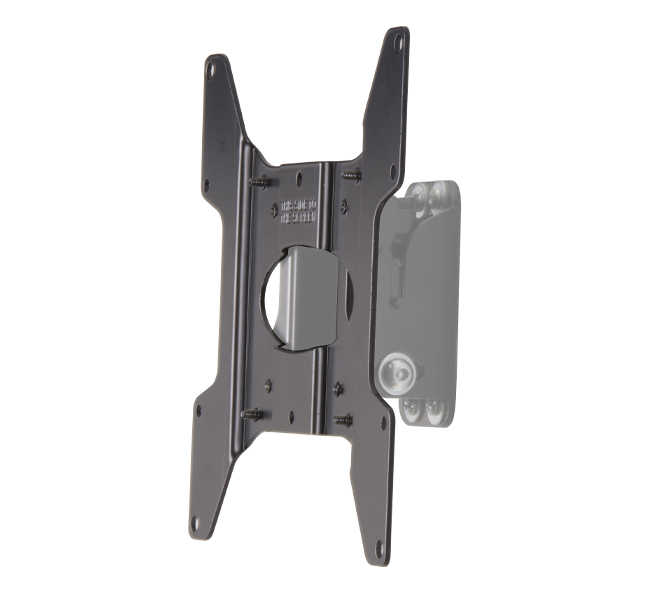

The BT7502 Interface Adapter Plate enables B-Tech Flat Screen Wall Mounts of a smaller VESA size (75mm or 100mm) to be expanded to 200mm. Suitable for both landscape and portrait applications the BT7502 easily fixes on to interface plates / arms using the screws provided and the slim design keeps the depth of the install to a minimum.

Features

• Allows mounts using VESA 75mm x 75mm, 100mm x 100mm, or 200mm x 100mm fixings to be increased to VESA 200mm x 200mm or 200mm x 100mm
• Can be used for both landscape and portrait installations
• Adaptor arms are a slim design to keep the depth of the install to a minimum
• Easily fixes onto interface plates / arms using the screws provided

Specifications

• VESA Compatibility: 200mm x 100mm & 200mm x 200mm
• Max load: Dependent on mount to which BT7502 is attached
• Depth increase to the install: 8mm (0.3")
