SYSTEM 2 - I-Beam / Girder Mount for O50mm Poles - BT7017/B

List $185.00
MAP $185.00

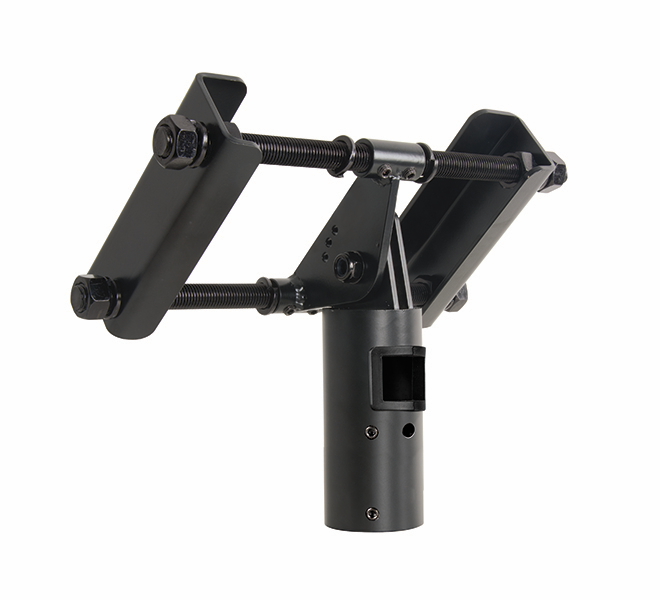

The BT7017 enables the suspension of pole mounted solutions up to 140kg from I-Beam girders. Compatible with B-Tech’s range of BT7850 Ø50mm poles the locking bolt securely sets the pole vertically at any angle up to 36 degrees.

Features

  • Adjustable I-Beam (girder) mount for use with 50mm poles

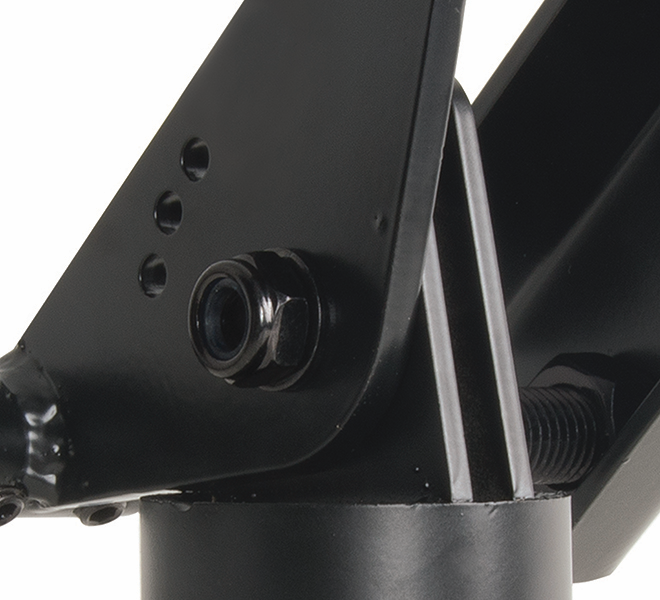

  • Locking bolt included to securely set the pole vertical at any angle up to 40°

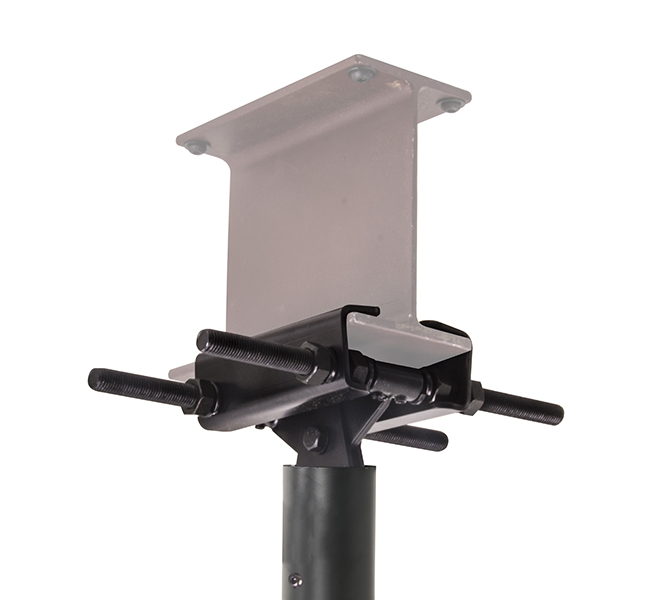

  • Fits I-Beams and thick steel from 80mm (3.1") - 250mm (9.8") in width

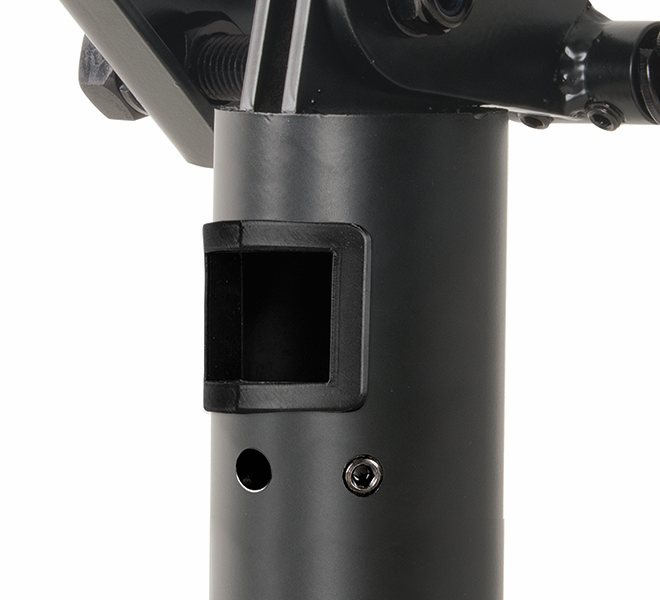

  • Integrated cable management

Specifications

  • Max load: 140kg (308lbs)
  • Tilt: up to +/- 36°
  • Adjustable width 80mm (3.1") - 250mm (9.8")

Shipping
Harmonize code 83024200
UPC code 811867034318
Country of origin CN
Master product height 0.0
Shipping height (in.) 3.78
Master product width 0.0
Master carton quantity 1.0
Master product length 0.0
Quantity unit of measure EA
Shipping width 13.03
Shipping depth 9.45
Shipping weight 7.88
Master product weight 29.34
BT7017 Specification Sheet.pdf
