BT5229/B Elements Extra - Double Arm Wall Mount with Tilt & Swivel - Product - Midwich

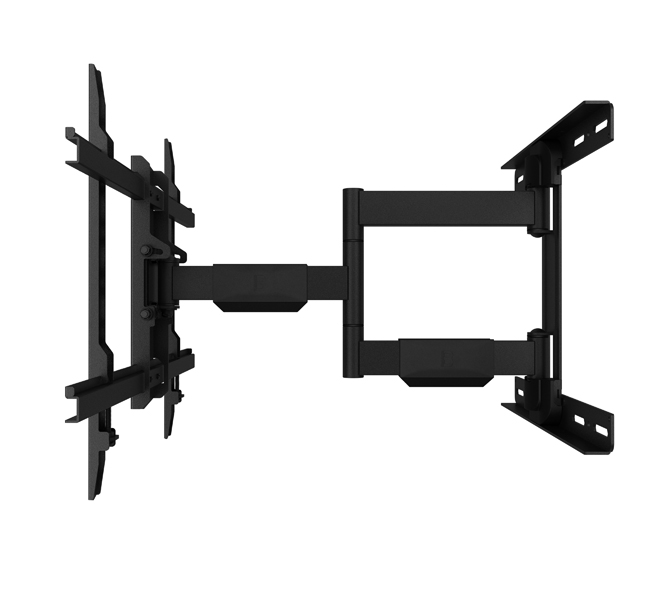

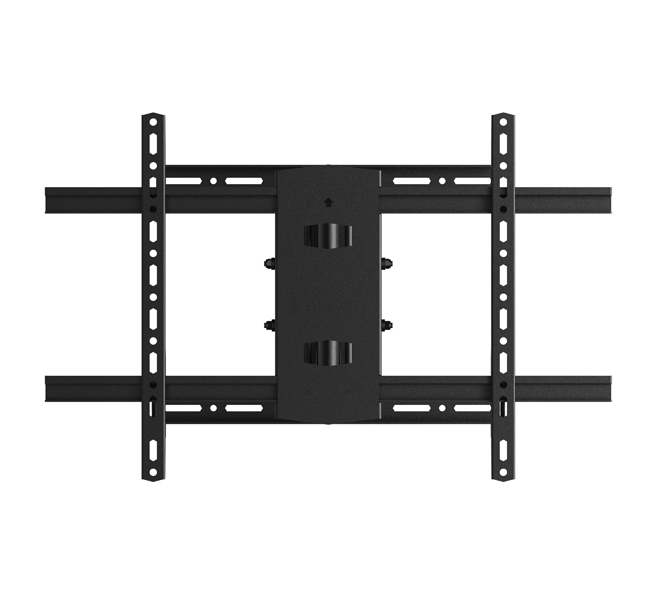

Designed to mount medium / large screens, this articulating wall mount features an easy to tilt interface and three swivel points for quick, smooth repositioning of the screen - whether folded flat to the wall or at maximum extension. Suitable for mounting across 16" stud walls, the bracket also features cable management for a tidy mounting solution. The BT5229 is ideal for both commercial and home installations.

Features

• Ideal for mounting across 16" stud walls
• Slim-line design allows close-to-wall installation when folded flat
• Easy tool- less tilt adjustment of the screen
• Three points of swivel adjustments of the mount
• Depth adjustment for close to wall and extension from the wall
• Lateral adjustment of the screen once mounted
• Suitable for portrait and landscape mounting
• Screen levelling of up to 5° in either direction
• Safety screws prevent unauthorised removal of screens
• Cable management
• Simple 'hook-on' installation with all mounting hardware included
• 100% plastic free packaging

Specifications

• Recommended Screen Size: up to 65" (165cm)
• Max load: 35kg (77lbs)
• VESA® compatibility: up to 600 x 400
• Tilt: 12° downward / 2° upward
• Screen levelling: +/-5°
• Swivel: 180°
• Distance from wall: Min: 57.6mm (2.1") - Max: 497.8mm (19.5")
• Colour: Black
