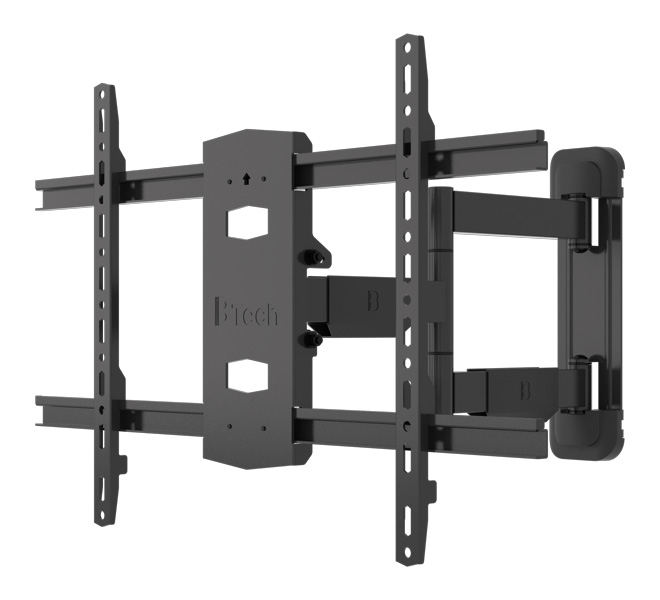

Designed to mount medium/large screens, this articulating wall mount features an easy to tilt interface and three swivel points for quick, smooth repositioning of the screen - whether folded flat to the wall or at maximum extension. Featuring cover plates and cable management for a tidy mounting solution, the BT5226 is ideal for both commercial and home installations.
Features:
Depth adjustment for close to wall and extension from the wall
Slim-line design allows close-to-wall installation when folded flat
Easy toolless tilt adjustment of the screen
Three points of swivel adjustments of the mount
Lateral adjustment of the screen once mounted
Suitable for portrait and landscape mounting
Screen levelling of up to 5° in either direction
Safety screws prevent unauthorised removal of screens
Cable management
Simple 'hook-on' installation with all mounting hardware included
100% plastic free packaging
Specifications:
Recommended Screen Size: up to 65" (165cm)
Max load: 35kg (77lbs)
VESA® compatibility: up to 600 x 400
Tilt: 12° downward / 2° upward
Screen levelling: +/-5°
Swivel: 180°
Distance from wall: Min: 54.6mm (2.1") - Max: 494.8mm (19.5")
