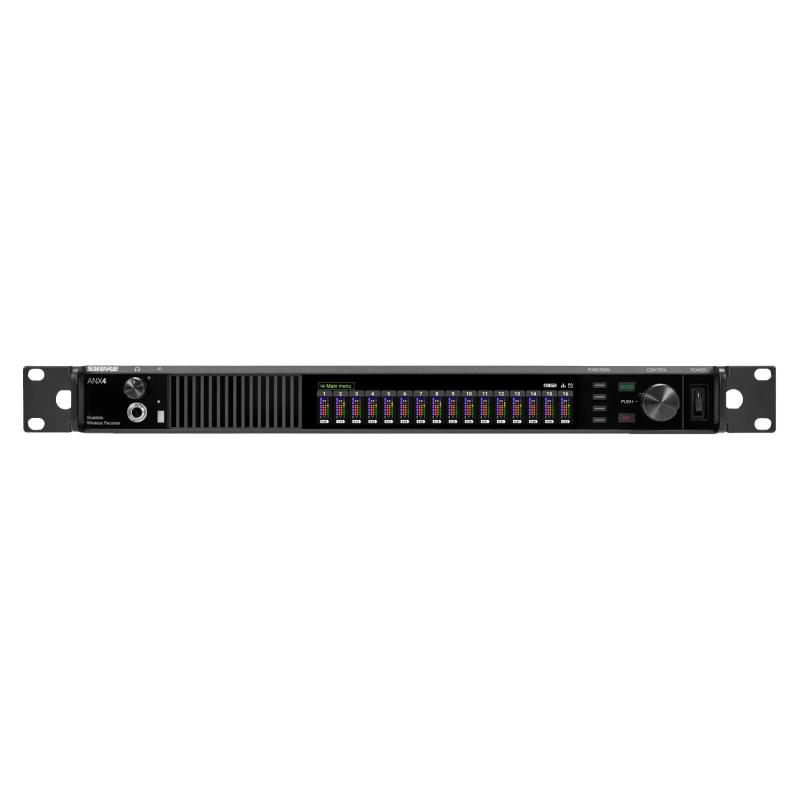

The ultimate flexible high-tier, high channel count wireless receiver, ANX4 provides up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless, enabled by digital licenses available for purchase in single- and four-channel increments (sold separately). All exceptional features found in award-winning Axient Digital and ULX-D receivers that have made them industry standards are available in the ANX4. Whether you activate ANX4 in Axient Digital or ULX-D transmission mode, ANX4 maximizes your budget and rack space in delivering large channel counts in a 1RU format while also streamlining your antenna configuration. Shure ANX4 is scalable high-tier wireless that adapts to your needs.

• Scalable Wireless Receiver for use with Axient Digital and ULX-D wireless systems
• Receives up to 16 channels of Axient Digital or 24 channels of ULX-D in a single rack space
• Channel licenses are perpetual licenses, available in single- and four-channel options (sold separately)*
• Purchased channel licenses can be activated in one ANX4 and later removed and activated in another ANX4, as needed, conveniently via ShureCloud user account
• Wide tuning range covers 174 MHz to 2 GHz, covering all Axient Digital and ULX-D options (except for the ULX-D 902 MHz band)
• All Axient Digital or ULX-D features included**
• Large, 6.6-inch front panel color display
• Five-segment Channel Quality meter displays RF signal-to-noise
• ¼-inch front-panel headphone connector for monitoring with Dante Browse (for both Axient Digital and ULX-D)
• Streamlined and cost-saving antenna setup for large-scale wireless deployment scenarios
• 4 x Ethernet ports for network control and Dante/AES67 digital output options
• 4 x coaxial RF antenna input connectors support multiple frequency bands and provides greater coverage for complex setups
• Networked control with Shure Wireless Workbench® for extended and enhanced RF monitoring and management

*ANX4 receiver does not ship preconfigured with active wireless channels. Channel licenses are sold separately and required for operation.
**System features are dependent upon activated transmission mode: Axient Digital or ULX-D (ANX4 does not support both systems at one time).
