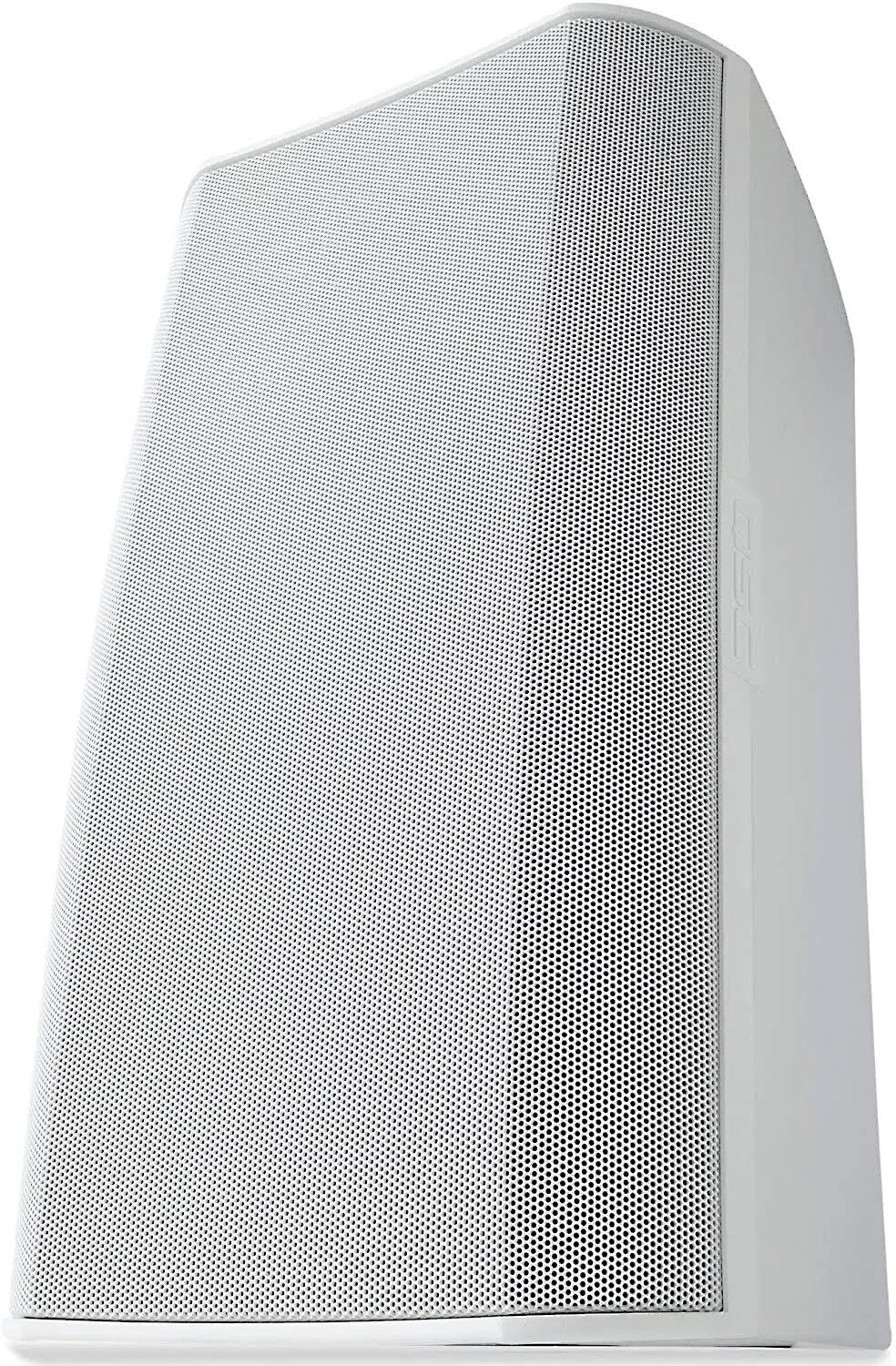

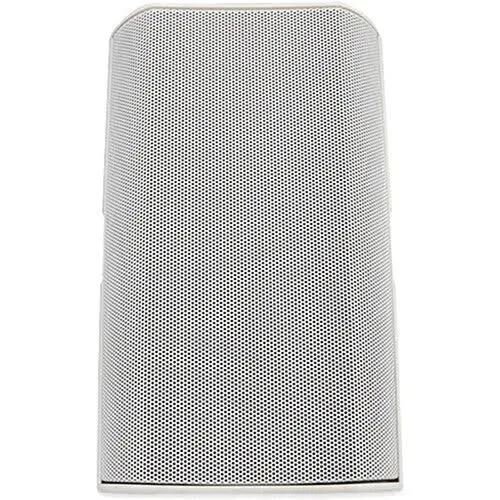

The QSC AcousticDesign™ AD-S112sw is a low impedance, surface mounted, 12” direct radiating subwoofer. An ideal companion to AcousticDesign™ full range models, the AD-S112sw allows impressive low frequency expression within a complimenting form factor, suitable of demanding foreground and background sound reinforcement applications.

Features:

• 12-inch weather treated woofer
• TFR™ (Turbulent Flow Reduction) port provides optimal resonant tuning and high velocity air flow
• Maximum peak SPL 121 dB
• Suggested filter points: 32 Hz high-pass, 24 dB/octave Butterworth; 100 Hz low-pass, 24 dB/octave Butterworth
• Included YMS12 yoke mount maximizes boundary plane coupling while reducing vibration transmission
• Optional M10 Kit-C for additional installation versatility
• Lightweight ABS enclosures offer long-term durability and lasting good looks
• Sealed input panel cover and powder coated aluminum grilles for added weather resistance
• Meets IEC60529 IP-54 for dust and splash resistance
