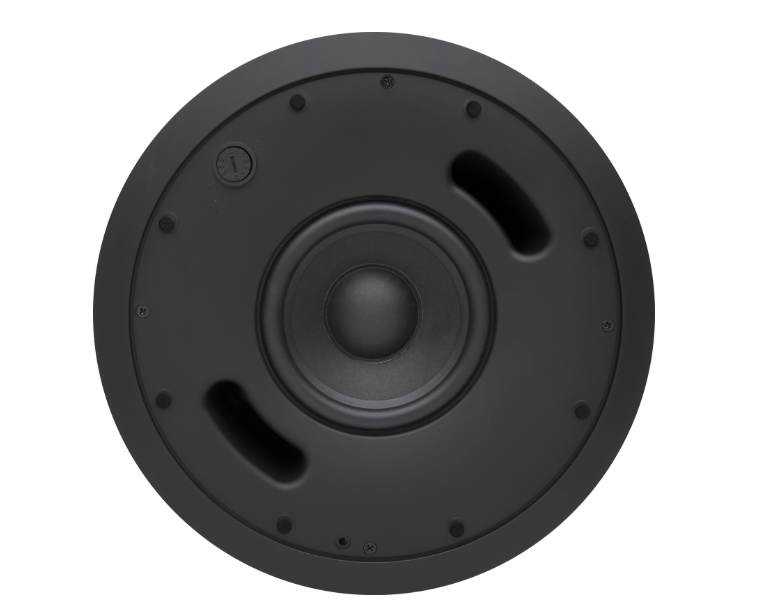

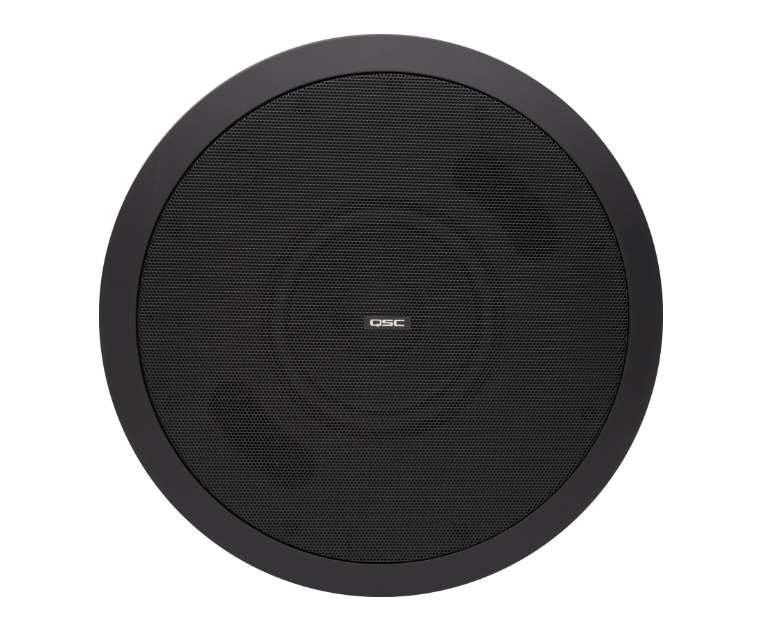

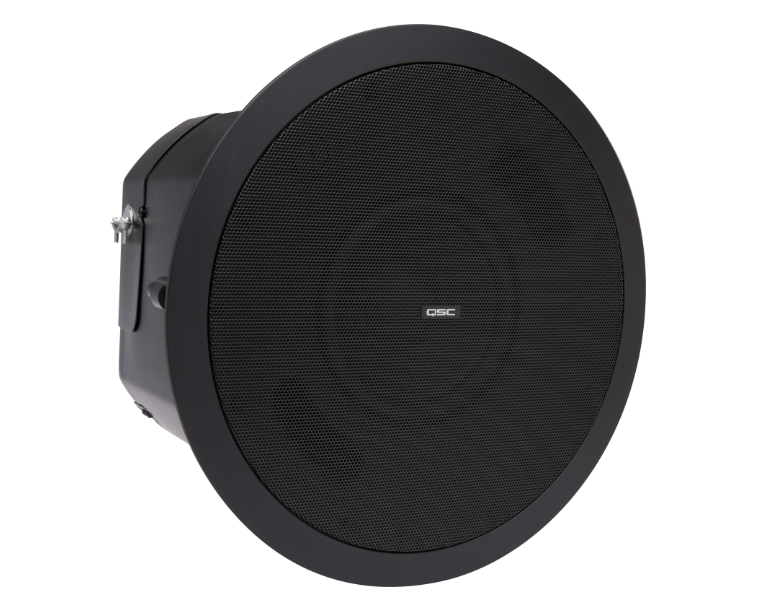

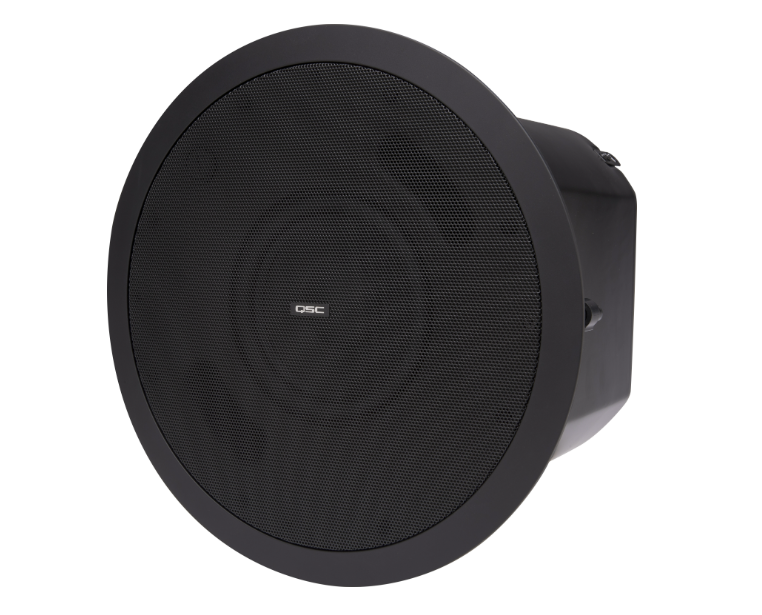

Q-SYS 6.5" Dual voice-coil ceiling subwoofer, provides High-pass output for up to four (4) satellite speakers, 70/100V transformer with 4? bypass, includes C-ring and Tile rails for blind mount installation. Color - Black. - AD-C.SUB-BK

List $500.00
MAP $500.00

The AD-C.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.

Features:

  • Dual voice-coil for improved thermal dissipation and higher output
  • Low saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
  • 4x built-in high-pass filtered outputs
  • Snap-fit magnetic grills
  • Locking 4-pole Euroblock connectors
  • Removable conduit cover plate

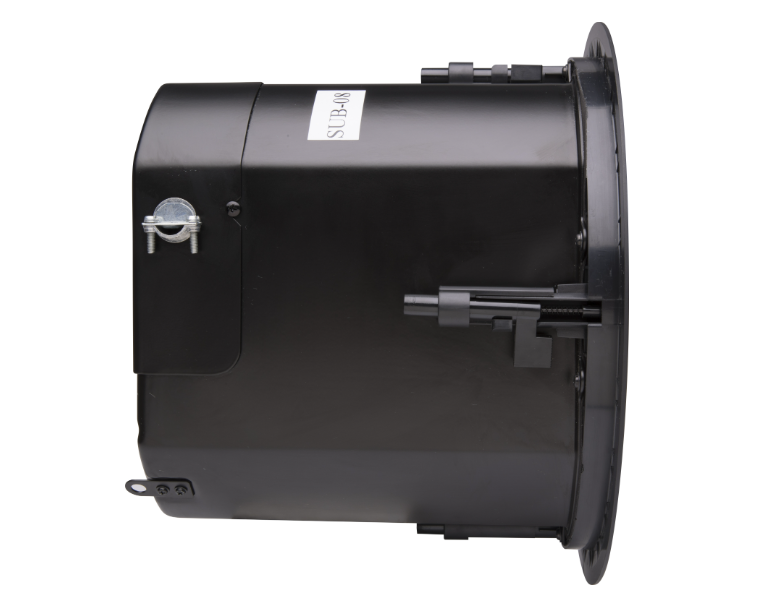

  • 4x double stepped, long travel dog-ear blind mount system
  • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform
  • Available in black (RAL 9011) or white (RAL 9010)
  • UL1480 and UL2043 certified

Certifications and Compliances
Certified for Microsoft Teams
Shipping
Harmonize code 8518.21.0000
UPC code 684284075840
Master product height 0.0
Shipping height (in.) 15.0
Master product width 0.0
Master carton quantity 1.0
Country of origin CN
Master product length 0.0
Quantity unit of measure EA
Shipping width 21.0
Shipping depth 21.0
Shipping weight 25.45
Master product weight 0.0
q_spk_ad-c_sub_specs.pdf
